SLIDER TO DECK ~1985 VINTAGE : SWISCO.com

Home Owner from BOXBORO MASS

Nov 14, 2023 12:54 pm

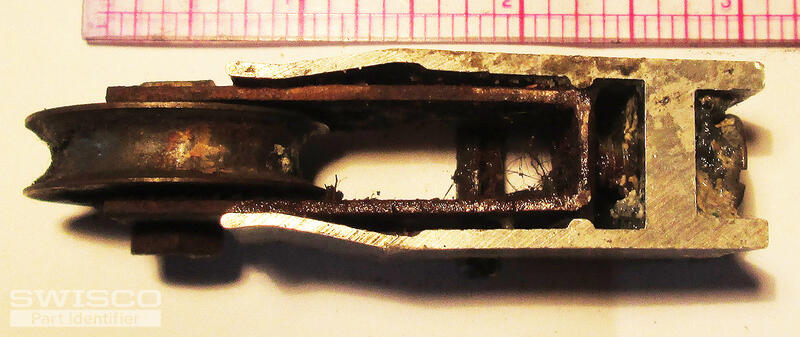

3/4 INCH WIDE

PIN STICKING THROUGH SIDES = 7/8 LONG

1 1/16 INCH TALL

1.25 INCH STEEL WHEEL DIAMETER

if you have questions please send an email or call

Thanks

4 user uploaded images

5 Replies

Casey from SWISCO

Nov 15, 2023 1:02 pm

Hello,

I don't recognize your roller at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!

Dave Sr. from SWISCO

Nov 17, 2023 8:48 am

Hello,

Unfortunately we no longer carry the full assembly that was used on Silverline Doors. However we do still carry the 81-014 inner part of the housing with the 1-1/4" wheel. Take a look at the 81-014 along with the related videos to see if you could use this part for a replacement if the outer housing is able to be reused.

Quick Learner from BOXBORO MASS

Feb 28, 2024 5:50 pm

do you know the diameter of the rivet that goes through the 81-013 roller mechanism on the silversline doors? I am going to buy some 81-014 replacement rollers, but i want to have some new rivets to install when i put the roller assembly back in the frame. I have to take it apart to clean it up and maybe retap the threaded holes.

Paul from SWISCO

Feb 29, 2024 9:20 am

I have also been able to use the 81-002 roller as a replacement in similar situations to yours. You'd need to drill a counter sink screw into the bottom rail after removing it from the glass and using the 33-103 screw for installation. Then, use the 33-117 screw to hold the frame together.

Measurement from the top hole to the end of the assembly of the 81-002.

Measurements of the 81-002 Weather Tight sliding door roller.

Our records indicate that the axle used in your roller measures 3/16" by 1-1/4". You could also bring your roller to a local hardware store to have them match you up with new rivets and installation screws if you decide to reuse your outer housing.
