MY SLIDING DOOR DOES NOT MEET THE CLOSED DOOR FRAME CORRECTLY, WITH A SMALL GAP AT THE TOP. THERE IS NO ADJUSTMENT AT THE END OF THE DOOR OPPOSITE THE LOCKING END TO ADJUST THE ATTITUDE OF THE VERTICAL MEETING.

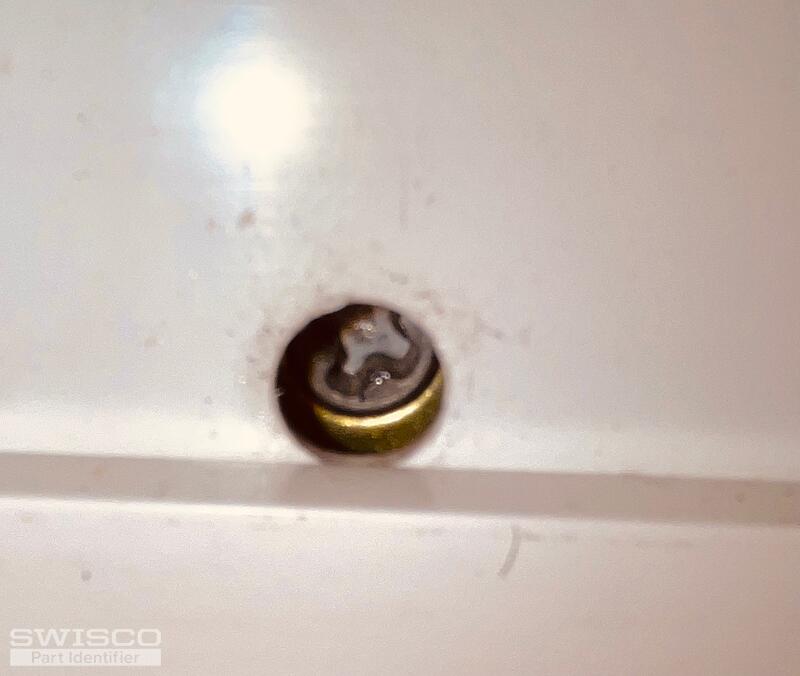

THERE ARE TWO COVERED OPENINGS AT THE BOTTOM OF THE DOOR ON EITHER END THAT I ASSUME WILL ADJUST THE HEIGHT AT EACH END, ALLOWING FOR THE ADJUSTMENT I DESIRE, BUT I DO NOT HAVE A TOOL THAT FITS THE FIXTURE EXPOSED WHEN THE COVERS ARE REMOVED. THE LABEL AT THE TOP OF THE DOOR IS PARTIALLY TORN, IT LOOKS LIKE A SERIES 8670 AAMA/NWWDA/101 (CANNOT READ) SGD-R20-120X82. HERE IS THE BEST PHOTO I COULD GET, IS THERE A TOOL TO ADJUST THE DOOR ATTITUDE?
SLIDING DOOR ADJUSTMENT
Handy Person from PLEASANT HILL, CALIFORNIA
Oct 28, 2021 8:10 pm
1 user uploaded image
2 Replies
Dave Sr. from SWISCO
Nov 3, 2021 9:42 am
Hello there. This could be a special type of adjustments screw. Looks kind of like a "reverse" Philips type screw, where the Philips shape head sticks up from the screw head. I wondering if the door came with some type of special wrench to adjust the Patio rollers. You say you don't know the manufacture of the door. I see you have the Architectural code number. We will have to see if we can identify the manufacture. Check the door to see if there are any other labels on the door or if there is a code number etched into the glass at the corners.
