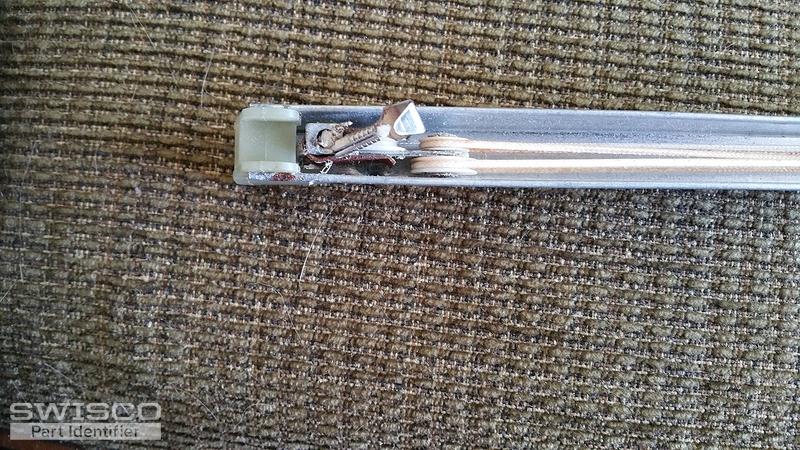

Need replacement balances for 27 lbs IWC double pane sach window.
Metal part is 33 inches long
5/8 inches wide outside, with hemmed metal
1/2 inch wide inside
Top plastic piece is 1 3/4 inches with 1 inch inside the metal channel, 3/4 inch outside
9/16 inch wide, drops to 1/2 inch for 1/2 inch down to 3/32. With 2 outside guide railsg feet
Bottom plastic piece is 1 inch long, 1 1/8 och wide 1/2 inch wide inside, 5/8 inch outside with screw adjustment.
Sach pully & tackle balance 32 3 HW CMC 7
Home Owner from Honolulu
Jan 4, 2021 5:41 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Jan 6, 2021 10:25 am
Hello, thanks for posting! It looks like you could have either our S351-33 or S390-33 with the 3230 stamp option. The difference between the Series 351 and Series 390 lies in the depth of the shoe. Take a look at the picture below for more detail. Once you have determined this dimension you should be able to select the appropriate balance.
Comparison of the S351 and S390 balance shoes.
