Sash Balances

Quick Learner from Palm City, Florida

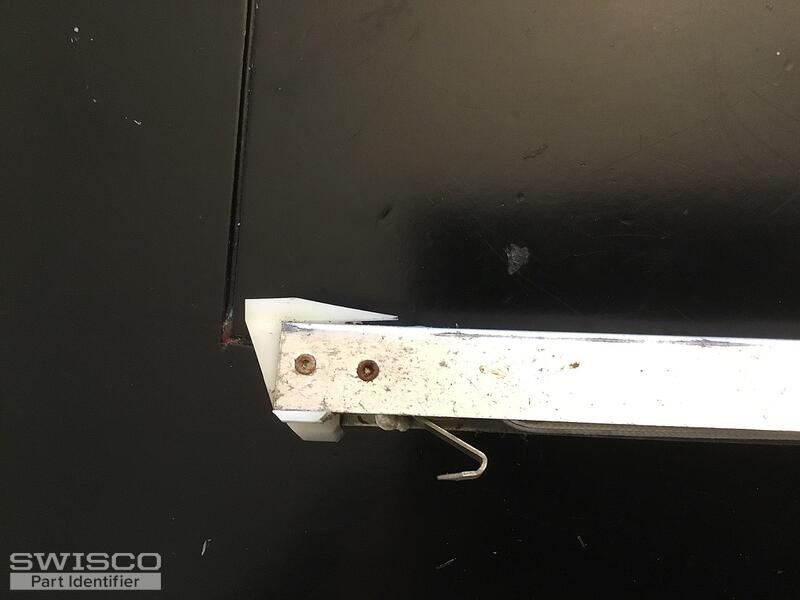

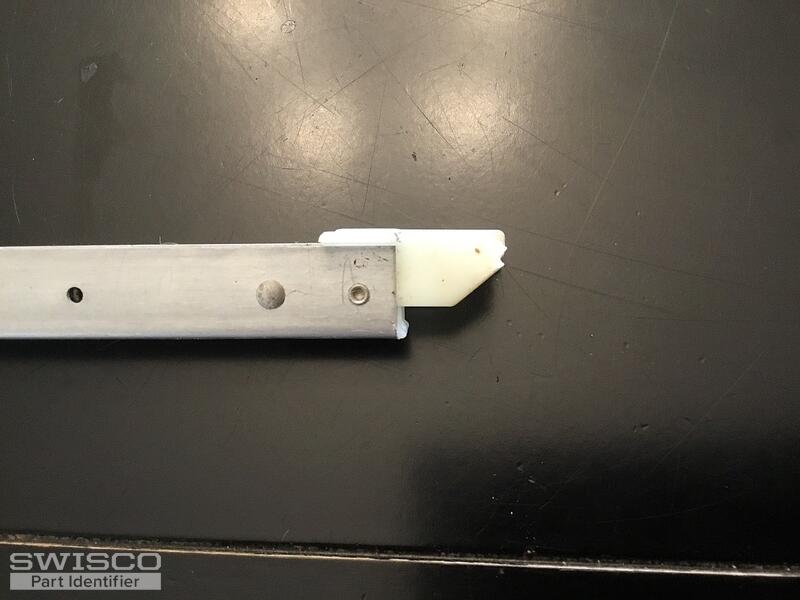

I'm looking for a balance replacement. This balance measures 23 inches long (metal only, end to end). It has the number 2230 stamped on it. The plastic at the top extends out about 3/4 of an inch. The metal frame is approximately 9/16 wide and 5/8 deep.
5 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

At first glance, our Series 380 or Series 385 looks to be a good match. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe as shown below. However, your shoe resembles the 15-029 which is 7/8" deep. Can you measure yours and tell us what you find?

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Palm City, Florida
You're correct. The shoe depth is 7/8".
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for confirming! We don't have a stock Series that uses the 15-029 shoe but we can still help via custom order. We'll take a 23" long metal channel with the 2230 stamp and attach the 19-005 winged top and 15-029 bottom shoe to replicate what you show here.

I'll go ahead and email you a purchase link and price quote for (2) of these balances that you can use to place an order on our website. Let me know if you have any questions!

Quick Learner from Palm City, Florida
Hi Emily,

Thanks for your help. I'm going to add some additional items to your quote and place an order. Also, I have 8 more windows of various sizes that I plan to renovate and will be placing more orders in the future. I'll keep in mind the 7/8" shoe size when I do order. Thanks again.

Kevin

Emily
Emily from SWISCO
SWISCO
Expert

No problem! I'm glad I could help. I'll be here if you need anything else; good luck with the repair!

Quick Learner from Palm City, Florida
Hi Emily,

I want to order six more balances like the ones above, (23", 2230 stamp, 15-029 bottom shoe, 19-005 winged top). The previous order number was 2280442. Would you please put them in my cart. I don't know how to order them since they're custom. Thanks.

Kevin

Emily
Emily from SWISCO
SWISCO
Expert

Hey there Kevin. I'll go and email you a purchase link for (6) balances that you can use to place an order on our website!
