Sash Balances Needed

A quick learner from Charleston sc says:

October 13, 2021

I need a pair of window sash balances. They are 27" long. I have attached photos of the bottom (front and back), top ( front and back) and stamp on balance. Please help me match up replacements.

Thumbnail of the uploaded file named 20211013_150733.jpg

Thumbnail of the uploaded file named 20211013_150759.jpg

Thumbnail of the uploaded file named 20211013_150740.jpg

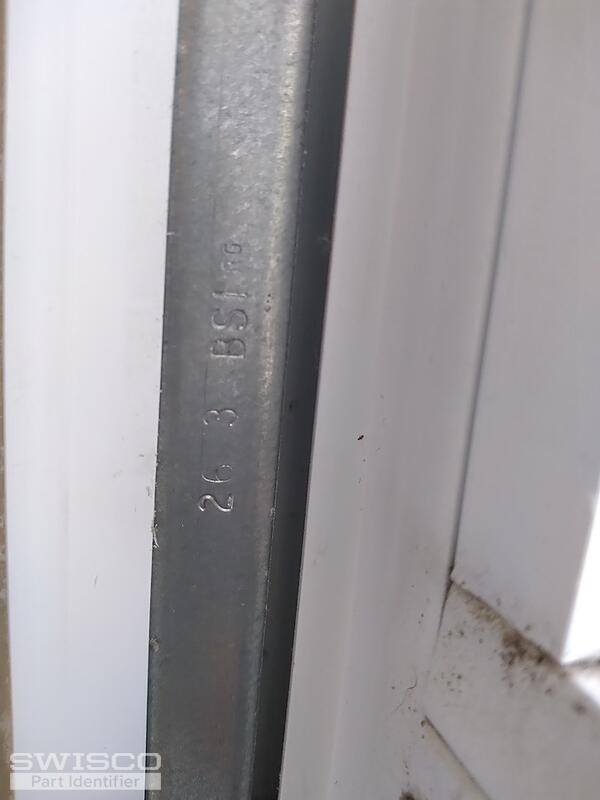

Thumbnail of the uploaded file named 20211012_092200.jpg

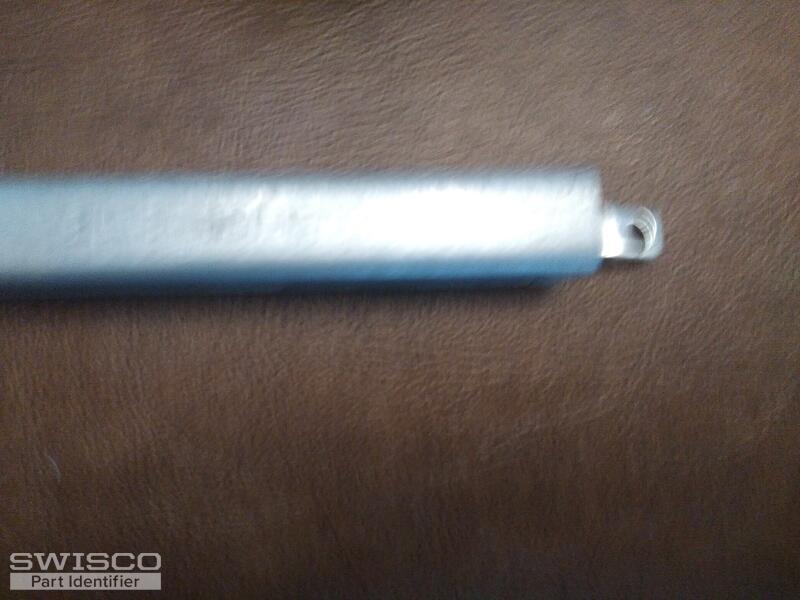

Thumbnail of the uploaded file named 20211013_150755.jpg

Lauren from SWISCO responded:

October 20, 2021

Hello, thank you for posting!

Your balance resembles our S795-27 channel balance with a 15-195B shoe attachment. You will need to purchase 15-195B separately and swap out the shoe as shown in the video below. The stamp option needed will be 27C. Please let me know if you have any questions.

27" Series 795 Channel Balance

S795-27

$13.61

1-1/4" T-Lock Balance Shoe, Open Cam

15-195B

$1.97
