Now I need sash cam replacements (First it was window balances, then takeout clips, now this. One day I will have a functional window).
Please let me know if you have the following sash cam or anything close that can be modified:
Length (Top to bottom): 1.50 inch
Width: 5/8 inch

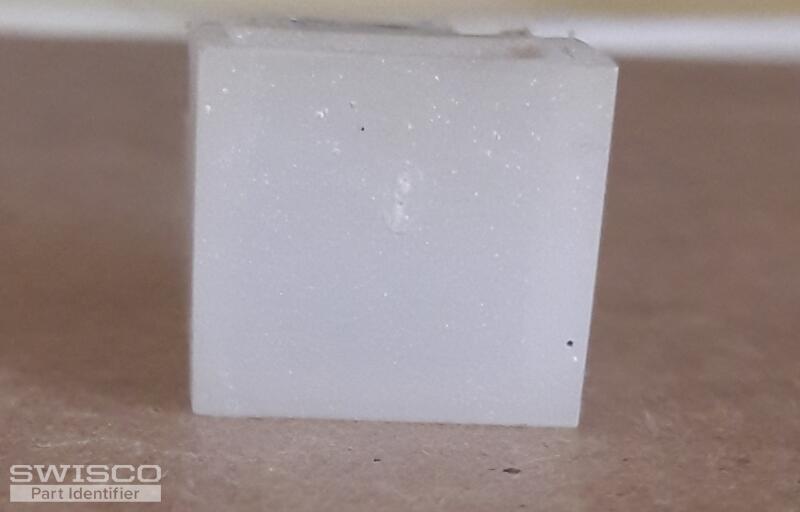

Depth (On top) 5/8 inch
Distance from center of screw hole to the top: 7/8 inch
I need two but would probably order extra depending on price and shipping cost.
Thanks,
Preben

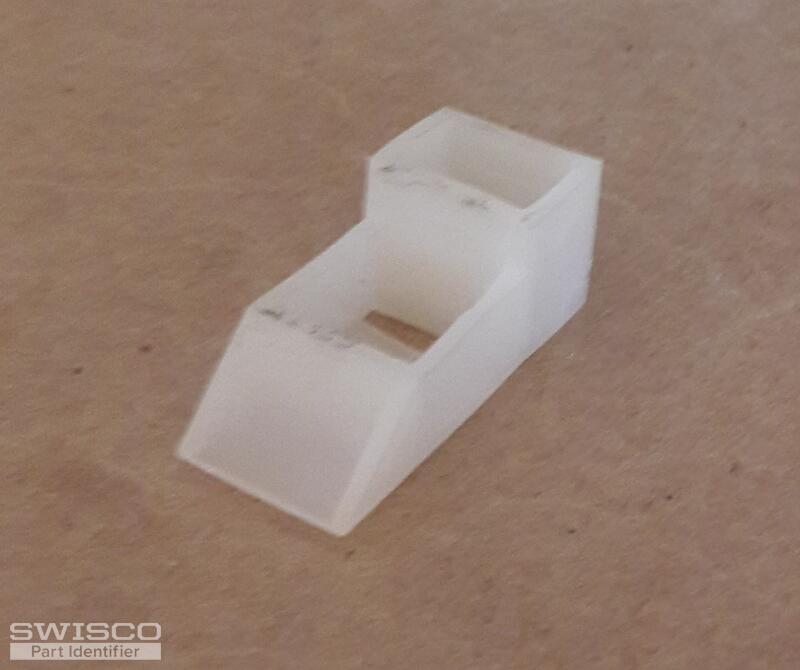

Sash Cam
Quick Learner from Irvine, California
Oct 20, 2022 6:14 pm
5 user uploaded images
2 Replies
Tom from SWISCO
Oct 26, 2022 9:57 am
Hello, Preben. This top sash guide looks like the old Milgard brand part. These are no longer made, but I believe that you can use our 18-009 as an alternative. The catch is that you have to trim down the top edge so that it's flush with the body. Look it over and see what you think.
Detail of 18-009
Side view of 18-009
