Sash Cam Replacement

A quick learner from Nashville TN says:

Looking for a pair of left and right sash cams.

Either need the exact pieces or ones that will work. Please see the enclosed photos and the dimensions below.

Length of the section with the screw hole: 15/16 in.

Width of section with screw hole: 5/16 in.

Thickness of section with screw hole: At the hole is 1/8 in.

At the sloped point is 1/4 in.

The top end that faces upward when mounted in the window sash is not a simple rectangle.

If the top end was a simple rectangle, it would be 5/8 x 1/2 in. But there's a cut-out of 1/8 x 5/16 in.

If you need any further information, please let me know. So far, I don't have the window manufacturer.

I just ordered two of your window balances, series 351 2830 for the same window. I'd like to avoid ordering custom made sash cams in order to save cost.

Again, looking for two sash cams, one left and one right.

Appreciate it.

Tim

Thumbnail of the uploaded file named IMG_20230405_220057156.jpg
Thumbnail of the uploaded file named IMG_20230405_220423559_HDR.jpg
Thumbnail of the uploaded file named IMG_20230405_222450363.jpg

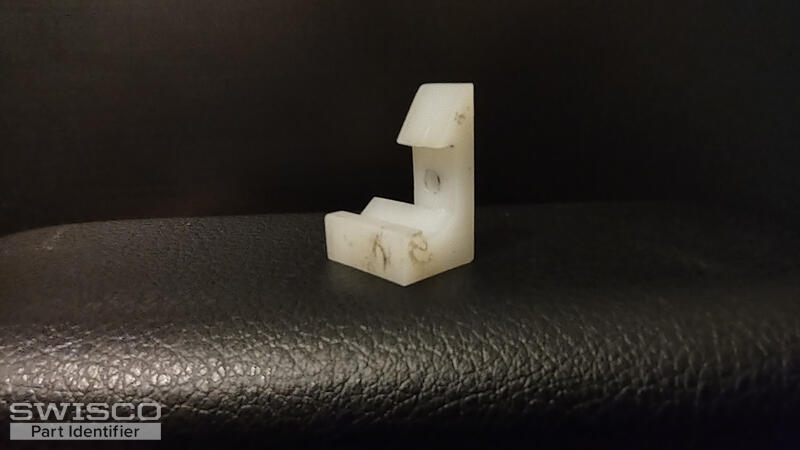

Thumbnail of the uploaded file named IMG_20230405_225153020_HDR.jpg

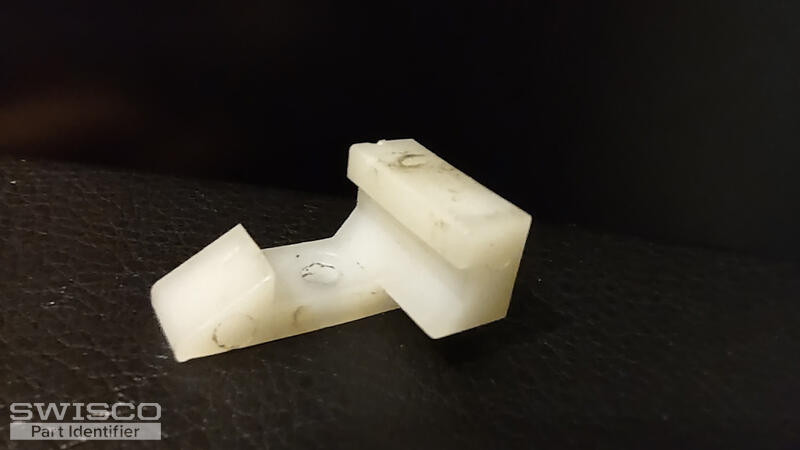

Thumbnail of the uploaded file named IMG_20230405_230035744.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for reaching out! Your top sash guide looks a lot like an older version of our 18-066Look over the dimensions and compare them to your existing hardware to confirm that this will be a fit. Your older version is no longer made but I am confident these guides will work fine as a replacement.

Front view of 18-066
Front view of 18-066

Side view of 18-066
Side view of 18-066

A quick learner from Nashville TN says:
Your replacement sash cam worked perfectly even though my old sash cam was no longer available. No alteration needed. Thank you!
