Sash Controls Canton 2265 lock mechanism

A contractor from Haddon Township, NJ says:
March 8, 2023
Hello Swisco, I am looking for the lock and handle mechanism for a sliding patio door. Sash Controls Canton SD 2265 is on the inside of the handle. I am unable to remove the lock from the door without enlarging the mortise reveal for the lock. The Lock mechanism has two latches. The lock mechanism is approximately 9 inches tall. The handle screws that pass through the lock are 4" on center. I can send pictures but do not know how to attach them here. Thank You.
A contractor from Haddon Township, NJ says:
March 8, 2023
Thumbnail of the uploaded file named IMG_5276.JPG

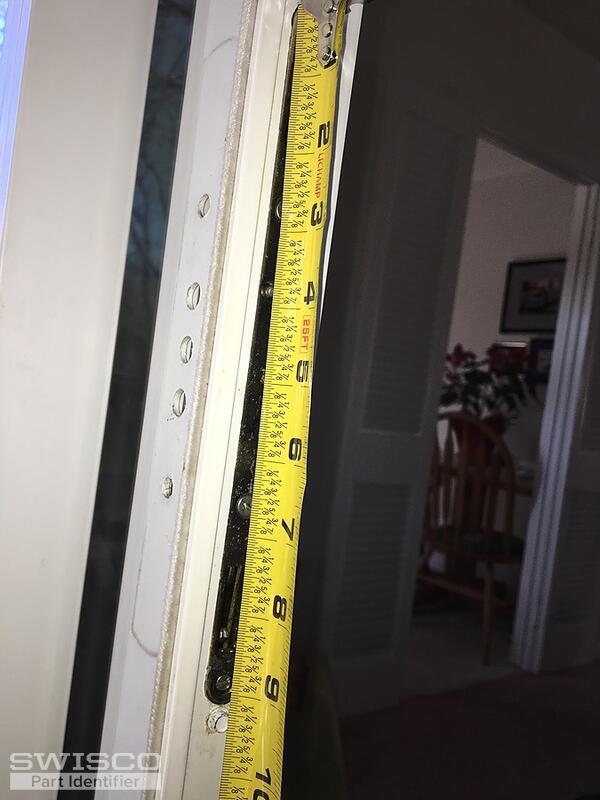

Thumbnail of the uploaded file named IMG_5275.JPG

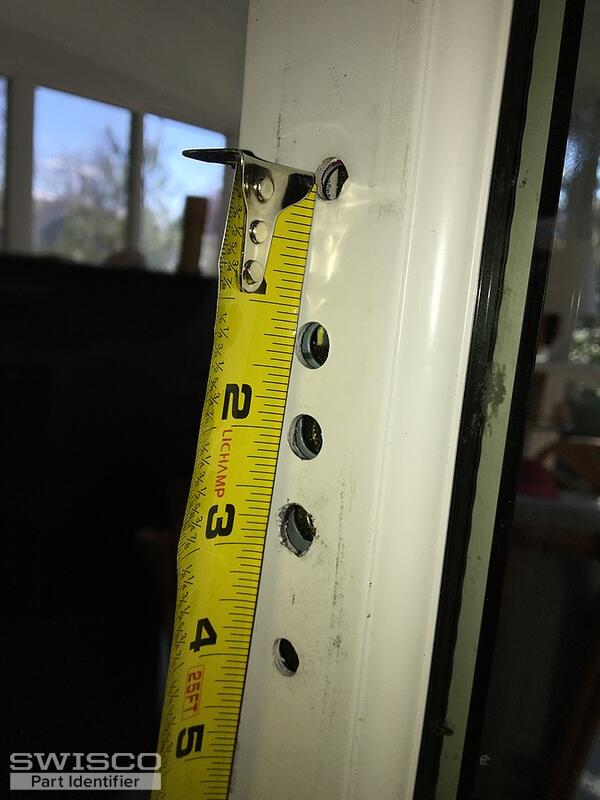

Thumbnail of the uploaded file named IMG_5274.JPG
Thumbnail of the uploaded file named IMG_5265.JPG
Profile picture of Lauren
Lauren from SWISCO responded:
March 8, 2023

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 82-239 mortise lock to see how it compares to the original.

Alternate image for 82-239
Alternate image for 82-239

For the handle set, take a look at the 82-086 that has a 3-15/16" installation hole spacing from center to center. Please note that this handle set has an offset locking thumb lever. I cannot confirm this from your pictures. This handle set is available in additional finishes under product code 82-087.

We also carry non-keyed versions of this style that I have related on the page for you.

If your handle set has a centered thumb latch, review the 82-030 instead.

Let us know if you have any additional questions!
Multi-Point Mortise Lock and Keeper, 9-7/8"
Multi-Point Mortise Lock and Keeper, 9-7/8"
82-239
$41.70
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-086
$49.70
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-087
$112.27
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
Legacy Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-089
$41.57
Legacy Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-090
$93.42
