Sash Guide

Home Owner from Wellington, Fl

Apr 1, 2015 1:23 pm

Please help me find the correct sash guide per the dimensions and photos furnished. The channel balance that it mates to is a 2630 or 2620 - 1/2" wide.

Barry

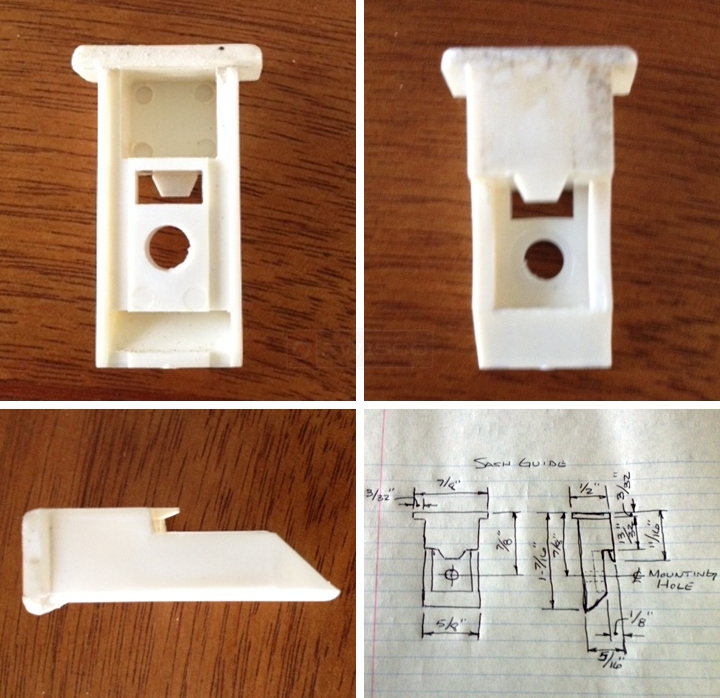

User submitted photos of a top sash guide.

4 Replies

Paul from SWISCO

Apr 2, 2015 12:47 pm

Please see our 18-166 and let me know if this is a possible match.

Quick Learner from Wellington, Fl

Apr 2, 2015 5:24 pm

This looks like a match. Now for the channel balance. It appears like the series 380 with a 19-005 top and 15-005 shoe is right for my windows. However, the stamp on my balances indicates 2630. So when I choose the 26" length on the web site it asks if I want the 2530 option. Should I be selecting it for a 2630 balance?

Tom from SWISCO

Apr 3, 2015 9:22 am

No, if your stamp reads 2630 then you should have a 27" long balance. You need to measure the metal channel to confirm what size you have. That is the only way to be certain.
