Hi All:
Looking to replace these sash locks. They have take a beating from the elements. Thank you so much in advance for the help.

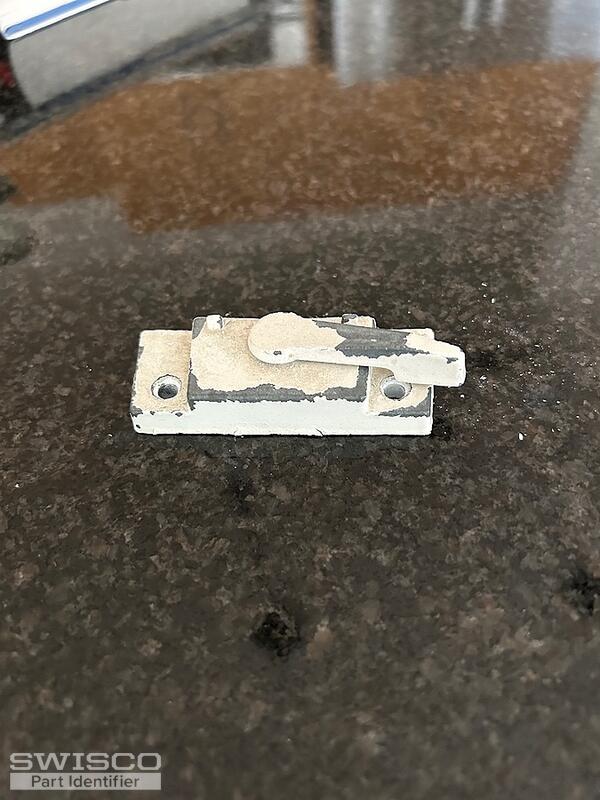

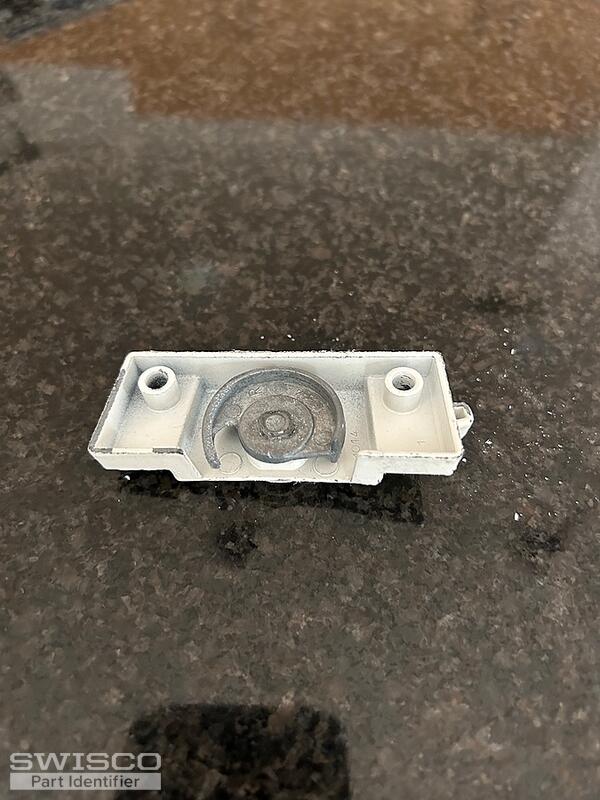

Sash Lock All I see Marked is 1014
Quick Learner from Carlsbad, CA
Aug 19, 2023 6:15 pm
5 user uploaded images
12 Replies
Bob from SWISCO
Aug 20, 2023 1:28 am
Thanks for posting. I'm confident we can help, but I need a little more information. Can you tell me the distance between the center of each mounting hole? That will help a ton in narrowing down your options. Many thanks.
Quick Learner from Carlsbad, CA
Aug 21, 2023 12:02 pm
Thank you so much for the help. The center holes of the mounting screws are about 2 3/32 apart. We bought some sash locks on Amazon where the center holes were 2.08 inches apart and it fit but the hook did not reach the keeper. I think my keeper is an odd type. Hope that helps and appreciate your help greatly.
Bob from SWISCO
Aug 21, 2023 3:24 pm
We unfortunately don't sell any lock with a 2-3/32" hole spacing. The closest option we can offer is 2-1/16"; specifically our 90-278. This may very well be our best option for you.
Dimensions for 90-278
Quick Learner from Carlsbad, CA
Aug 21, 2023 3:45 pm
Thank you so much. I bought 5 of these crossing my fingers they work. If for some reason they don't can I contact you again on this forum? Appreciate your help.
Bob from SWISCO
Aug 22, 2023 10:02 am
Of course! You can post right here to this page and it will be added back to my queue. You can also review our return policy here.
Quick Learner from Carlsbad, CA
Aug 22, 2023 11:09 am
This is a great service, so appreciative for your help. I'll be in touch.
Bob from SWISCO
Aug 22, 2023 12:54 pm
We appreciate you saying so! Thanks again for the order and please feel free to reach out if you had any other questions.
Quick Learner from Carlsbad, CA
Aug 29, 2023 1:22 pm
Thank you so much for your help. The sash locks work great. The keepers did not work unfortunately. They are the exact same shape as my current keepers but I think the screw holes are in the wrong spot. Are there any other options for the keppers? Look forward to hearing from you and please let me know if I can provide any photos or additional information. All the best.
Tom from SWISCO
Aug 31, 2023 8:34 am
Hello! Bob isn't here today, but I will do my best to help you.
Based on what you're describing, it sounds like you're saying your old keeper had face-mount screws rather than screws that mount from the top-down. Your original batch of photos verified that for me.
With that in mind, our 90-282 might be a better option for you. This is a fairly common face-mount keeper and should be fully compatible with the 90-278 that Bob recommended. I recommend just checking to ensure that the thickness is the same; our keeper is 5/16" thick.
The hole spacing is another concern, but the 90-282 has oblong holes so there's a lot more wiggle room. I don't anticipate that being an issue but it can't hurt to check just to be sure.
Dimensions for 90-282
Alternate view of 90-282
Quick Learner from Carlsbad, CA
Aug 31, 2023 9:13 am
I think that will work. Thank you. Is there any way to order the sash lock without the keeper for 90-278? Also what is the part number for the mounting screws. I'd like to use new ones. Appreciate the guidance.
Tom from SWISCO
Aug 31, 2023 3:30 pm
I'm afraid that the 90-278 only comes as a kit with the keeper included. The lock itself isn't sold individually.
As for screws, you want a #8 flathead screw for the lock and a #6 screw for the keeper. Length is tougher to predict; if you happen to have one of the old screws on hand, I suggest using one of those as a reference.
