Sash Pivot replacements

A handy person from Cloverdale, CA says:

November 1, 2022

Hi,

I was hoping you could help identify this double hung window manufacturer, hoping to get some replacement Sash Pivot pieces. Included other parts from same window that might help identify the manufacture. The Sash Pivot rough dimensions as follows:

W 3/8"
H 1 7/16"
D 1/8"
Pin Height 5/8"

Two screw holes above Pin

I know I have some Marvin windows, but the sash locks are different and easily identified. This window has no labels/stickers/stamps, and none of the hardware appears to have any IDs either even though they look pretty unique. Checked the frame and all four sides of the sash and nothing. Any help would be greatly appreciated.

Thanks

Thumbnail of the uploaded file named IMG_0714.jpg

Thumbnail of the uploaded file named IMG_0718.jpg

Thumbnail of the uploaded file named IMG_0717.jpg

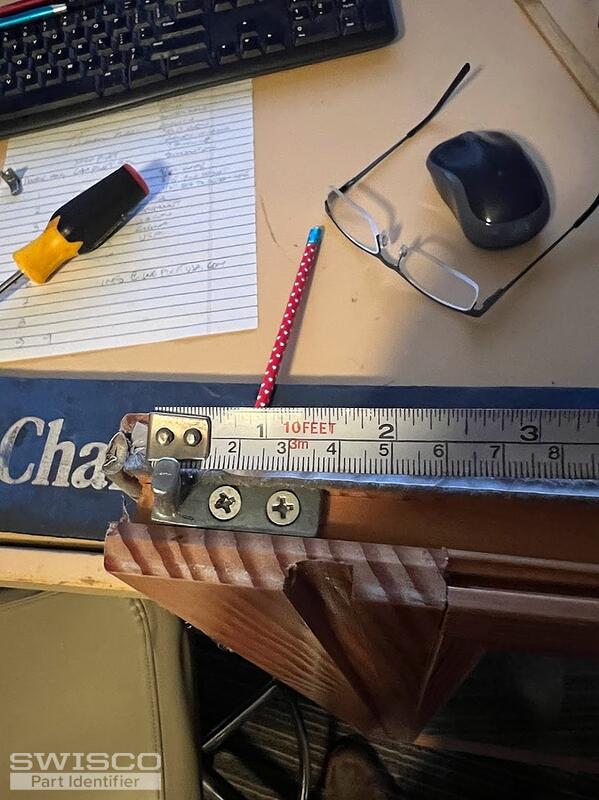

Thumbnail of the uploaded file named IMG_0721.jpg

Casey from SWISCO responded:

November 4, 2022

Hello,

Unfortunately, we do not carry an exact match for your tilt pin but the 26-402 is similar. Take a look and see if the specifications could work for your repair.

If you need new sash locks as well, please write out the exact distance between the center of the installation holes and we can go from there. Thank you!

Alternate image for 26-402

Alternate view of 26-402

Side Mount Pivot Bar

26-402

$1.38
