Sash Shoe for GreatLakes/PlyGem windows

A home owner from Exton PA says:
March 12, 2023

Hello,

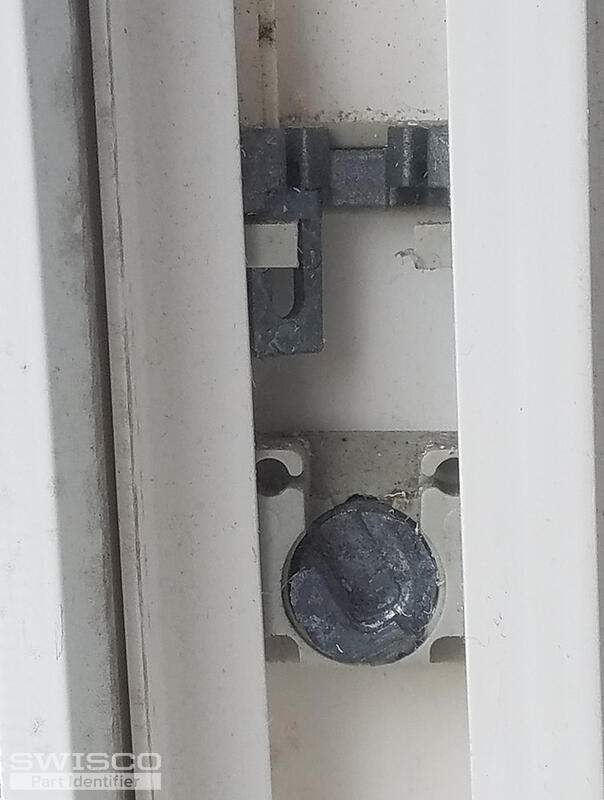

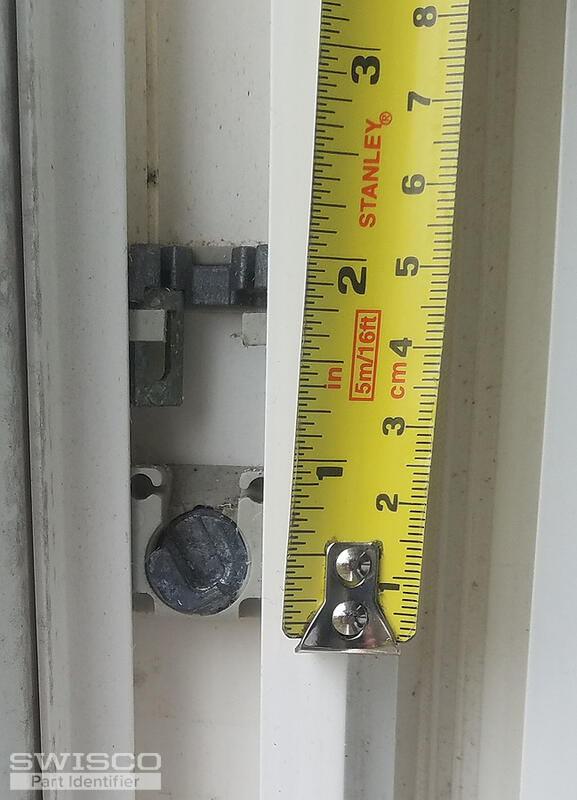

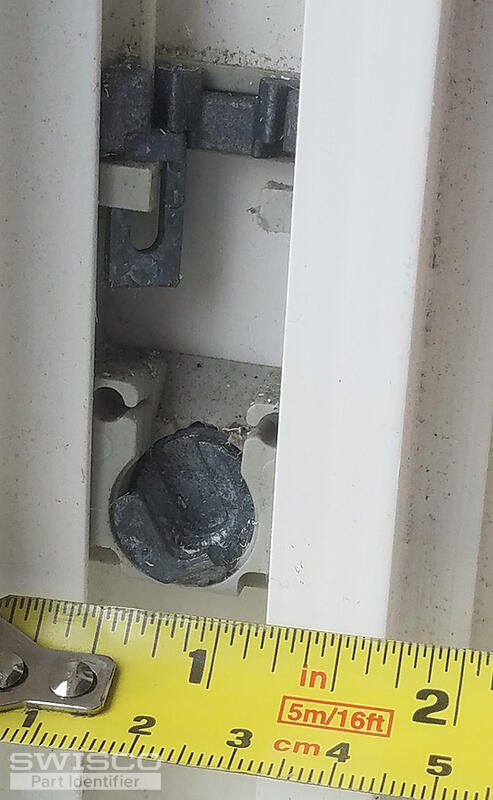

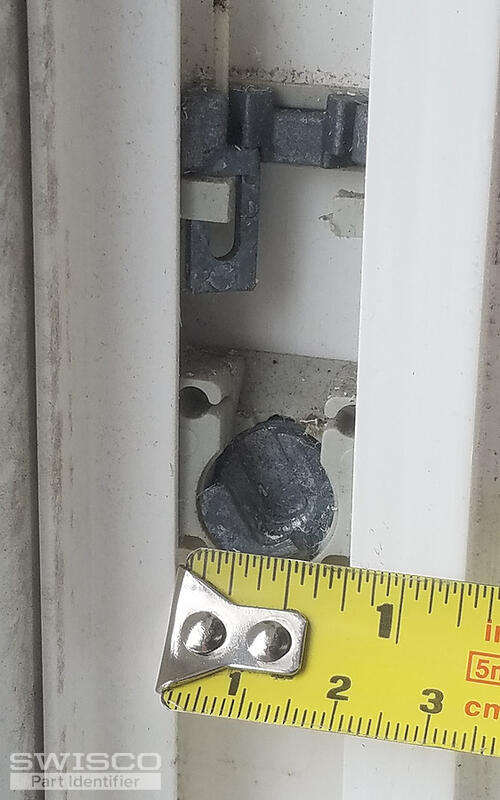

I am looking for a replacement for a broken sash shoe. The window was manufactured by GreatLakes/PlyGem about 15 years ago. Can you help me identifying the correct part.

Thanks!

Stefan

Thumbnail of the uploaded file named SashShoe4.jpg
Thumbnail of the uploaded file named SashShoe1.jpg
Thumbnail of the uploaded file named SashShoe2.jpg
Thumbnail of the uploaded file named SashShoe3.jpg
Profile picture of Emily
Emily from SWISCO responded:
March 13, 2023

Hi, Stefan.

We sure can. It looks like you have the 15-178 or 15-188 depending on your pivot shoe's dimensions. You'll need to compare them with these parts to determine which is the best match.

Dimensions for 15-178
Dimensions for 15-178

Alternate image for 15-188
Alternate image for 15-188
Pivot Lock Shoe, Brown Brake Pad
Pivot Lock Shoe, Brown Brake Pad
15-178
$3.70
Pivot Lock Shoe, 1/2" Thick, Blue Break
Pivot Lock Shoe, 1/2" Thick, Blue Break
15-188
$3.70
