Sash Spring

A home owner from Tennesse says:
May 7, 2021

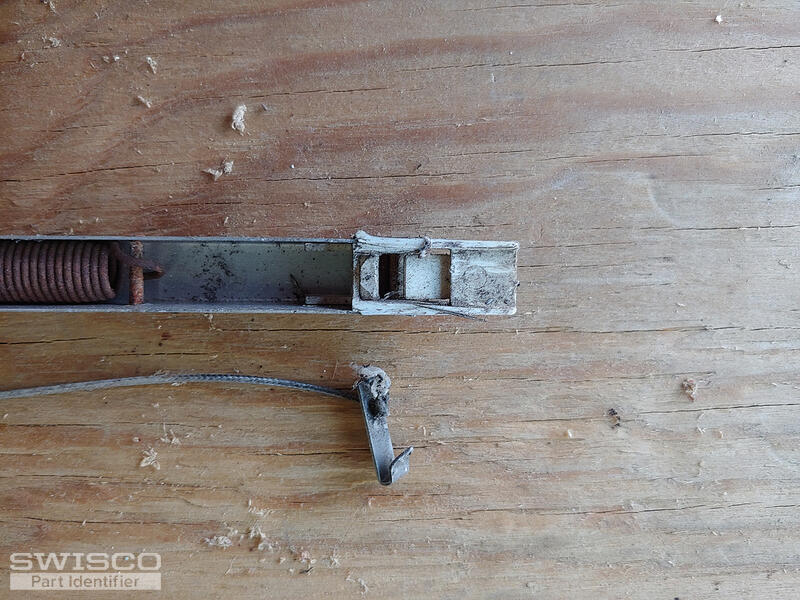

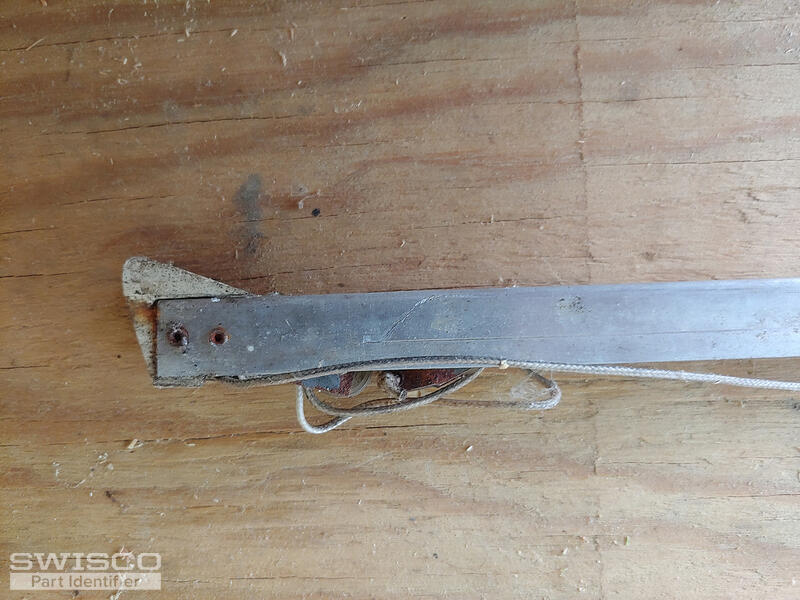

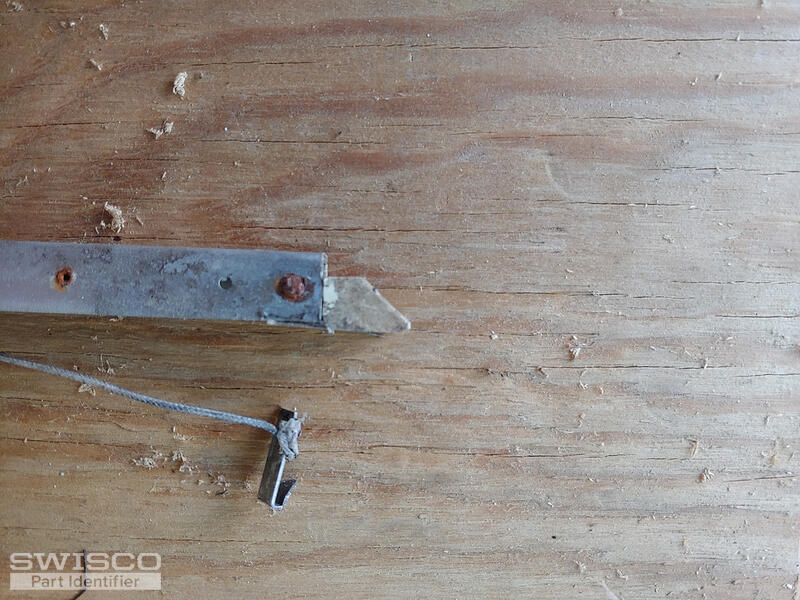

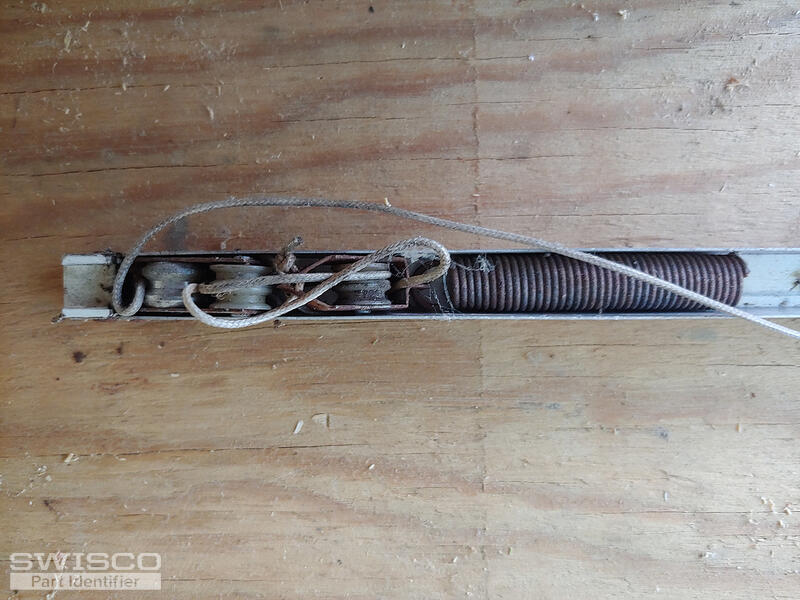

Metal Channel
16 inches long
1/2 inch wide
5/8 deep

Bottom Shoe 1 inch

1540 stamped on front

I thought S351-16 as replacement please verify.
Thumbnail of the uploaded file named 0507211323a.jpg
Thumbnail of the uploaded file named 0507211323.jpg
Thumbnail of the uploaded file named 0507211322a.jpg
Thumbnail of the uploaded file named 0507211322.jpg
Profile picture of Casey
Casey from SWISCO responded:
May 11, 2021

Hello,

As long as your bottom attachment measures exactly 1" deep, I agree that the S351-16 channel balance would be the correct replacement. You'll also need a 1540 strength option for your new balances. Thank you!
