Hello there! I have one side of a double hung sash with a busted balance assembly. The window sash is 22.9 lbs in weight.
The balance has the following printed on it: 26 4 KV CMC 9

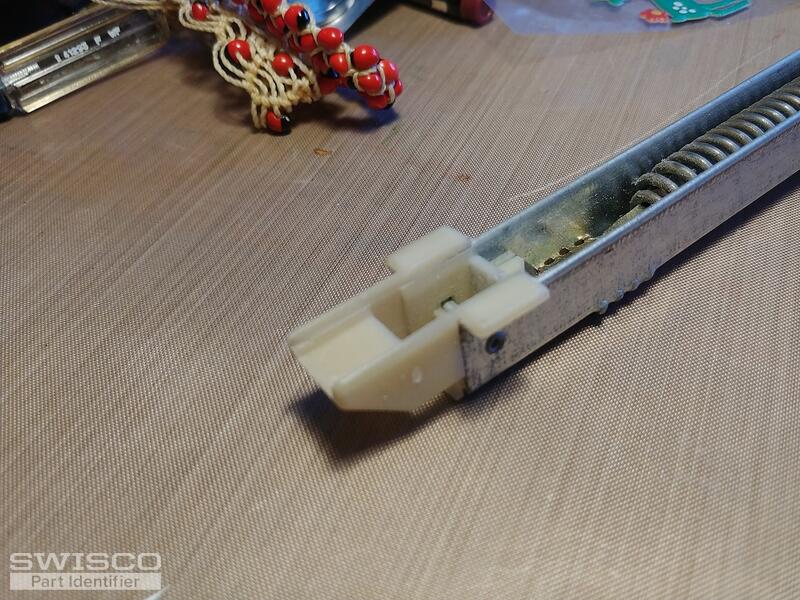

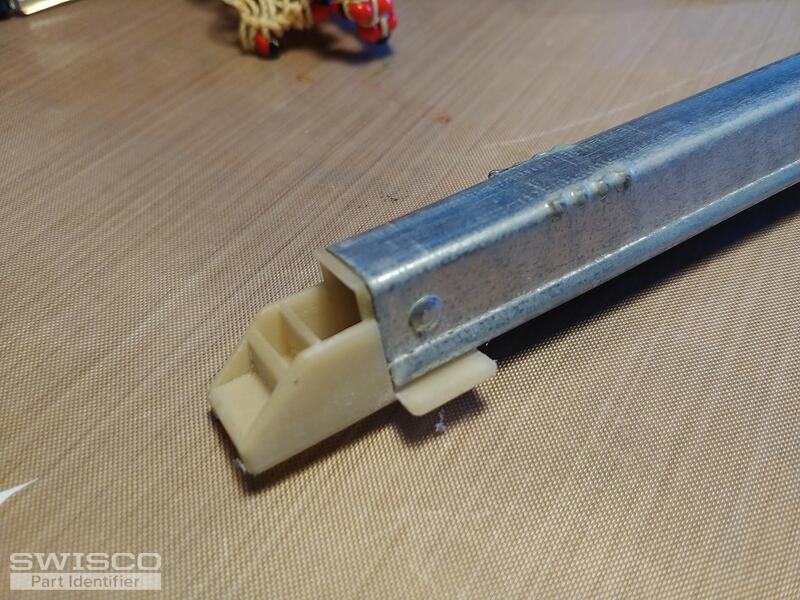

Pictures attached!
PS- Is it recommended to but these in pairs, or can I just replace the broken one?
Thanks in advance for the help.
-Curtis
Sash Window Channel Balance Identification/Replacement
Handy Person from Monroe, WA
Jul 8, 2018 2:46 pm
5 user uploaded images
3 Replies
Tom from SWISCO
Jul 10, 2018 11:53 am
Hey, Curtis. Always change balances on both sides.
I think this is S385-27, but please verify. You should have the 1-3/32" bottom shoe shown below. If not, let me know. "2640" is the stamp option you'll want to choose.
Alternate view of 15-004
Handy Person from Monroe, WA
Jul 10, 2018 11:35 pm
Yes, that's correct! Thanks for the quick and knowledgeable reply. Ordering now.
