Sash balance

Handy Person from Torrance
Mar 19, 2024 2:37 pm

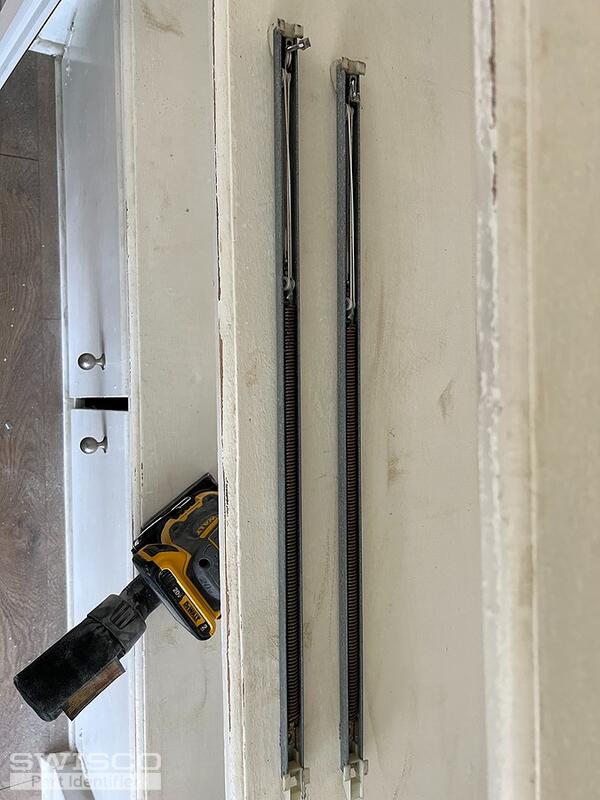

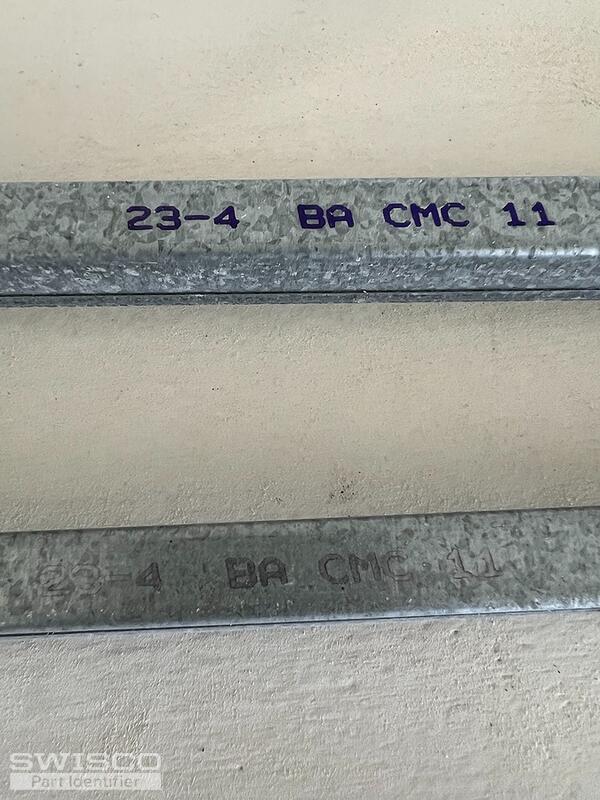

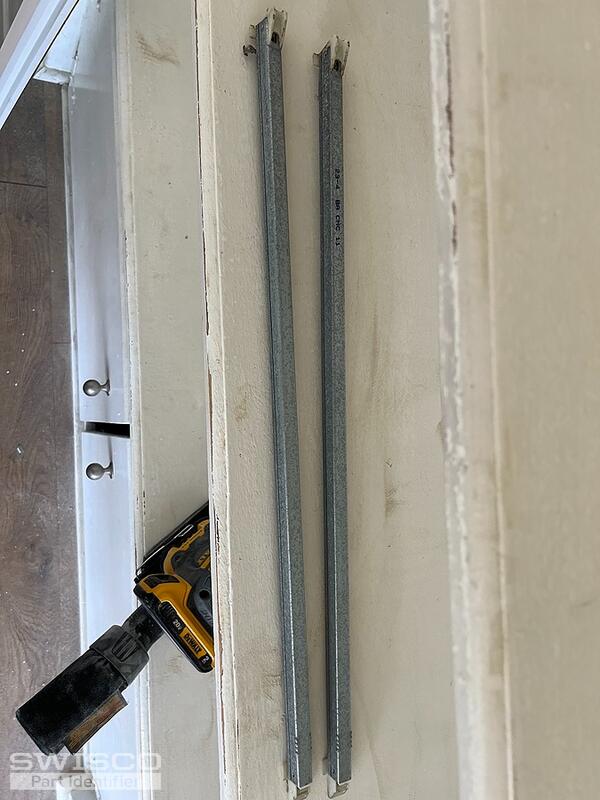

I've attached pictures, can you help me identify the sash needed for the window please? The stamp on the current ones is: 23-4 BA CMC 11. Thank you!
73248250285__0A8B8342-6333-4B34-96EA-502BD491A0AD. IMG_1440 IMG_1441 IMG_1442
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Mar 20, 2024 9:36 am
SWISCO
EXPERT

Hello,

With this combination of attachments, you could have either the S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2340 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
