Sash balance, channel, #29 5 fw cmc 10

Quick Learner from Polk County, FL

Dec 20, 2010 10:27 am

I have a Nu Air non tilt window, single hung that has a damaged
channel sash balance.
The damaged part has the following ID Number: #29 5 fw cmc 10

Can you help me identify and order the correct replacement part?

5 Replies

Tom from SWISCO

Dec 20, 2010 2:54 pm

Please send us photos of the damaged sash balance. Please make sure you include measurements and any other markings you find on the balance.

Home Owner from Polk County, FL

Dec 20, 2010 3:20 pm

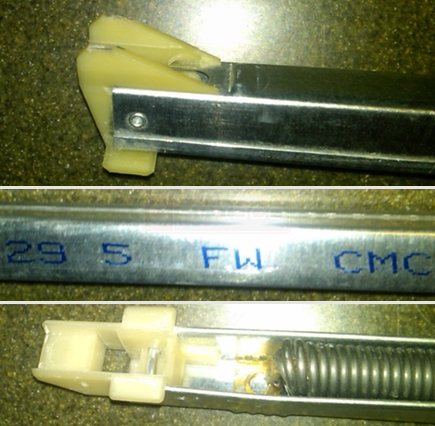

Thanks for your reply to my message. FYI, there were no other markings on the sash balance other than:
"29 5 fw cmc 10." The balance is 29" long and the channel is .5 inch wide.

Mike I hope this helps you figure out the part number. Thanks in advance. Bill

Casey from SWISCO

Dec 29, 2010 10:43 am

Our S385 balance has the attachments: 19-005 top and 15-004 shoe. We have a channel balance with stamp 2950, the equivalent to 29 5, however it measures 30" in length excluding fittings, not 29" as suggested. Please check the length again and then see our series 385 replacement balance.

Home Owner from Polk County, FL

Dec 29, 2010 11:05 am

Great, I will get back to you ASAP. Thank you.
