Sash balance and Pivot Lock Shoes

A quick learner from Poughkeepsie, NY says:

The first photo is Pivot Lock Shoes for the double hung window.

The second photo is sash balance: the length of the vinyl tube is 32".

Thumbnail of the uploaded file named dhpg-36lg.jpg
Thumbnail of the uploaded file named IMG_8445.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for contacting us. We should be able to supply both the pivot shoe and balance, but I'd like you to clarify your dimensions. Specifically, can you confirm the thickness of the shoe? 19/32" is extraordinarily skinny for pivot shoes in this style.

Can you also tell me the diameter of the spiral balance's outer tube? It should be either 3/8" or 5/8", or maybe 9/16".

Let me know!

A quick learner from Poughkeepsie, NY says:

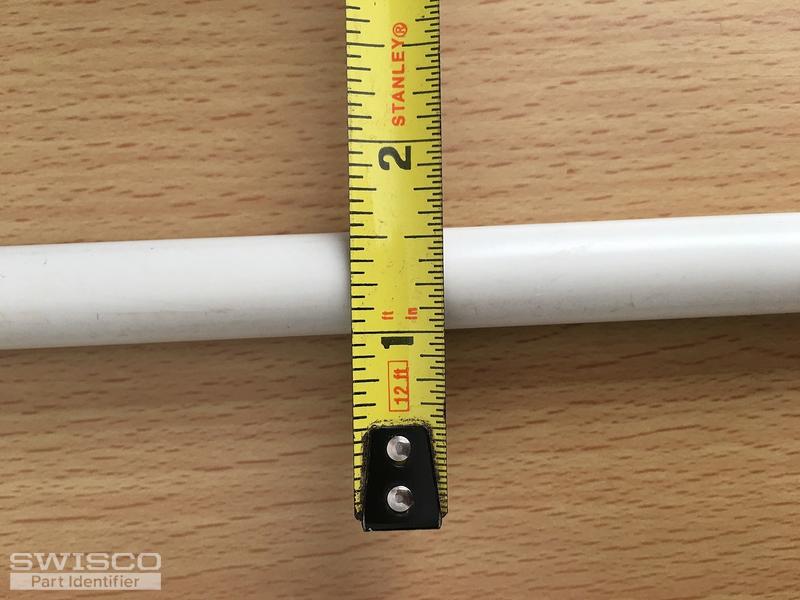

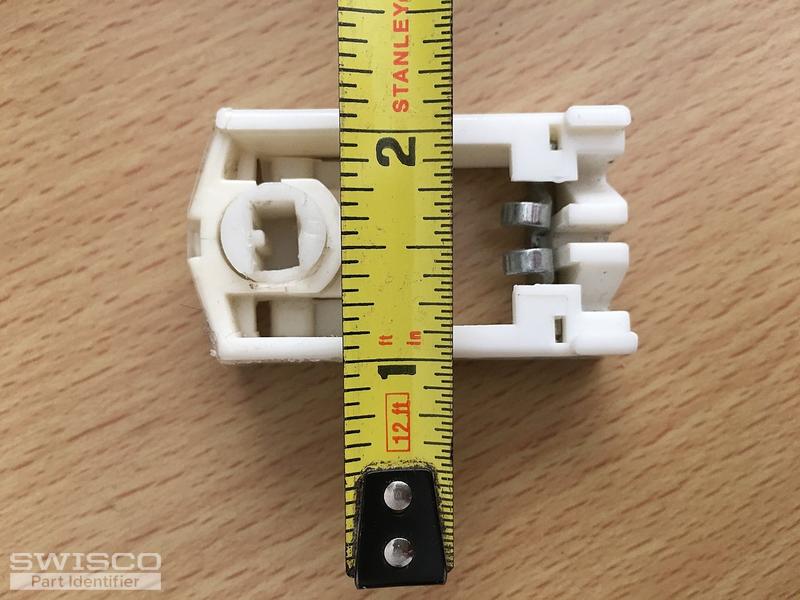

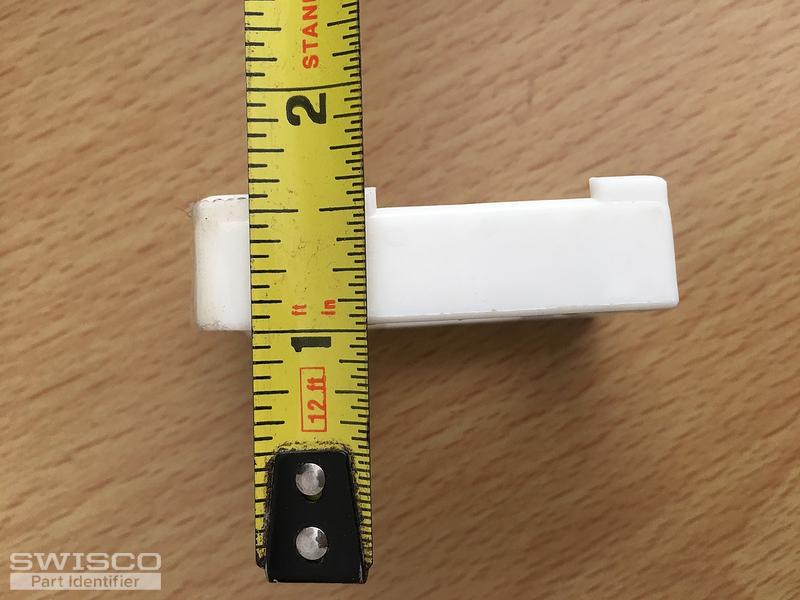

Attached the measurement photos for the spiral balance outer tube (IMG-8454)and pivot shoes(IMG-8452, 8453, 8455) below. I can send you the sample shoes if you need. Let me know. Thanks.
Thumbnail of the uploaded file named IMG_8455 (1).jpg
Thumbnail of the uploaded file named IMG_8453.jpg
Thumbnail of the uploaded file named IMG_8452.jpg
Thumbnail of the uploaded file named IMG_8454.jpg
Profile picture of Tom
Tom from SWISCO responded:

It's very hard to determine your measurements with just a tape measure in a photo, I'm afraid. It looks like the shoe is 1-1/16" wide, which is not a size I've ever seen, and 9/16" thick, which is very common. The balance diameter also looks like 9/16", which would make it our Series 600.

Can you confirm the width? It should be more like 1-1/4". If it's 1-1/4" wide and 9/16" thick, then you could potentially use our 15-121 as a substitute.
