Sash cam replacement : SWISCO.com

Quick Learner from Boynton Beach Florida

Nov 30, 2023 11:36 am

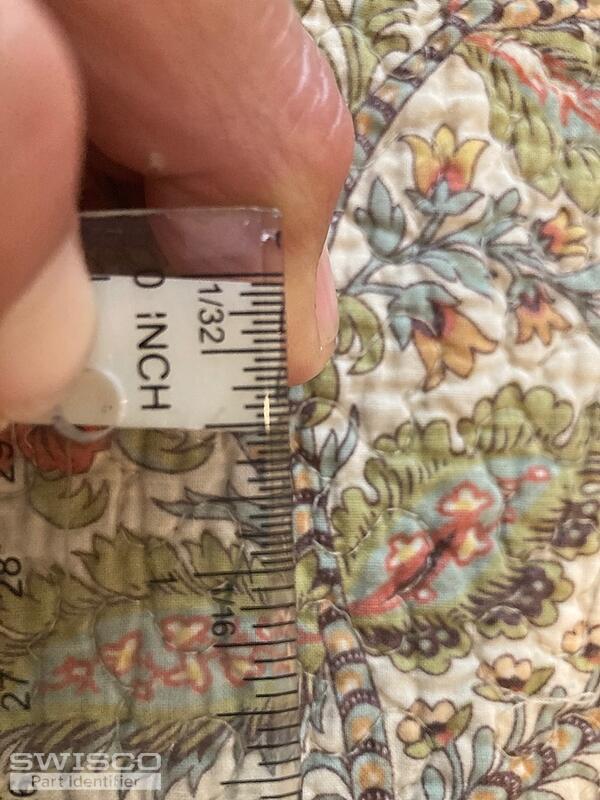

If you could help to make sure I purchase the proper pieces, it would be wonderful. I took the best pictures I could. The top of this piece is 7/8 inch across and half an inch wide. Thanks for your help.

3 user uploaded images

4 Replies

Bob from SWISCO

Nov 30, 2023 11:24 pm

Thanks for posting. This looks like our 18-009 Top Sash Guide. Please compare and let me know if this matches what you need.

Detail of 18-009

Side view of 18-009

Quick Learner from Boynton Beach Florida

Dec 1, 2023 11:38 am

Hi, good morning and thanks for getting back to me so quickly. After looking over everything, I thought that #18-036 might be a better fit. The issue is with the top as you could see. It is 7/8 of an inch across but the width from front to back is only a half an inch . It seems if I need to use both holes for the screws. I could drill a small hole at the top where it looks like. There is a little round circle for doing just that. Let me know what you think and it is greatly appreciated. Thank you.

1 user uploaded image

Bob from SWISCO

Dec 3, 2023 11:06 pm

Hello again. It looks like you are using the bottom hole in the old top sash guide--simply do the same with 18-036. No need to drill a top hole; as long as that bottom mount is being used okay, there shouldn't be any issue. As far as the top hat of 18-036, it is meant to give a clean finish to the sash, i.e., it's just so it looks nice. Therefore, being slightly less on the width (3/4") and slightly deeper (9/16") shouldn't affect the operation of the window sash in any way. Let us know if you have further questions!
