Sash lifters

A handy person from Haiku, Hawaii says:
I need 4 @14 inches long
And 4@25 inches long
I measured the metal only
The originals were stamped with Caldwell on

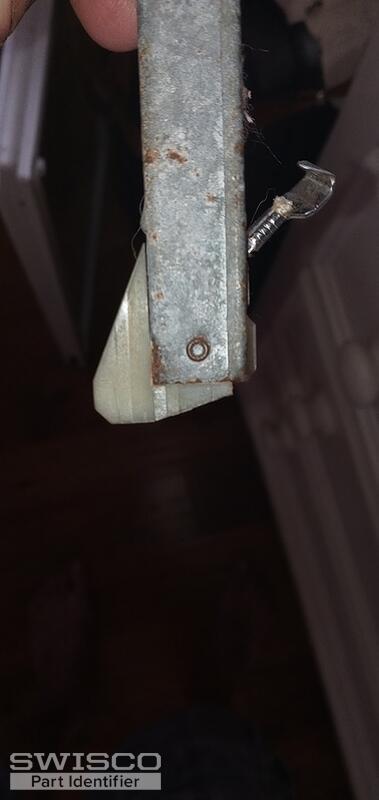

Thumbnail of the uploaded file named 20210403_154231.jpg
Thumbnail of the uploaded file named 20210403_154238.jpg

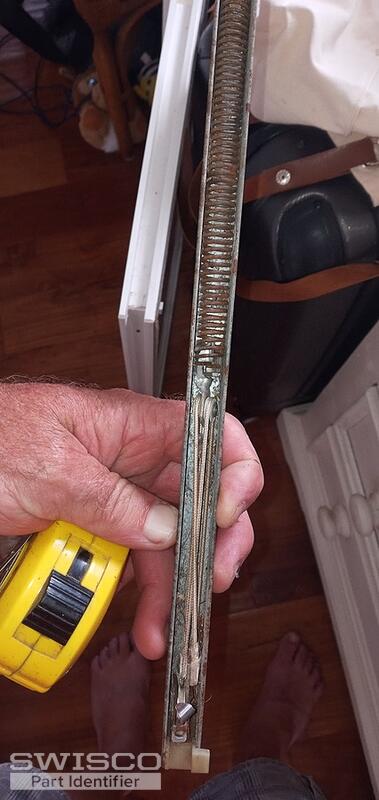

Thumbnail of the uploaded file named 20210403_154248.jpg

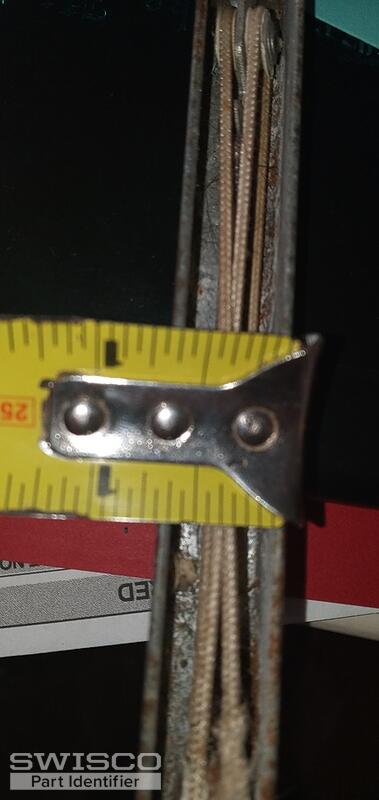

Thumbnail of the uploaded file named 20210403_154307.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hello there. I'm sure we can help, but can you show me clearer pictures of the nylon fittings on the ends of both sets of balances? I need to see undamaged versions to confirm if either or both fittings have side tabs, or wings. Also, are there stamps on these balances? I need to see those as well. From there I shall be able to help.

A handy person from Haiku, Hawaii says:
Hi bob my lifters do have the wings at both ends
There is no visible stamp that I could see sorry

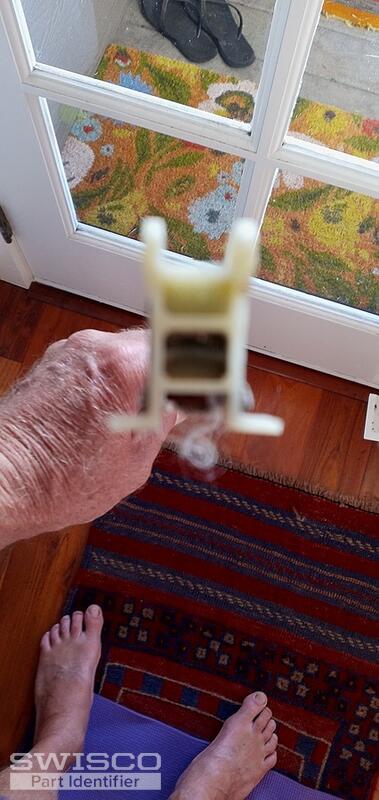

Thumbnail of the uploaded file named 20210407_180907.jpg

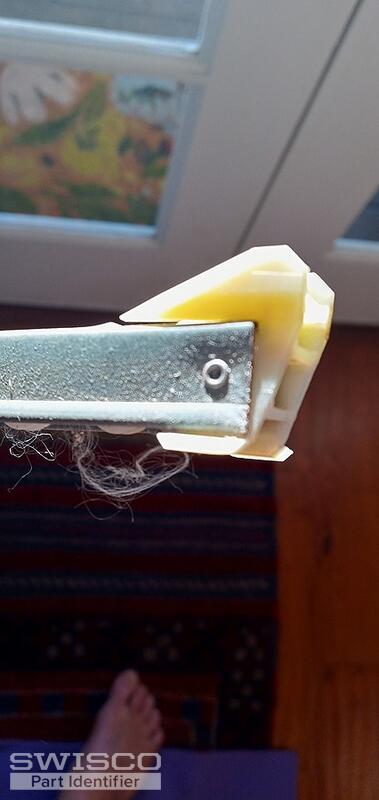

Thumbnail of the uploaded file named 20210407_180915_HDR.jpg

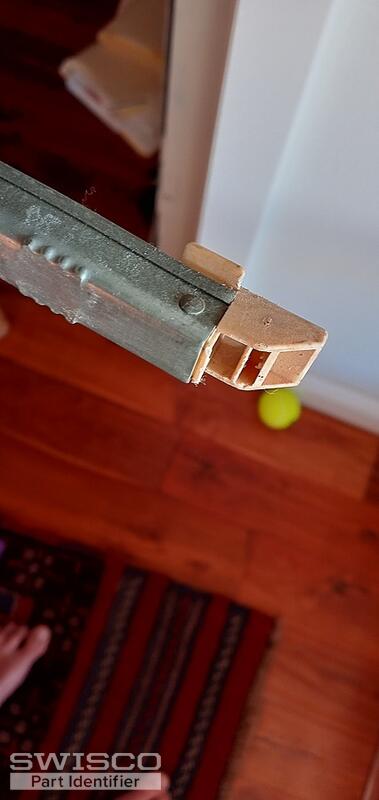

Thumbnail of the uploaded file named 20210407_180924_HDR.jpg

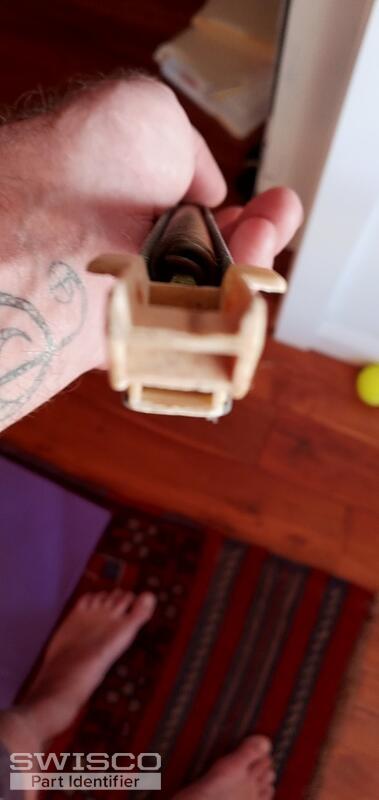

Thumbnail of the uploaded file named 20210407_180932.jpg
Profile picture of Bob
Bob from SWISCO responded:

If the metal channel, not including the fittings, is 25" long, then you have either an S380-25 or S385-25 . The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. The image below depicts the difference.

For a stamp option, you'll need to weigh the window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option under the balance product description.

S380vsS385
