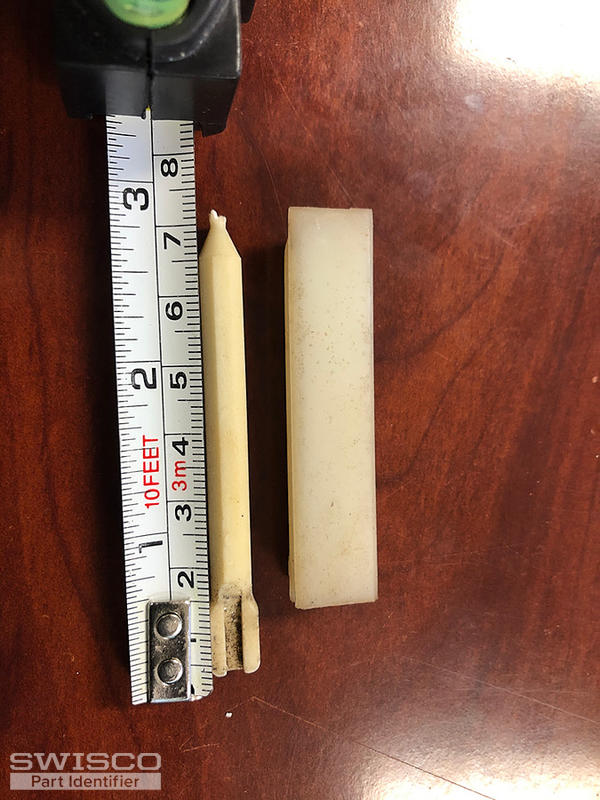

Attached are pictures of a two-piece, plastic pivot bar system that we need a number of replacements for. Overall dimensions of the top of the "carrier" section is 2-7/16" x 1/2" The actual plastic pivot bar is 3-1/8" and when in place, extends 1/2" beyond the carrier. The pivot bar is Octagonal along the part that sits within the carrier, and U-shaped where it extends into the sash lock.
The end of the pivot bar has a slight barb on the end to lock it into the carrier when inserted.
Thank you
Sash pivot bar (plastic) two piece
Quick Learner from Greensboro, NC
Feb 10, 2021 12:29 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Feb 15, 2021 10:06 am
Hello,
Your pivot bar resembles our 26-379 but the dimensions don't appear to be an exact match. Take a look and see if you could adapt this to work for you. Thanks for posting!
