Sash pivot bar and pivot lock shoe

Question

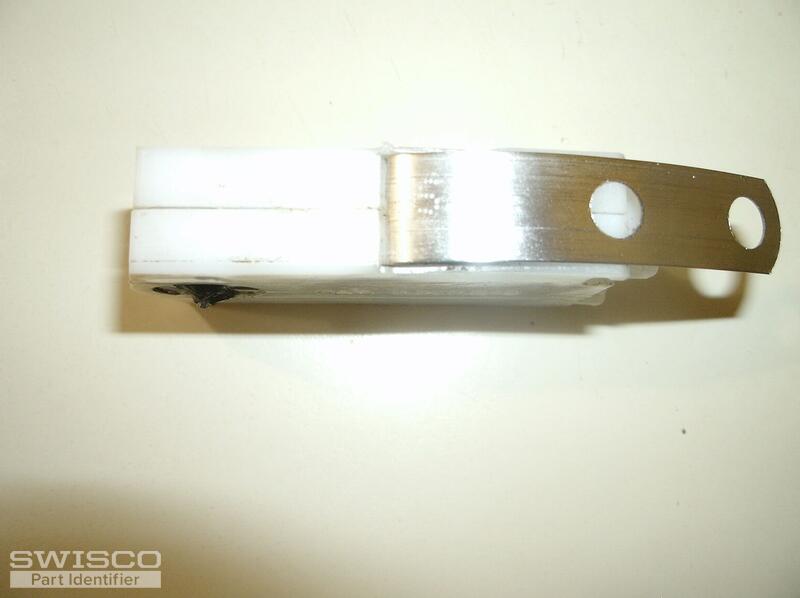

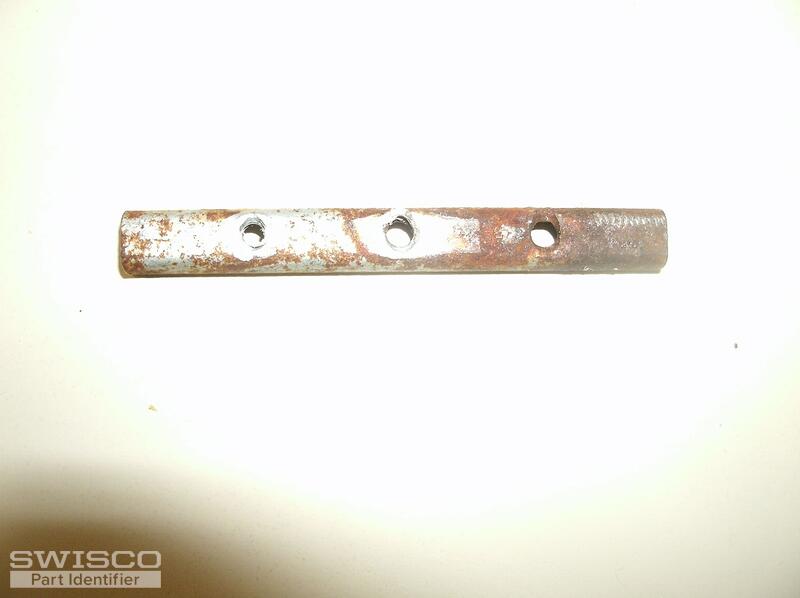

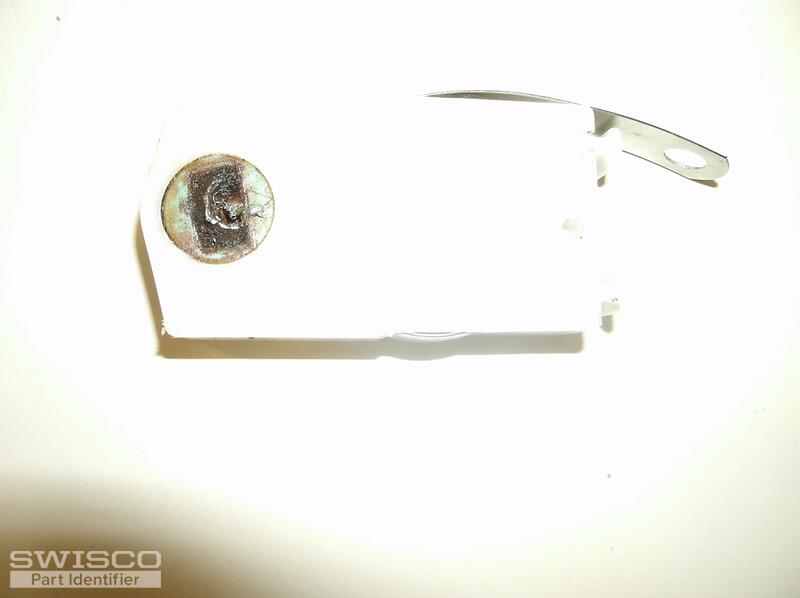

The picture is of my old sash pivot bar it is 2 5/8 long 5/16 wide u shape 3 holes one closest to pivot shoe is 5/8/inch next one is 5/8 back from there last one is 1 3/8 from first hole. Pivot shoe looks to be a 15-087 and stamped on spring is 15v then a different type of 6 on it also. Pivot shoe needs to have spring towards front of window, pivot shoe also has another spring assembly attached. Would like 2 Sash pivot bars and 1 pivot lock shoe assembly plus 1 mounting bracket and 2 screws if available

Casey · Accepted Answer

Hello,

It's tough to be sure but I agree that your housing pivot resembles the 15-087 as long as the specifications match up to yours. I would also recommend weighing your windows sash and dividing the total by the number of S180 coil springs used on both sides of the window. That will allow you to confirm the strength options needed for your replacement coils. Take a look at these parts, as well as the related items listed on our product pages, to compare to your original hardware.

As for the pivot bar, we don't carry an exact match but review the specifications of the 26-068 below. As long as at least one installation hole in your sash matches up to one of the elongated openings in our part, you should be good to go. Thank you!

Detail of 15-087

Dimensions for 26-068
