Contractor from Boston

Jun 5, 2023 10:11 pm

I didn't see any brand markings on the window, but I think this is the same or very similar window in this post: https://www.swisco.com/discussions/Broken-window-pivot-bar-77-97229

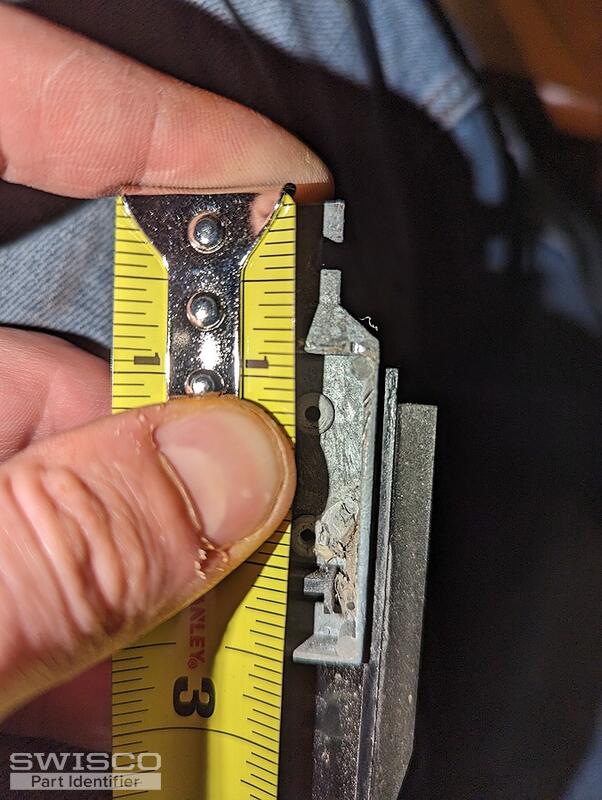

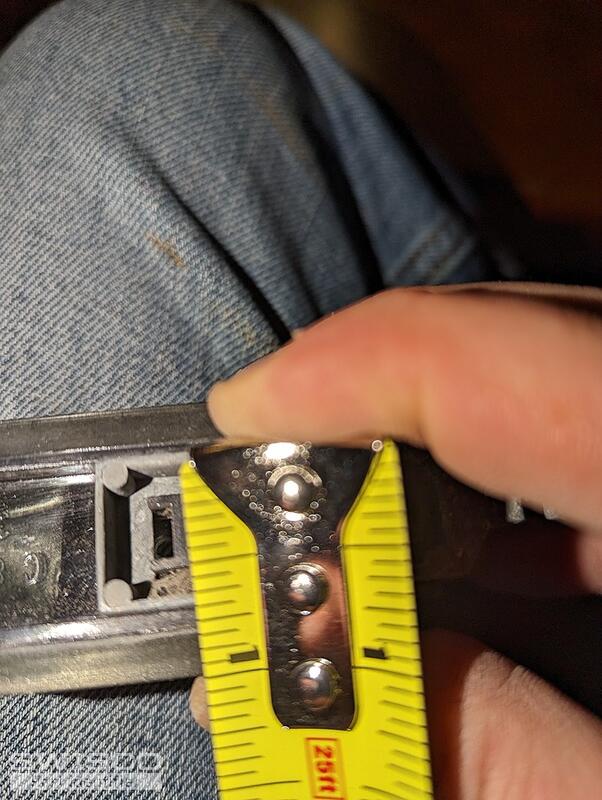

The bar measures as shown in the pictures. Thank you.

5 user uploaded images

6 Replies

Lauren from SWISCO

Jun 8, 2023 8:30 am

Hello, thank you for posting,

Unfortunately this old Harvey pivot bar has been discontinued for sometime now. The closest we carry is the 26-376 sash pivot, but it will need some modification by filing a hook at the tip to fit in the pivot shoe. Please review the overall specifications to see what you think! Please note that the pivot bar is no longer returnable if modified.

Dimensions for 26-376

Contractor from Boston

Jun 8, 2023 12:20 pm

Thank you.. Would an angle grinder be a good tool to cut the notch?

Lauren from SWISCO

Jun 9, 2023 7:38 am

Hello,

A small grinder, a Dremel tool or even a regular file might do the job. Take note put the part in a bench vise to secure it in place and wear safety goggles.

Contractor from Boston

Jul 11, 2024 8:50 pm

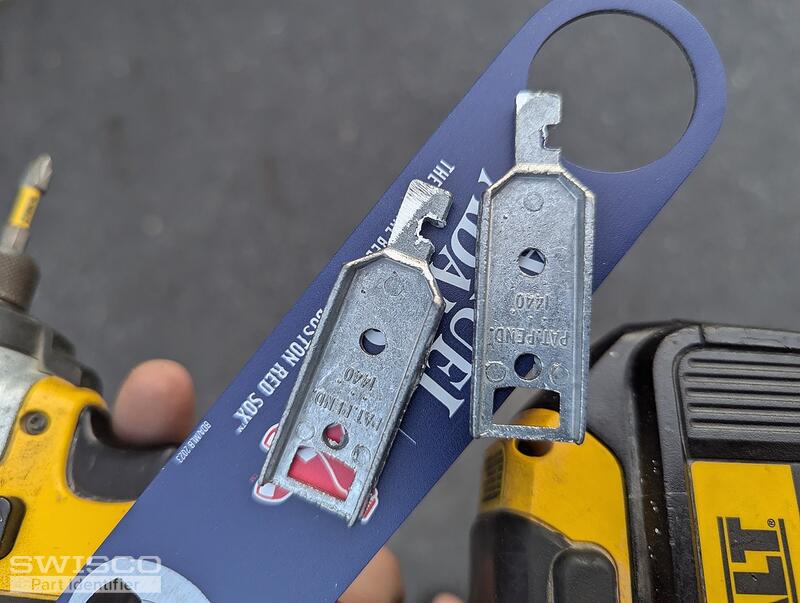

These worked for my Harvey windows. I did need to grind the sides smooth. They were just slightly too rough to slide into the window. I used 1/2" self tapping screws after drilling out the rivets.

1 user uploaded image

Lauren from SWISCO

Jul 12, 2024 8:18 am

Thank you for your feedback! We appreciate letting us know that you were able to adapt the 26-376 pivot bar. Please let us know if you have any future hardware questions!
