Sash replacement

Start a new Discussion

Handy Person from Goodyear Az

Oct 4, 2020 3:20 pm

I need to replace a sash with the following code:
28--4 EA2 CMC 12

3 user uploaded images

6 Replies

Bob from SWISCO

Oct 8, 2020 10:09 am

I am afraid that code only tells us the strength of the spring inside the balance. The nylon fittings on both ends are what determines the kind of balance you need, or what we call the Series. If you can show us up-close photos of both nylon fittings, I am confident we can narrow this down for you. Thanks.

Handy Person from Goodyear Az

Oct 10, 2020 3:30 pm

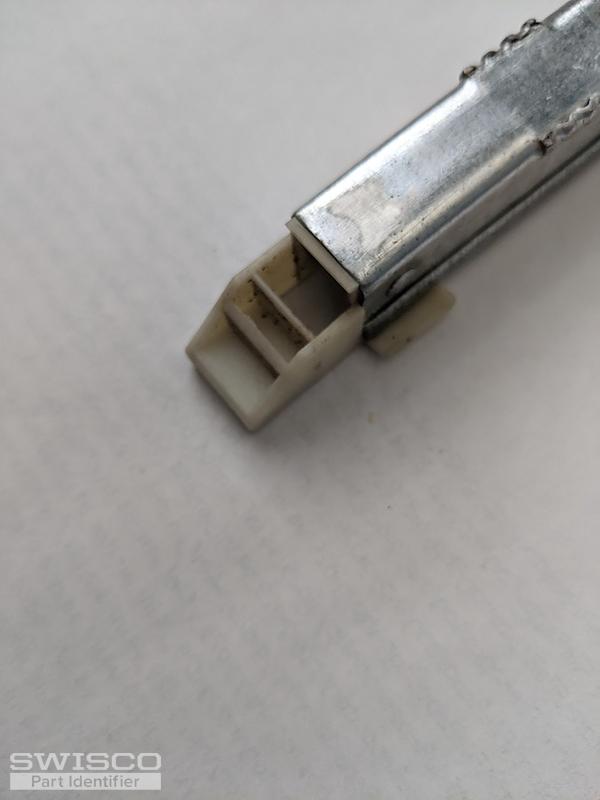

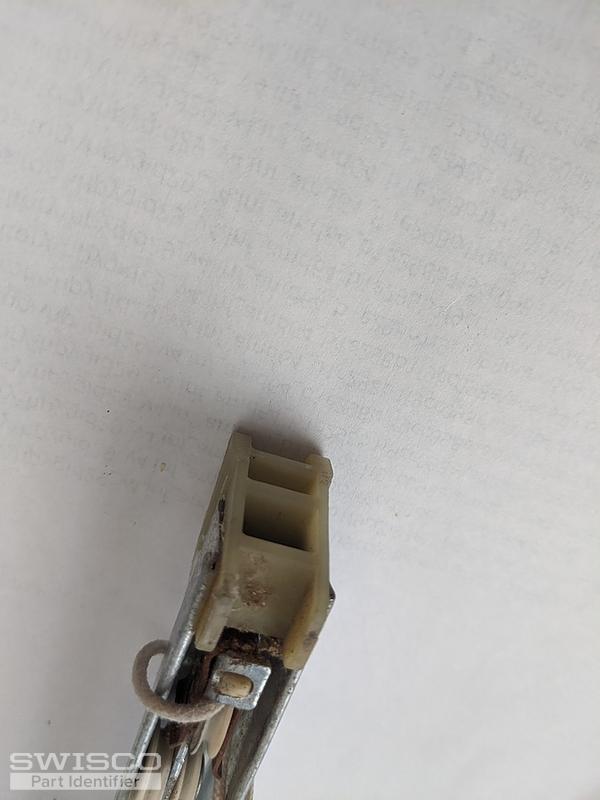

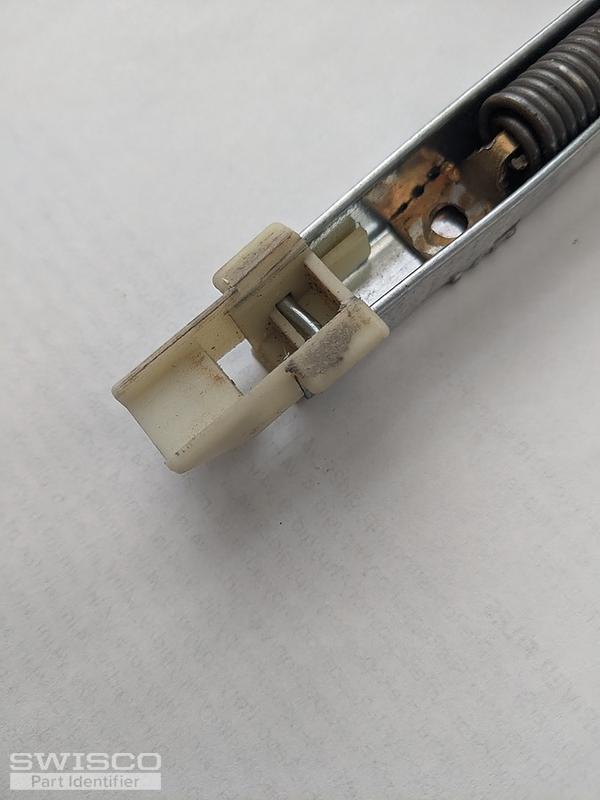

1st three are of the same end.

3 user uploaded images

Handy Person from Goodyear Az

Oct 10, 2020 3:32 pm

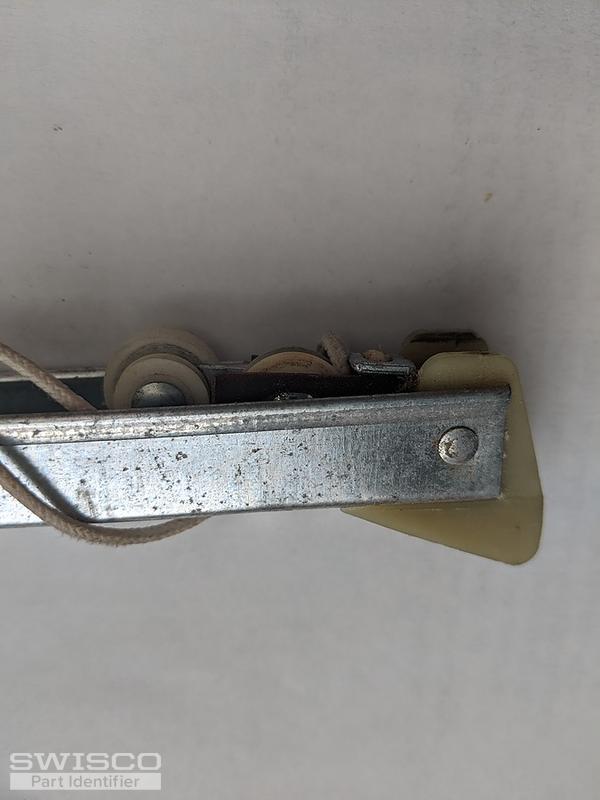

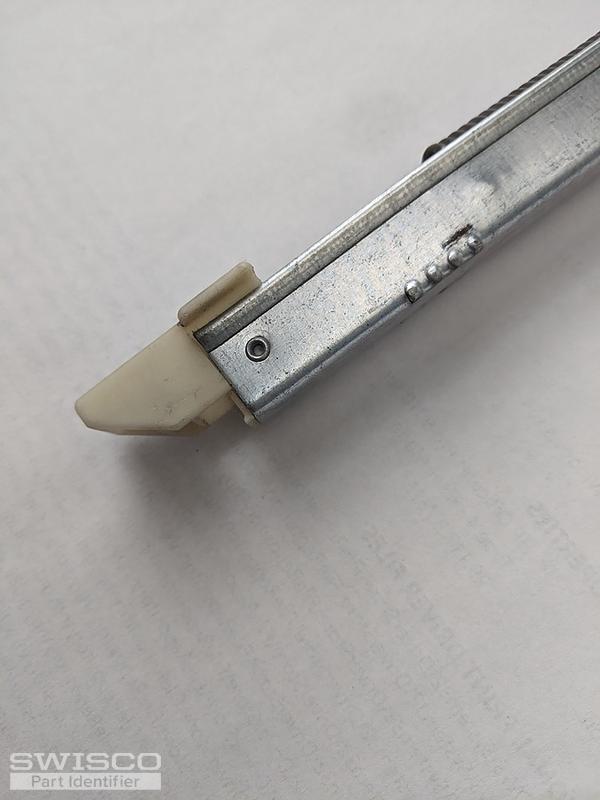

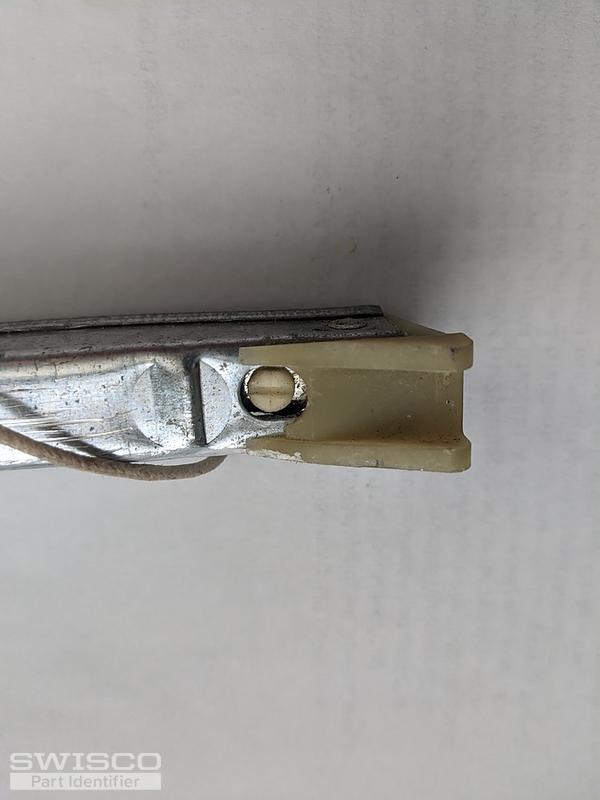

Next group of three are from the opposite end

3 user uploaded images

Bob from SWISCO

Oct 12, 2020 9:33 am

Thanks for getting back to me. Is the metal channel, not including those fittings, 29" long? If so, see our S395-29. You'll need a stamp option of 2840.

Handy Person from Goodyear Az

Oct 14, 2020 6:38 pm

yes it is 29" long. I will look for the S395-29 with stamp option 2840.
