Having a problem with replacing broken pivot lock shoes on my 24 year old Sears Weatherbeater Double Hung windows. The shoe is shown in image A49990A4-C9AF-4EB and there are two photos showing the lift coil in place within the window frame. The shoe is approx. 19/32" in diameter and 17/32" thick. No part numbers available.

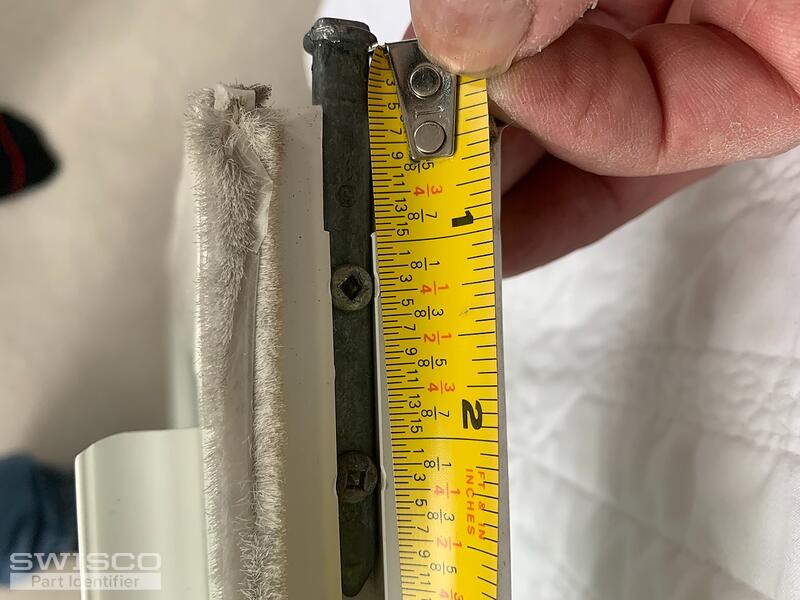

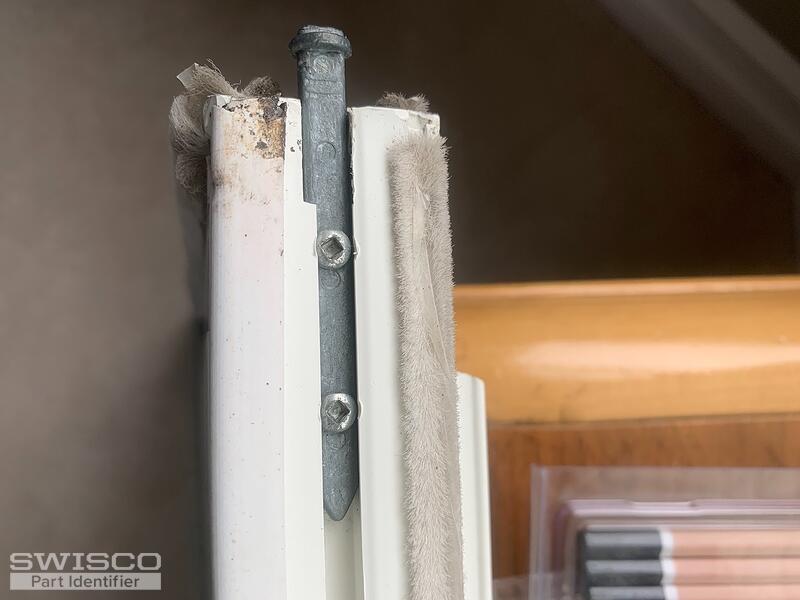

Also in need of some pivot bars (shown in photo 3D1178B7-9F02-487) as well. These are 3" long with the fastening holes located 1 1/4" and 2 1/4" from the pivot head per photo 35915502-3B033-49C.
I am located in Mississauga, Ontario, Canada and hope you are able to supply. I need 24 shoes and 5 bars. Would you be able to supply?
Sash/Hung Sears Double Hung Window
Quick Learner from Mississauga, Canada
Oct 5, 2021 1:49 pm
5 user uploaded images
2 Replies
Emily from SWISCO
Oct 11, 2021 1:19 pm
Hello!
Take a look at our 15-175 pivot shoe, which uses the Series 152 coil springs, along with the 26-226 pivot bar. Remove your hardware from the window and see if our dimensions match up to yours.
