A few years back you received queries about replacing a plastic slide connector used by Scheicher in their cabinets. (Here's an example of one: https://www.swisco.com/discussions/scheirich-kitchen-drawer-parts-77-68729) You didn't have an exact replacement part then, but I'm curious whether anything has changed in that regard since? (As happened to the other poor folks, the plastic connectors on my end have disintegrated.)
If not, what would you recommend I use instead for parts as a workaround?
The metal slide itself is 7/8" high.
The plastic connector receives a thin metal tab that is also 7/8" high.
The plastic connector measures 2 1/2" in length, 1 1/4" in height and 1/2 in width.
Thanks so much for your help!
Adrian
Scheicher bathroom cabinet drawer bottom mounted slide connector
Home Owner from Columbia, MD
May 18, 2020 12:33 pm
4 user uploaded images
2 Replies
Bob from SWISCO
May 20, 2020 12:51 pm

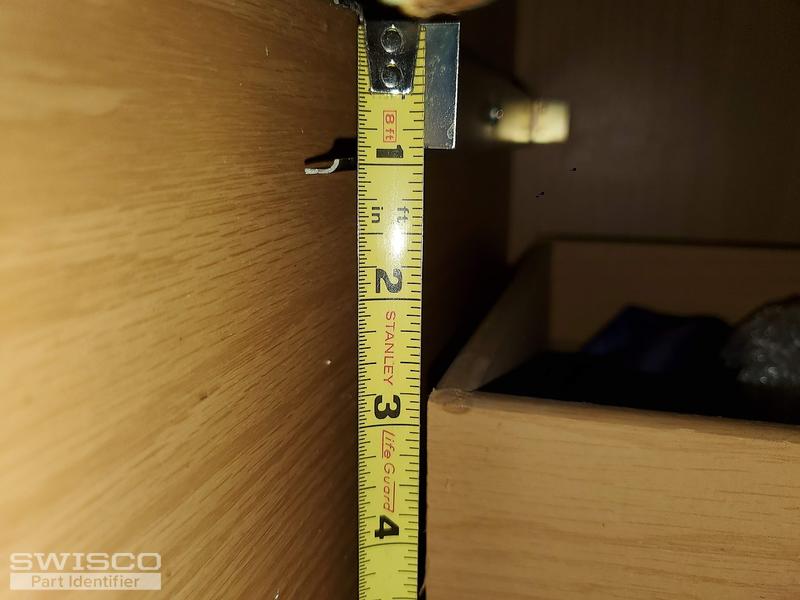

Hey Adrian. No, we still do not have this exact bracket, but I believe the 32-119 would still be your best bet for a substitute. Just double-check your dimensions to ensure it can fit the size of the gap shown below. But this is a very versatile bracket pair that works with a lot of cabinet applications, so if the dimensions look right I'm fairly confident this can work for you.
Detail of 32-119
