Scheirich Roller Brackets and Hinges

A handy person from Tucson, AZ says:

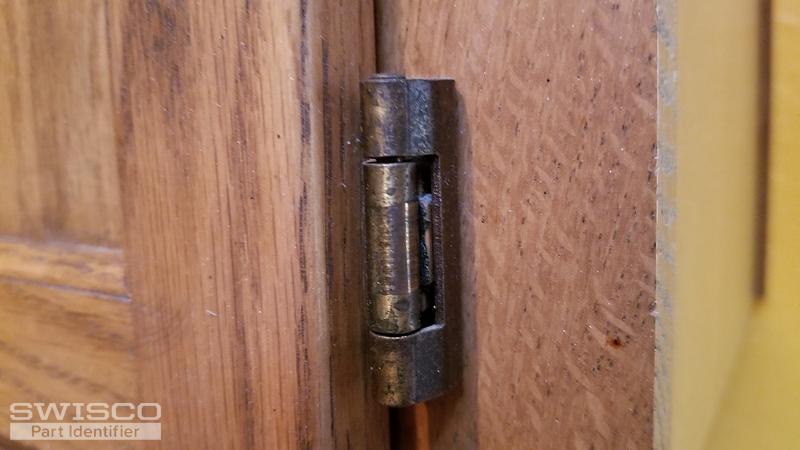

Scheirich kitchen cabinets from the 1970s. Looking for replacement hinges. Cabinet frame is 1/2" thick. Door overlay is 1/4". Also looking for roller assembly brackets for the drawers - US Patent No. 3,980,364. Thanks.
Thumbnail of the uploaded file named received_123844549610095.jpeg
Thumbnail of the uploaded file named 20210130_170023.jpg
Thumbnail of the uploaded file named 20210130_170042.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hello there. For the hinges, see if you could use our 32-147 Kit as a replacement. Look them over and see what you think.

I'm afraid this drawer plate roller is no longer available. What we suggest is trying to just replace the wheel. First drill out the rivet holding the wheel to the plate, then choose a wheel that matches the size of yours. Start with our 10-109, 10-141 or 10-142 to start out with. You can use a 33-087 screw with a dab of Loc Tite on the threads to install.

A home owner from Erie, PA says:
I am redoing my kitchen and will be replacing 14 cabinet doors which have this type of hinge. Are you still in need?
Thumbnail of the uploaded file named 20210526_111307.jpg
10-109 : 7/8
7/8" Flat Shower Door Wheel
10-109
$0.57
VIEW >
10-141 : 3/4
3/4" Flat Shower Door Wheel
10-141
$0.60
VIEW >
33-087 : 8-32 x 3/8
8-32 x 3/8" Phillips Truss MS Zinc
33-087
$0.08
VIEW >
10-142 : 5/8
5/8" Flat Shower Door Wheel
10-142
$1.47
VIEW >
32-147 : Partial Wrap Hinge Kit
Partial Wrap Hinge Kit
32-147
$4.35
VIEW >
