Home Owner from NJ

Feb 10, 2024 1:39 am

Corner connector of the screen frame for a crank out window

4 Replies

Lauren from SWISCO

Feb 12, 2024 11:01 am

Hello, thank you for posting,

To further review, we will need to see pictures and dimensions of the corner connector. From there we can get a better idea of the style needed. It would be best to see the part removed if possible. Thank you!

Home Owner from NJ

Feb 19, 2024 6:40 pm

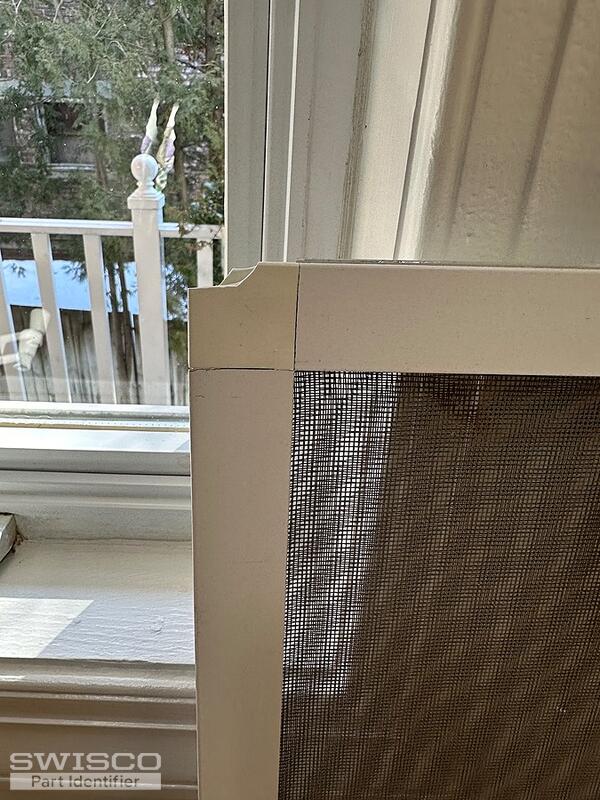

Photo 1 and 2 is the piece needed for the corner of the screen. Also photo 3 and 4 is of the piece that holds the screen in. I need many of these ( at least 12).

4 user uploaded images

Lauren from SWISCO

Feb 20, 2024 12:33 pm

Thank you,

We do not have an exact match for the clip, but start by taking a look at the 70-014 that has a 1/16" offset. Review the dimensions below to see what you think!

Detail of 70-014

Profile view of 70-014

For the screen corner, can you provide the thickness of the screen frame that it fits into? Thank you!
