Screen Door Corner

Question

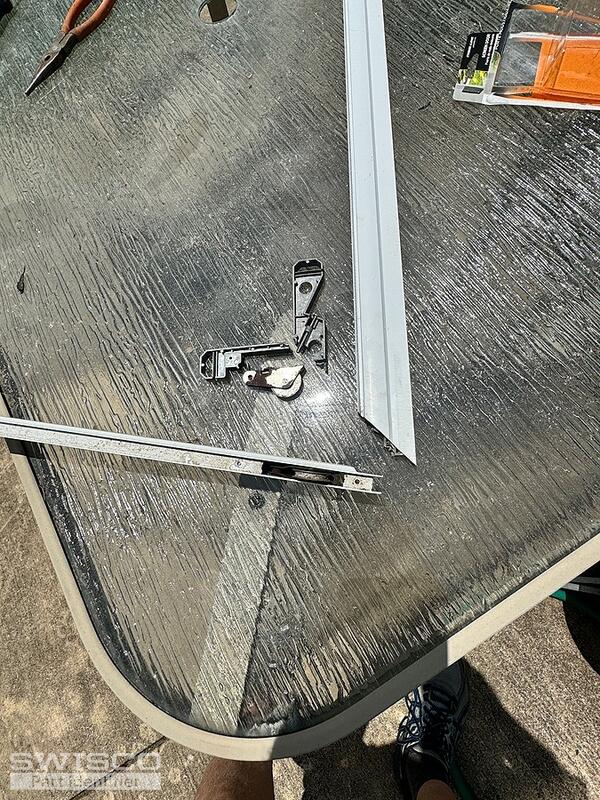

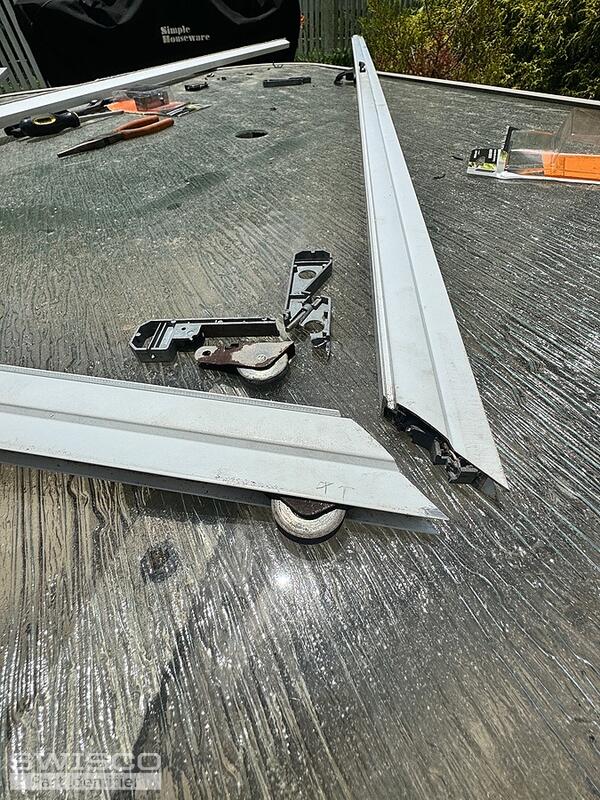

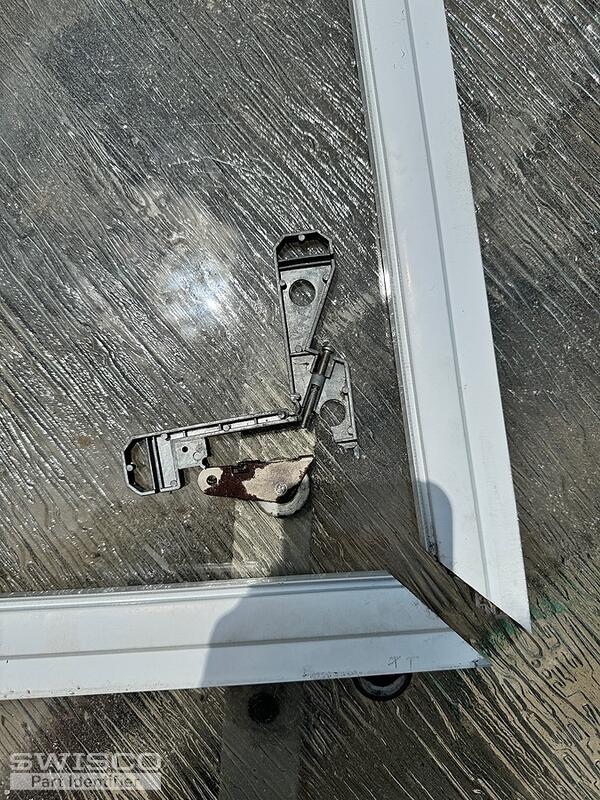

The pics show the exploded view of my original corner braces and rollers. I couldn't find a match. They also seem very flimsy with just a thin connection between the angle. Is there a quick replacement or something better? I did buy 4 corners, the 95-248's, that I hoped would work but I'm not if any rollers will work with them within my door frame Any help is greatly appreciated ! Let me know if you need any other pictures.

Jasmine · Accepted Answer

Thanks for writing in! I believe our 95-020 Acorn Patio Screen Door Roller Corner would be a better replacement match for your existing corner. Like yours, this is compatible with a roller like either the 84-091M Screen Door Roller or the 84-104 Screen Door Roller.

To determine if this corner will be a fit and which of the rollers you need, carefully look over each of their dimensions and compare them to your hardware. The difference between the roller is their diameter measurements.

Dimensions for 95-020

Alternate view of 95-020

Alternate image for 84-091M

Alternate image for 84-104
