Screen Door Rollers for a Kanweer door system?

Contractor from Maui, Hawaii

Aug 8, 2025 4:28 pm

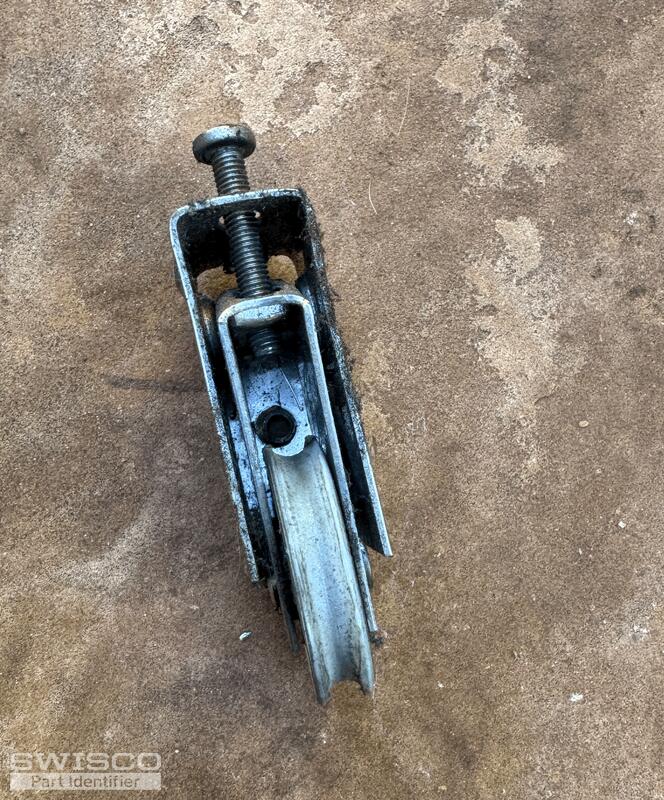

We have unique rollers here for the screen door portion of what I believe are Kawneer doors. I could be wrong.
To note, they screw in from the top as well. So I have to remove the rail of the door to get to that screw.
Any help finding replacement parts would be greatly appreciated.

4 user uploaded images

6 Replies

Paul from SWISCO

Aug 13, 2025 9:01 am

Hello,

We'd be happy to look into this for you, but we'll need more information to get started. If you could write out the exact diameter of the wheel, as well as the height and width of the housing, we can go from there. Thank you!

Contractor from Maui, Hawaii

Aug 13, 2025 2:39 pm

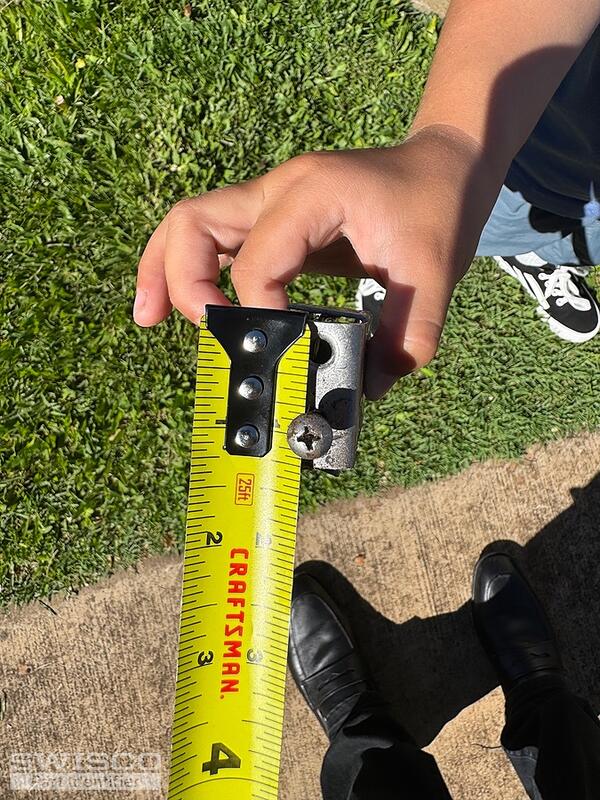

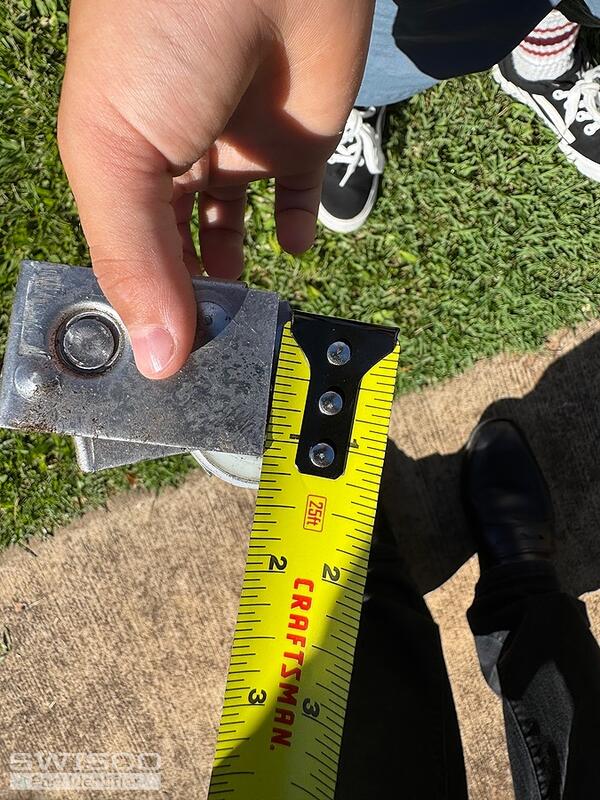

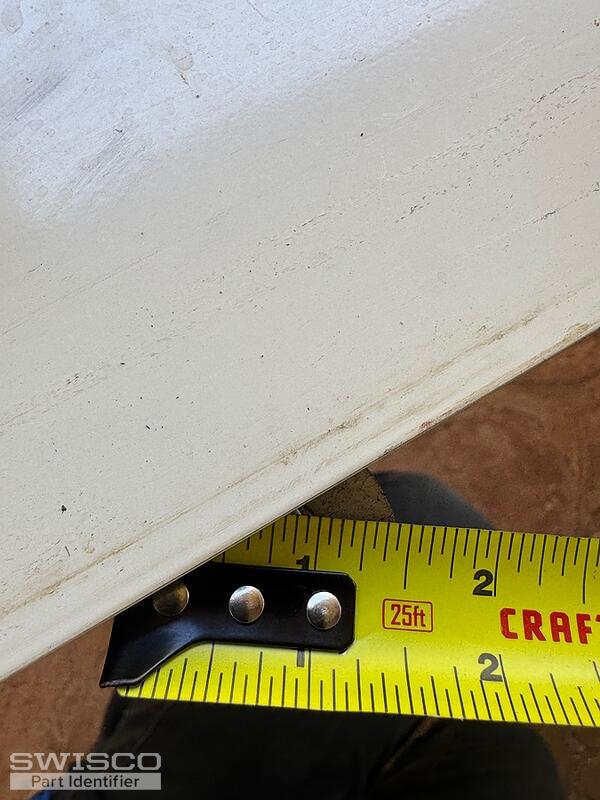

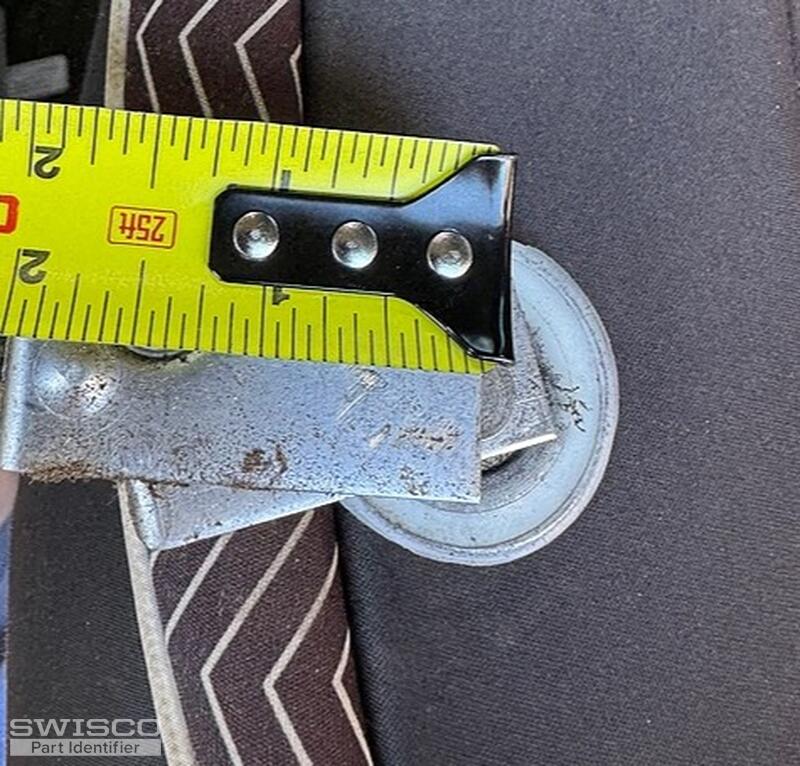

Here they are!

4 user uploaded images

Paul from SWISCO

Aug 13, 2025 3:01 pm

Thanks for getting back to us, but unfortunately, we are not able to make out exact dimensions from photos. If you could write out your measurements, we can go from there.

Contractor from Maui, Hawaii

Aug 13, 2025 3:22 pm

The body is
1 1/4 tall
2" length
Wheel looks to be 1 3/8 to 1 1/2 diameter

Paul from SWISCO

Aug 14, 2025 8:50 am

Unfortunately, we could not locate this Kawneer screen door roller assembly. From your photos and dimensions, the closest option would be the 81-023. If the specifications below won't work, you could consider drilling out the old wheel and reusing the original housing with the 81-236A wheel and 81-310 axle kit.

Alternate image for 81-023
