Screen Door Window Latch

A handy person from Solon Springs WI says:
Storm Door is A.J. Manufacturing sold by Menards, probally 20ish years old.
Need both left and right latch plus corners, will be ording 2 sets of latches plus 8 corners.

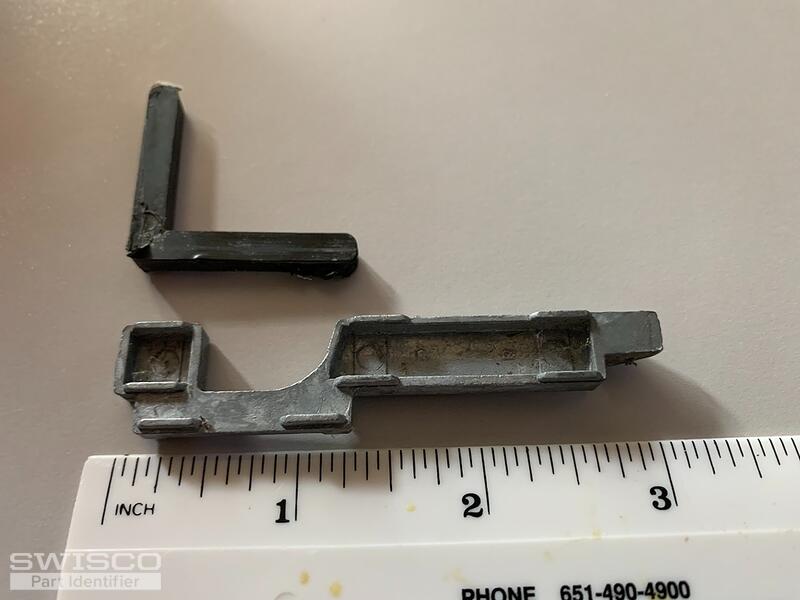

Thumbnail of the uploaded file named Screen Door Latch (1).JPG

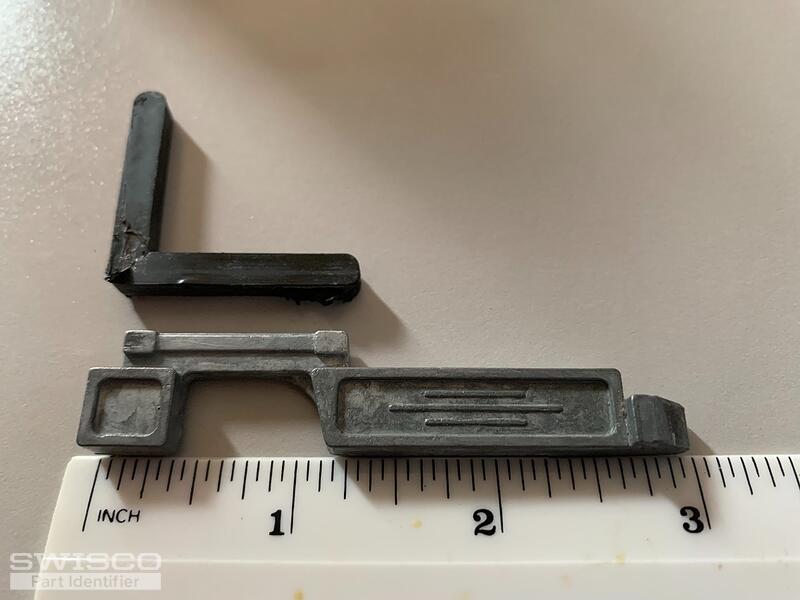

Thumbnail of the uploaded file named Screen Door Latch (2).JPG
Thumbnail of the uploaded file named Screen Door Latch (3).JPG
Profile picture of Tom
Tom from SWISCO responded:

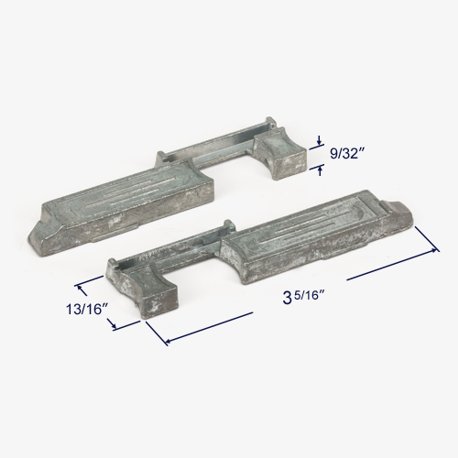

Thanks for your patience during this busy season. I'm afraid we don't have an exact match for this latch, but it is similar in design to our 91-070. Do you think this is something that can work for you? I can't quite make out your dimensions form this ruler, but we have measurements for this part that you can use as a reference to confirm. Let me know what you think.

As for the corner, I'm afraid I'm having the same issue reading your dimensions. Would you be able to get more precise dimensions and write them out for me? The thickness of the leg seems to be a hair larger than 3/16". That may not seem like a lot, but that hair could make all the difference. I would need a precise measurement, if at all possible.

A handy person from Solon Springs WI says:
Your Dimension / What I measure
13/16 / 10/16
3 5/16 / 3
9/32 / 08/32
Used a better ruler see picture
How close do they have to be?
I do need both left and right latches

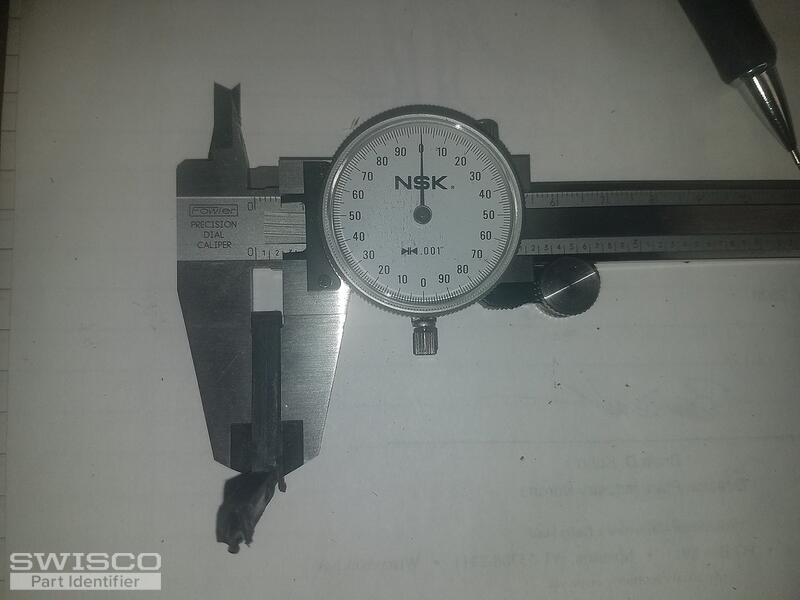

The Corner measured
5mm 3/16 Inch 0.19685 Inches

At $3.95 willing to try couple to see if work!

Thanks

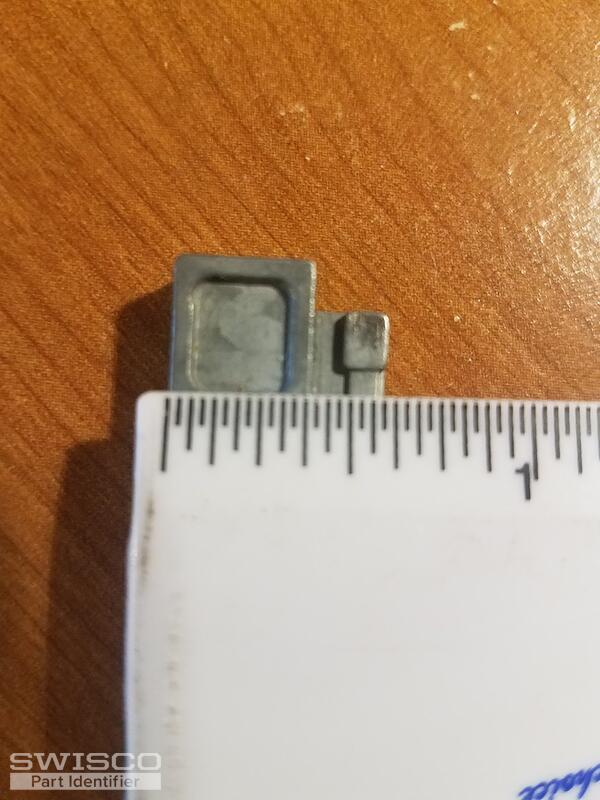

Thumbnail of the uploaded file named Screen Door Window Angle.jpg

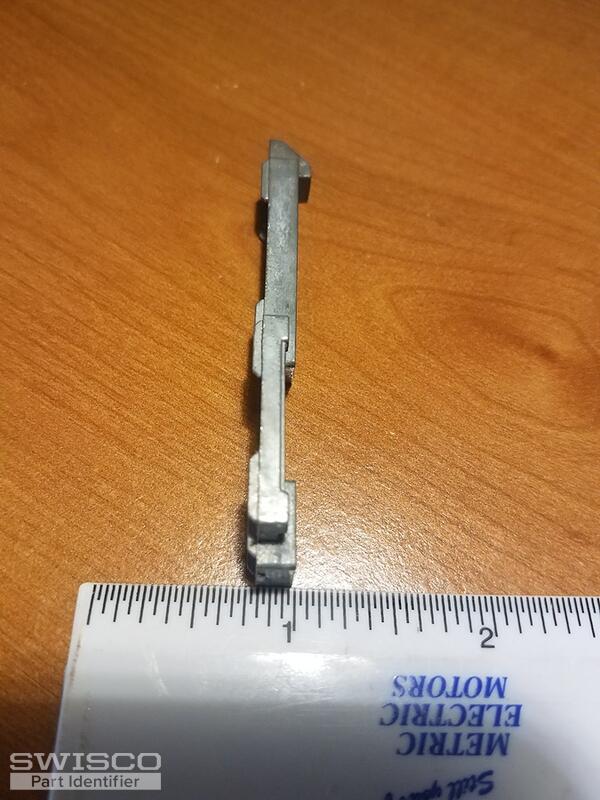

Thumbnail of the uploaded file named Screen Door Window Latch (4).jpg

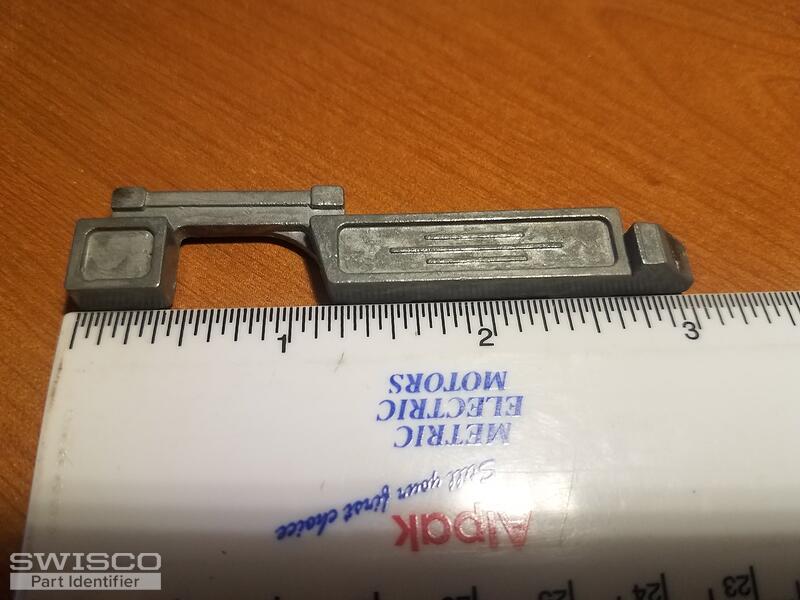

Thumbnail of the uploaded file named Screen Door Window Latch (5).jpg
Thumbnail of the uploaded file named Screen Door Window Latch (6).jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Take a look at the 91-006 set, as well as the the left and right 91-026 and 91-027. These might be closer to what you're looking for. As for the corner key take a look at the 95-176 and the self locking 95-002.

91-006 : Latch Pair
Latch Pair
91-006
$3.97
VIEW >
91-026 : Left Hand Latch
Left Hand Latch
91-026
$1.02
VIEW >
91-027 : Right Hand Latch
Right Hand Latch
91-027
$1.02
VIEW >
91-070 : All Weather Style Latch Pair
All Weather Style Latch Pair
91-070
$3.97
VIEW >
91-140 : Larson Slide Bolt Set
Larson Slide Bolt Set
91-140
$3.56
VIEW >
95-002 : Capitol Window Panel Corner, 3/16
Capitol Window Panel Corner, 3/16" x 3/16"
95-002
$0.74
VIEW >
95-140 : Tilt Corner Key, 3/16
Tilt Corner Key, 3/16" x 3/16"
95-140
$1.00
VIEW >
95-176 : Aluminum Corner Key, 3/16
Aluminum Corner Key, 3/16" x 3/16"
95-176
$0.78
VIEW >
95-191 : Larson Storm Window Swivel Corner
Larson Storm Window Swivel Corner
95-191
$0.93
VIEW >
How to install a window screen latch
How to install a window screen latch
VIDEO
WATCH >
How to replace stamped window corner keys.
How to replace stamped window corner keys.
VIDEO
WATCH >
