Screen Hardware
Home Owner from Frostburg, MD.
Jun 16, 2020 5:29 pm

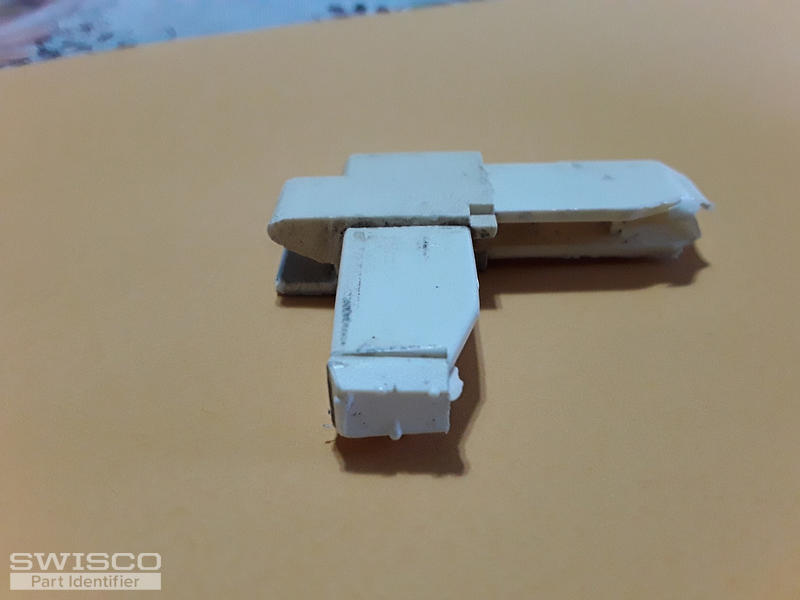

Picture 172059 is one of the top corner pieces that hold the screen in the window and also form the frame. Pictures 171950 and 171804 are one of the bottom pieces that form the frame this one piece showing both sides. All of these corner pieces fit into metal frame pieces that are around one half inch at the widest point. Picture 171523 is showing the plastic pins that hold the bottom of the screen in the window. There are no springs with these pins they just fit into holes drilled in the metal frames. Let me know if you need any additional information.
4 user uploaded images
2 Replies
Tom from SWISCO
Jun 19, 2020 1:06 pm
Hello! We should be able to help you with these parts. I recommend looking at our 70-195 screen pin, 95-205 square cut corner, and 95-206 square cut corner pair to see if these parts match up to your originals. You can use the dimensions we show on each product's store page as a reference for confirmation.
