Screen Repair

Quick Learner
Good afternoon,

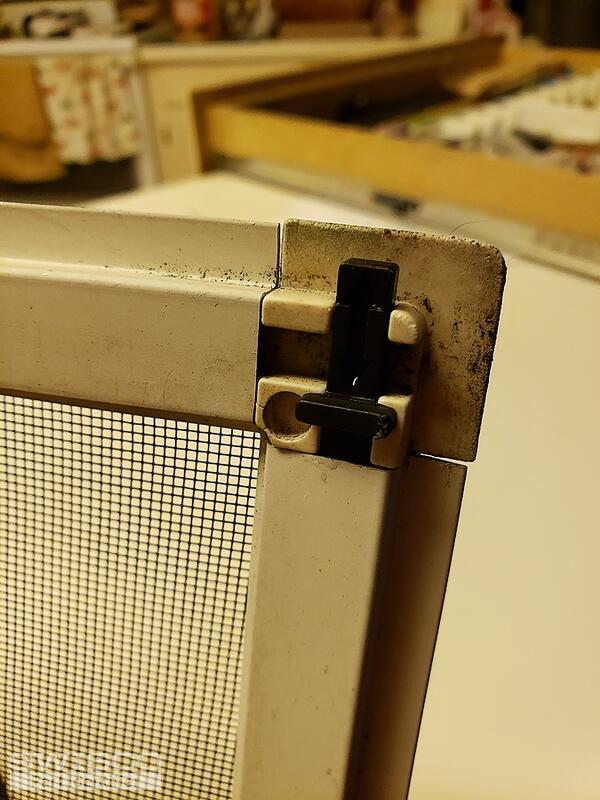

This is what it looks like. It sits on the outside of the window and the corners clips on the inside of the flange at each corner. The middle has a pen lock, that also locks behind same flange as corners.
The corners are about 1in x 1in
The track is also about 1in
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

Thanks for posting! To replace your screen corner, take a look at the 95-264 Screen Corner Latch. This is designed neutrally so that it can flipped to work for left and right applications.

Dimensions for 95-264
Dimensions for 95-264

The pins on the side of the screen can be replaced with either the 70-008 or 70-009 screen plunger pins. You'll need to confirm the diameter of your pin to determine which of them is the correct replacement. These are sold in packs of five.

Alternate image for 70-008
Alternate image for 70-008

Alternate image for 70-009
Alternate image for 70-009
