Screen door corners

Start a new Discussion

Contractor from Oklahoma

Mar 24, 2023 10:23 pm

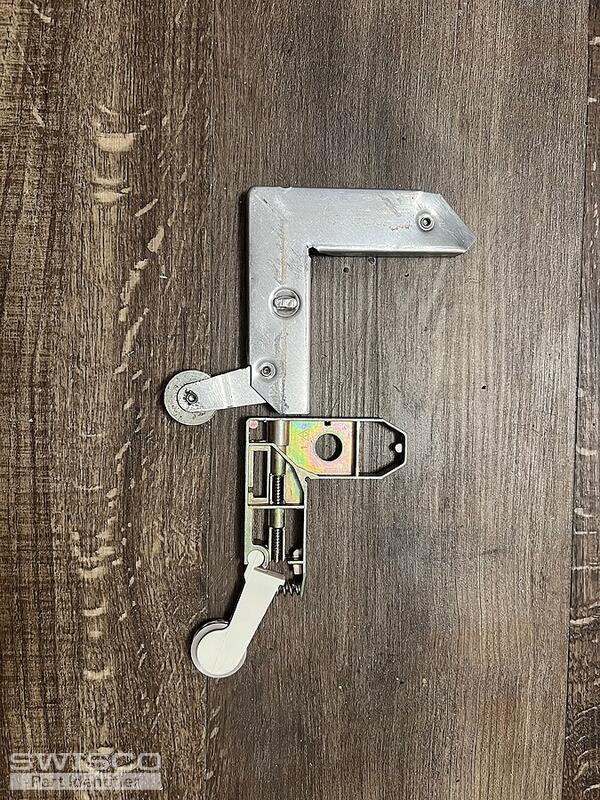

Do you have corners like this? Or alternatives that would work with this type of frame?

3 user uploaded images

5 Replies

Dave Sr. from SWISCO

Mar 27, 2023 2:01 pm

Thank you for reaching out to us. Take a look at the list of corner wheels that we've related for you on this page. I would suggest using one of these that fits your screen frame. Take note that these adjust at the ends of the corner. If you don't have the "hole" for the end adjustment screw, you will need to drill an access hole for the adjustment screw.

Contractor from Oklahoma

Apr 3, 2023 7:31 pm

I got the deluxe corner roller, but it's too thin, it slides in too easy. Does that make sense?

Contractor from Oklahoma

Apr 3, 2023 7:34 pm

Too short I mean

1 user uploaded image

Dave Sr. from SWISCO

Apr 5, 2023 1:17 pm

Take a look at the 84-026 screen roller corner combo. It has the same corner thickness and width as the 84-152 but the leg is close to 3-1/2" long, whereas the 84-152 corner leg is only 3" long.

I also recommend having a look at the 84-137 corner roller which also has a leg just under 3-1/2", but the thickness is a little thicker at 7/16" and the width of the leg is a little thinner at 1-1/32". See if either of these would be a better fit for your screen door.
