Screen door roller replacement

Question

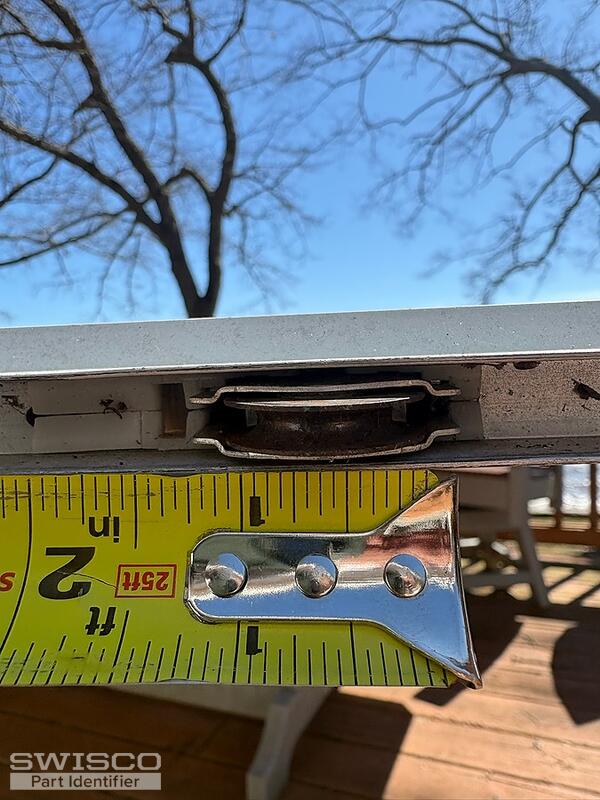

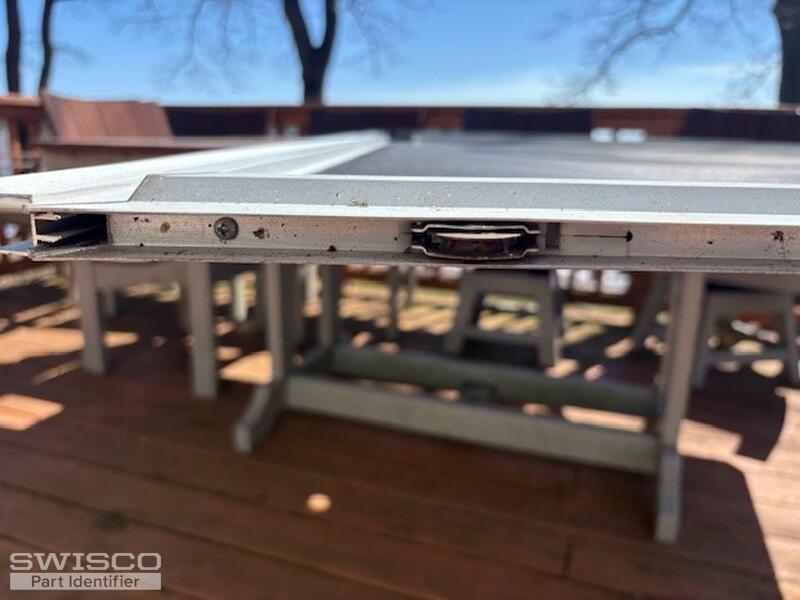

Looking to replace the rollers on some screen doors.  The ones in the photos are the lower wheels and I believe these are from an older Anderson line but I am struggling to remove these housings from the door and also find what looks to be a replacement part.  When I pulled the wheel out of the housing there were 2 compression springs.  Also, the adjustment screw appears to be on the face of the door offset from the centerline of the wheel.  Any help is appreciated.  Thanks.

Tom · Accepted Answer

It's difficult to tell what you have based on these photos, but I'm reminded of our 84-139. This may be what you need but look it over and see what you think.

If I'm right, and you do have the 84-139, then you must understand that these are not designed to come out. For some reason the manufacturer intended these to be permanent installations, which was an impressive display of wishful thinking on their part. What that means for you is that these can't be removed without breaking them.

Alternate image for 84-139
