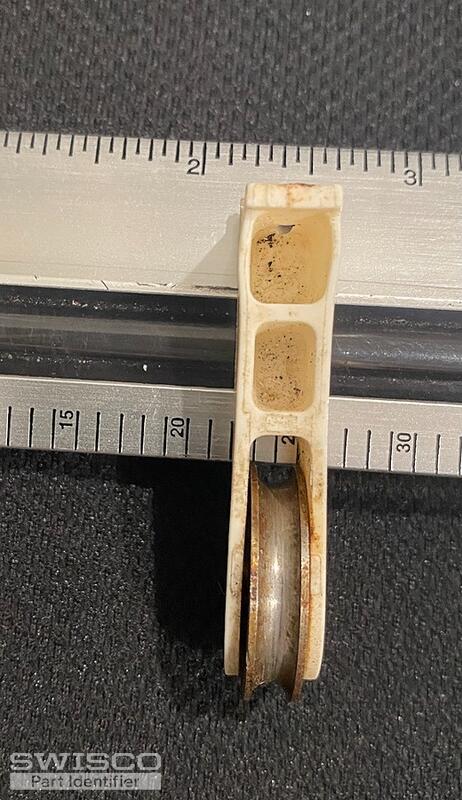

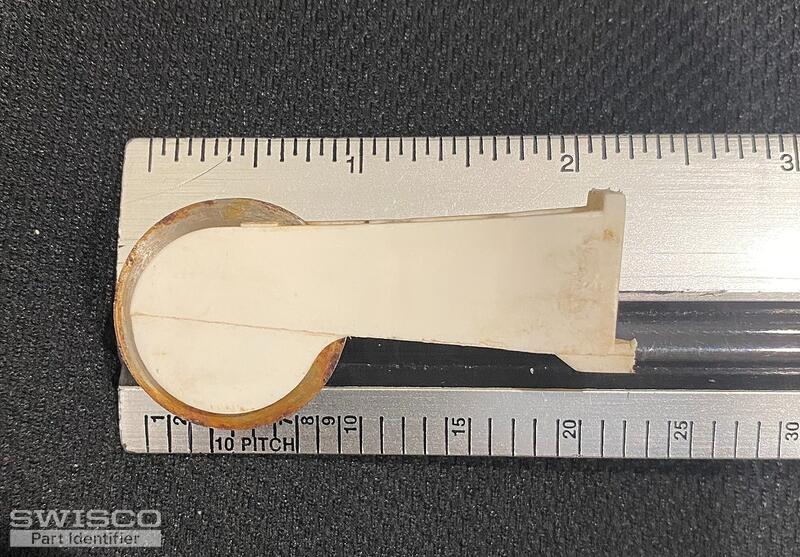

These are custom screen doors. This section of the part fell out when we removed the screen from the track. I have not attempted to unscrew the mitered frame to see where this part broke off from up in the frame.
If possible I would like to order new rollers but would like to have non metal rollers.
Can you assist? Appreciate your easy access to post inquiry.
Cyndi
Hello,
The part shown in your photos resembles the 84-152 shown below, but you would need to remove the corner from the screen frame to confirm. Also, please note that this part is only available with a stainless steel wheel. We apologize for the inconvenience.
It is important to use an exact replacement for the original part whenever possible to ensure that the door installs and functions properly. If the specifications of the roller and corner match the 84-152, we recommend sticking with that for your repair.
We're happy to help! Just let us know if you need anything else.
You would only need to drill the screen door frame if the corner key was "pinned" in place. Take another look at the video. Also, take a look at the 84-029SS wheel and bracket, which also uses a similar roller body to yours. If this is the setup you have in your patio screen door you might just need to remove the screw at the bottom of the door that holds the bracket at the bottom of the door.
