Seal for PGT Window single slide
Quick Learner from Florida
Jan 12, 2022 5:44 pm

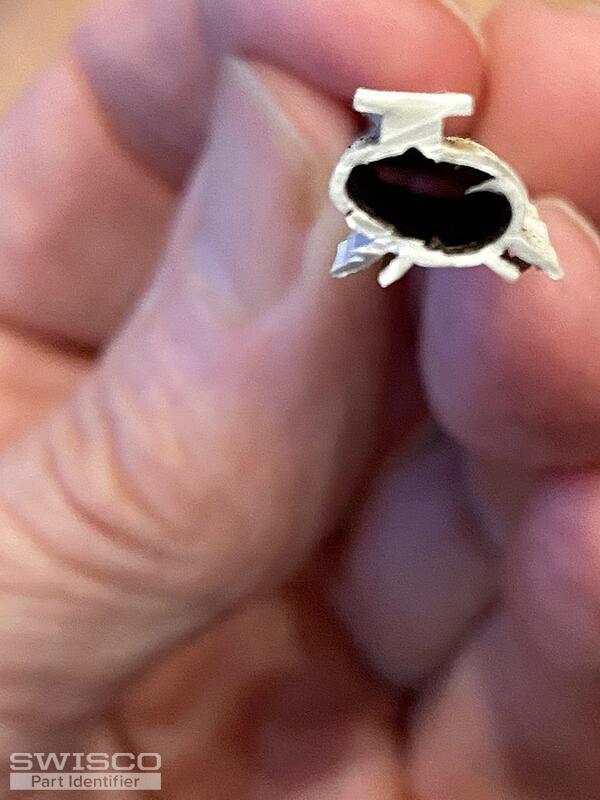

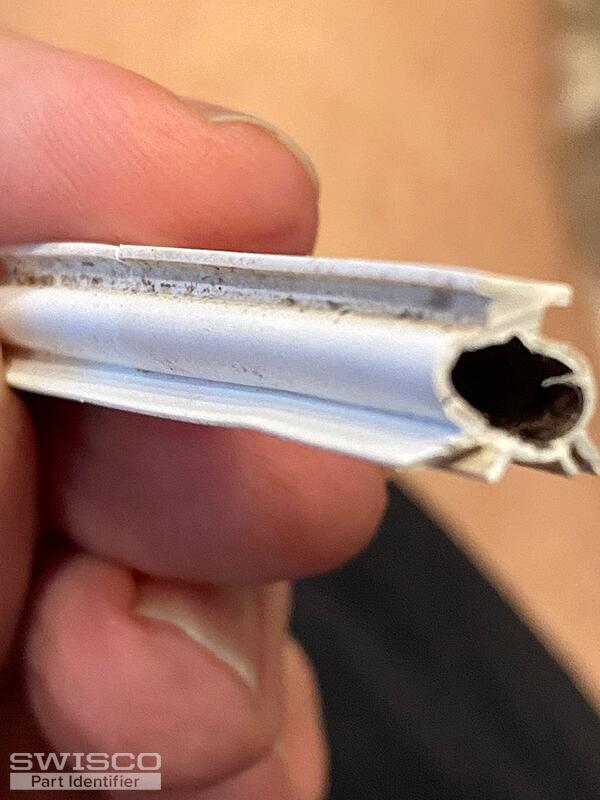

The kerf is 0.23" wide at top of T and T height is roughly 0.1" above the bulb. Bulb section as shown is oval at 0.35" by 0.2". It is assumed this might have been round. Has double fins for additional sealing as shown
2 user uploaded images
2 Replies
Bob from SWISCO
Jan 13, 2022 4:08 pm
See our 58-135 Bubble Seal to start. Look over the dimensions and see if you think this could work for you.
