Thanks for your time in evaluating the attached images.

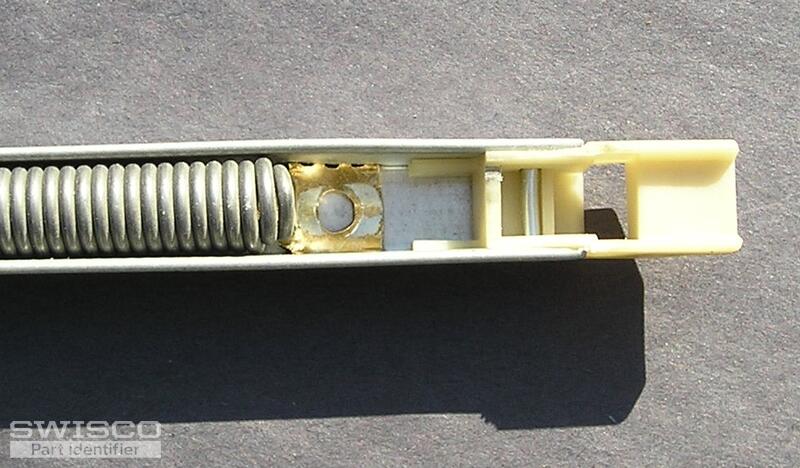

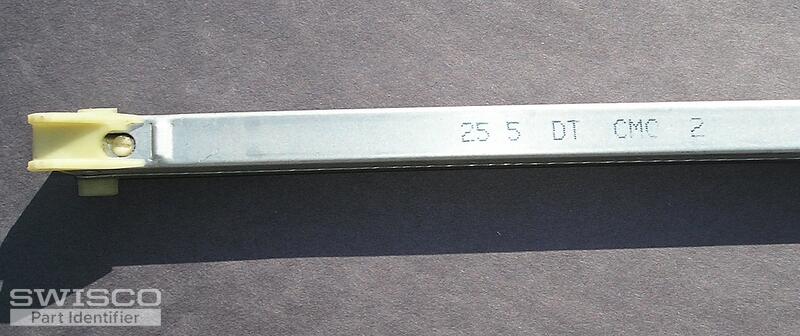

The appears to be a Caldwell Manufacturing Company (CMC) product from a home built in 2000. The steel "U" channel measures 26" long by 1/2" wide. The inked stamp reads [ 25 5 DT CMC 2 ]
We'll be needing two replacements.
Many Thanks
Drew
Tom from SWISCO responded:
September 10, 2018
Hi, Drew! I can't tell if your top attachment used to have wings like the bottom. Did they fall off? Is there another example of this balance you can check? If you have a winged top and the 1-3/32" shoe shown below, then you can use S385-26 with a 2550 stamp option. Alternate view of 15-004
However, if your top attachment is wingless, purchase S350-26 with the same 2550 option. |
