Searching for 25-9 kp5 cmc 17

A quick learner says:

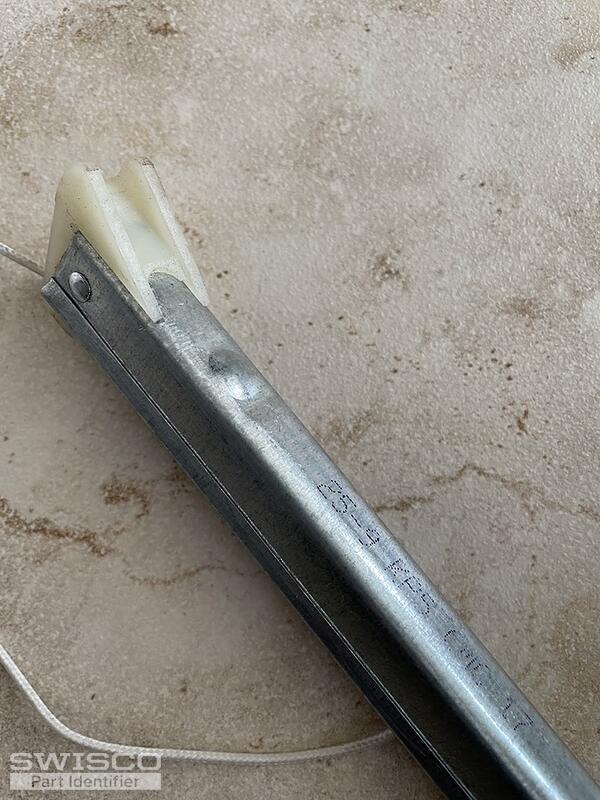

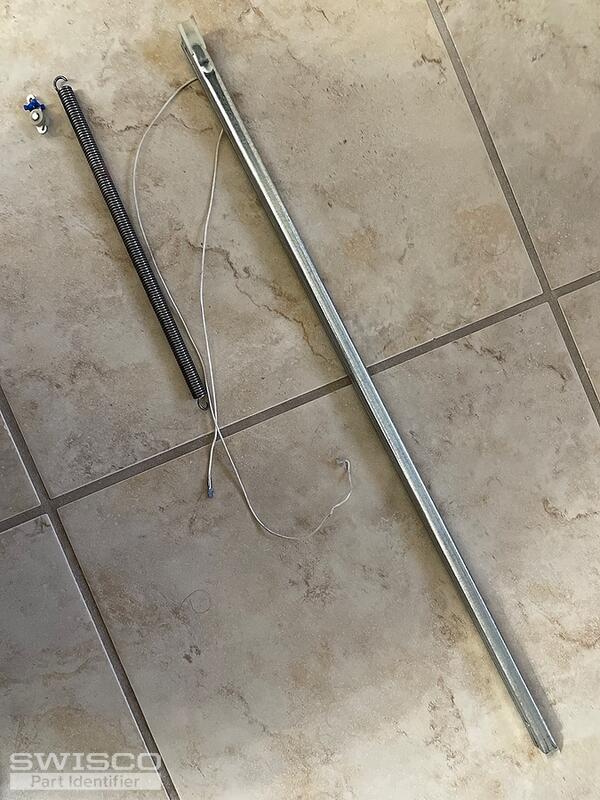

About 27" long and 5/8" wide. Stamp appears to say "25-9 KP5 CMC 17" while the window measures 45.5" wide by 29" tall.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

I'm afraid it's hard to get a good look at your balance's configuration from these photos. Can you show us clear and up close photos of the top and bottom fittings? The video below will go into more detail.

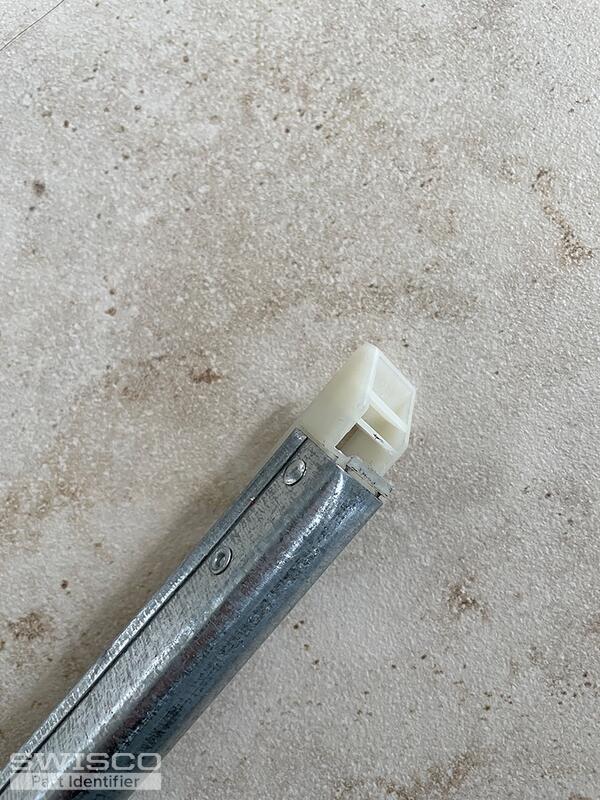

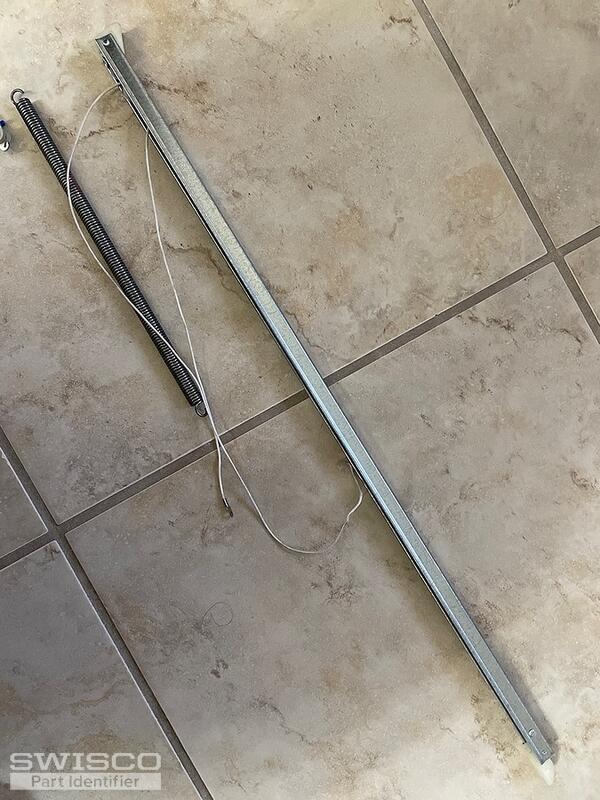

A home owner from ABQ says:
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:

Thank you! It appears you have either our S351-26 or S390-26 channel balance, depending on the depth of the bottom shoe. The Series 351 has a 1" deep shoe, and the Series 390 has a 1-1/8" deep shoe so you'll need to measure as shown below to pick out the best match. The stamp on your balance uses an older rating system that doesn't match any of our options, however. With that said, you will need to weigh your sash on a scale and refer to the chart under the product description on the S351-26 and S390-26 store pages to determine the appropriate spring strength option for your balance.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
