Searching for 26 4 caldwell em 27inch channel blocker

Question

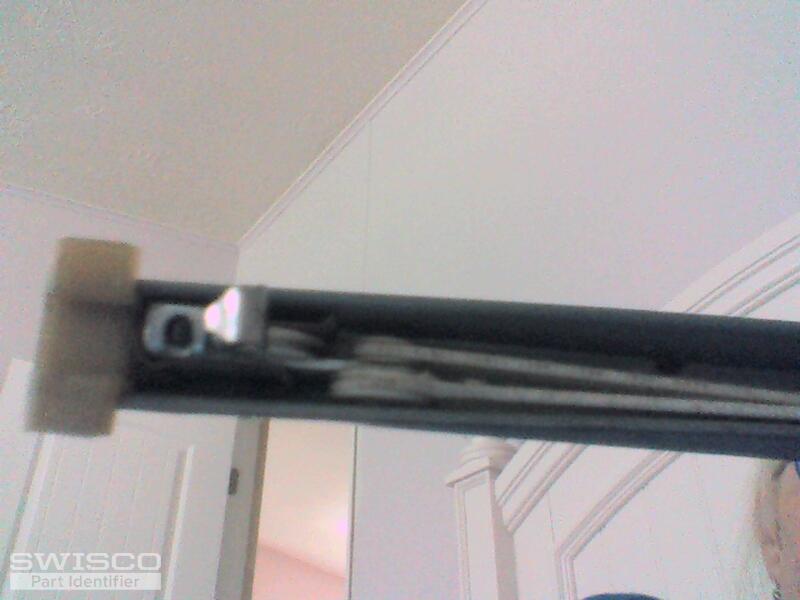

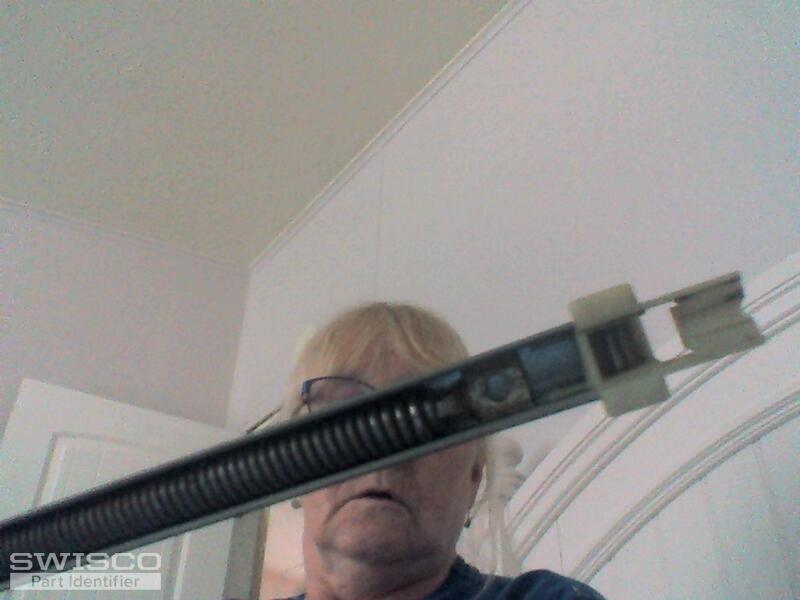

Looking for channel balance stamp says 26 4 Caldwell EM 27inches long I believe is a one inch depth number 15-005 the plastic is a darker yellow brown color . The windows are from 1994 .

Jasmine · Accepted Answer

Hey there! The channel balance you'll need as a replacement should be either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe. To determine which series is needed for your window. Look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

You'll need to select the 2640 stamp for a 19 to 26lb window.

Comparison of the S378, S380 and S385 balance shoes.

You'll need to select the 2640 stamp for a 19 to 26lb window.

Comparison of the S378, S380 and S385 balance shoes.
