Searching for 3mm pin for window slider wheel

Quick Learner

Apr 22, 2023 9:17 pm

Hi.

I purchased 7/16" nylon wheels with pins from you for my older aluminum sliding windows. I removed one of the old wheels and put the new wheel in its place. The wheel fits and the hole for the pin lines up, but the pin is too large for the existing holes. The holes in the aluminum frame are very close to the edge so I'm afraid to drill a larger hole to accommodate the pin.

The pins that came with the wheels are 4mm Outside diameter. Do you have pins 3 or 3 O.D?

Also, I had difficulty removing old wheel so I used a soldering iron to melt it. It was messy- first time I've used one.

Any suggestions?

Thanks so much,

Leslie

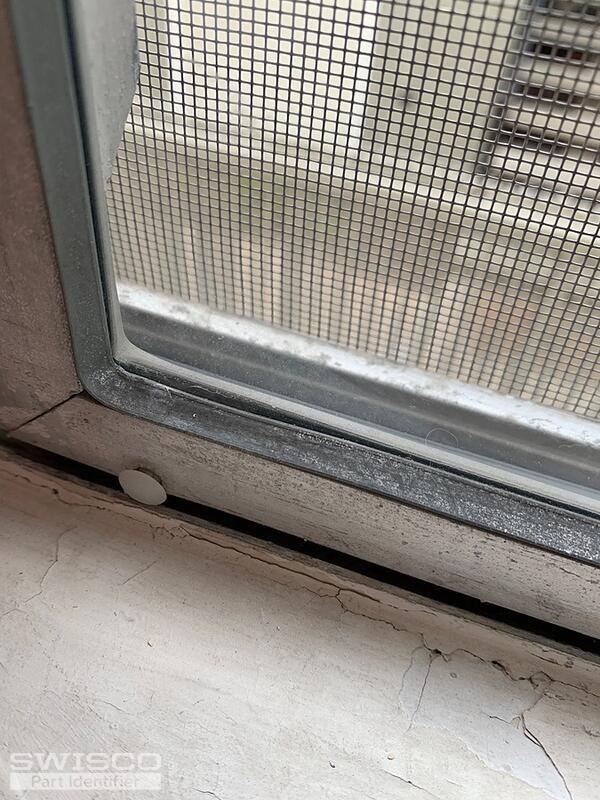

3 user uploaded images

9 Replies

Quick Learner from Santa Monica

Apr 24, 2023 9:34 am

I have ordered the 5/16" wheels from you. Hopefully they will work.
I used a drill to remove one wheel- much easier than melting pin.
I'll check back with you if I have more questions.
Thanks,
Leslie

Emily from SWISCO

Apr 24, 2023 2:15 pm

Hi there, Leslie.

We're glad to hear you got things sorted. Please let us know if you have any questions and we'd be happy to help!

Quick Learner from Santa Monica

Apr 28, 2023 8:16 pm

How do I keep the wheel pins from coming out of the frame? If I lift the window from the track, the pin can come out. Did I put it in backwards?

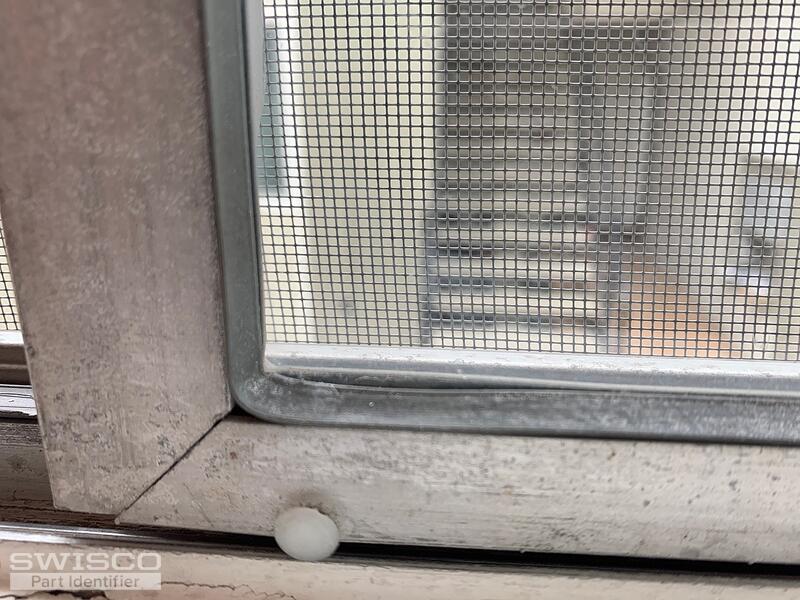

2 user uploaded images

Dave Sr. from SWISCO

May 2, 2023 10:26 am

Thank you for waiting while we looked into this. I'm not too sure how to keep the pin from coming out, I'm afraid. Looking at your photos with the sliding window in the main frame, I would install the pin from the other side so that the head of the pin slides up against the higher side of the window track. To keep the pin in place, you could try some type of adhesive on the head of the pin.

Quick Learner from Santa Monica

May 2, 2023 10:57 am

Thanks for looking into this.
I'll try both of your suggestions.
:-)

Dave Sr. from SWISCO

May 2, 2023 11:01 am

No problem! We're always happy to help. Good luck and let us know if you need anything else!

Quick Learner from Santa Monica

May 2, 2023 3:39 pm

As you suggested, I sprayed the tracks with silicone and turned the pins around. Now they're working great!!
Thank you so much.
Leslie

Dave Sr. from SWISCO

May 2, 2023 3:52 pm

That's awesome to hear, Leslie! Please let us know if we can be of further assistance and we'd be happy to help!
