Searching for 4100 dh/sl window parts

Quick Learner

May 20, 2018 4:05 pm

Hello,

I am looking for some parts for my windows. Unites Windows and Door MFG sent me to you. My window model is UWD-1 Series 4100 DH/SL

I am looking for what gasket I need Also I am looking for Tilt locks and another piece that prevents the window from being raised after a certain point. I have included photos of the last two items. Thank You

2 user uploaded images

9 Replies

Paul from SWISCO

May 24, 2018 10:21 am

Take a look and see if our 26-122 could work in your window. The pivot shoe you are showing looks similar to our 15-135. See if you agree. This pivot shoe can be used with a Series 770 balance if you should also need to replace them as well. For replacement options on the gasket, we will need to see a photos of the cross section with dimensions.

Quick Learner from Boston, MA

May 24, 2018 11:13 am

Thank you for the info. I will take a photo and send over a measurement of the windows tonight.

Quick Learner from Boston, MA

May 24, 2018 10:24 pm

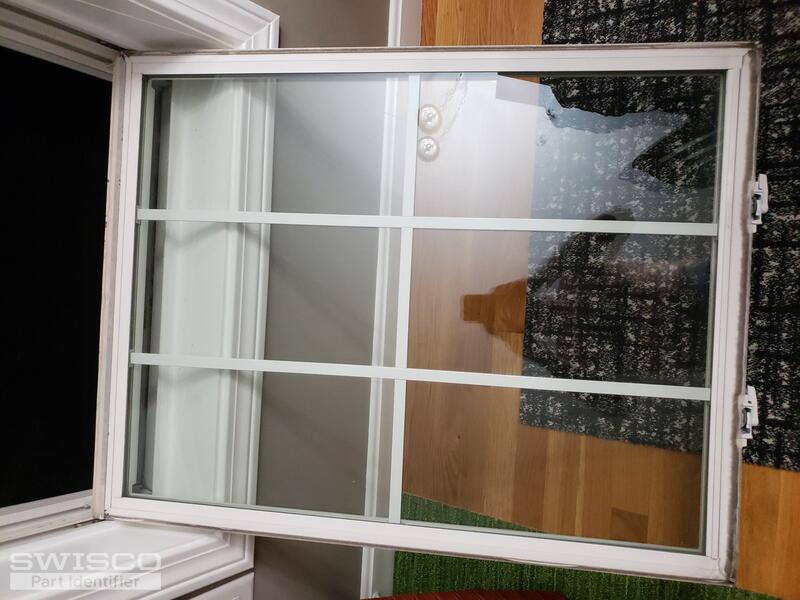

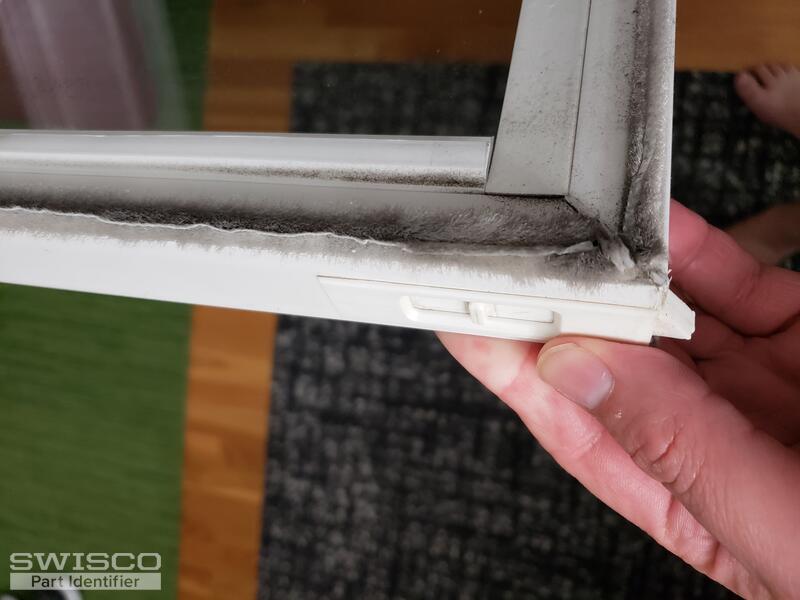

Here are the photos of one of the window and its panels showing the gaskets. I have included pictures of both top and bottom. I also have included a picture of the measurements of all my windows.

Thank You

5 user uploaded images

Paul from SWISCO

May 25, 2018 10:36 am

I've received your new pictures, but I'm afraid they don't tell me what your gasket is. I will need you to remove a sample and show us a clear picture of its end profile. We need to see the shape in order to identify a match.

Quick Learner from Boston, MA

May 28, 2018 8:10 pm

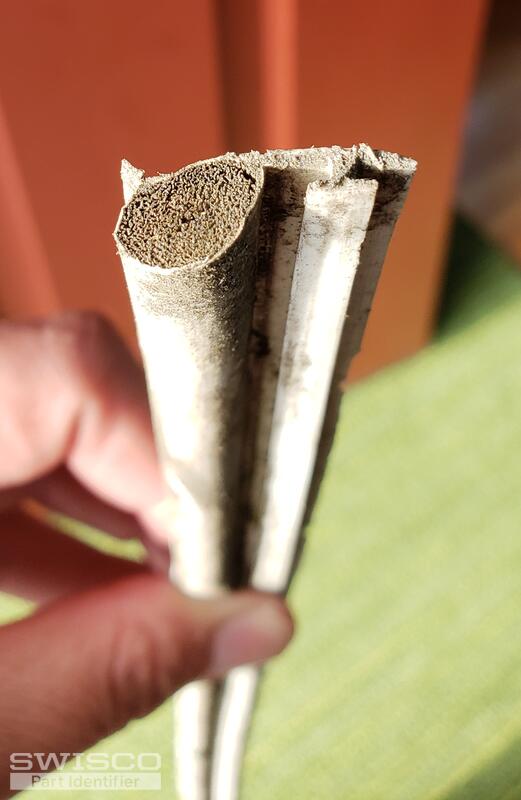

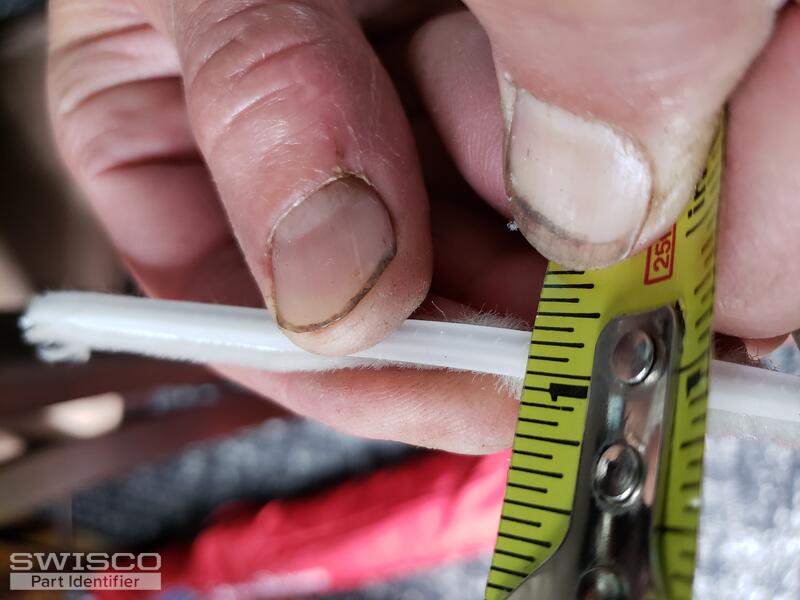

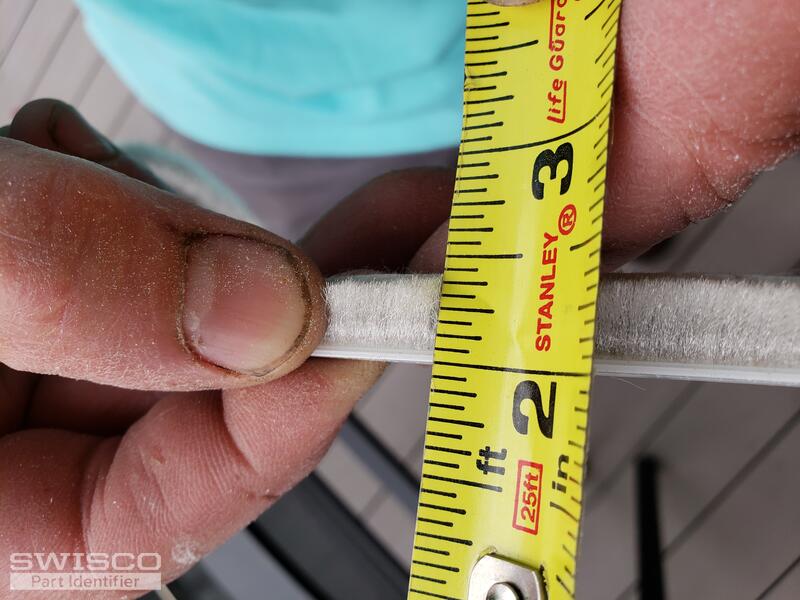

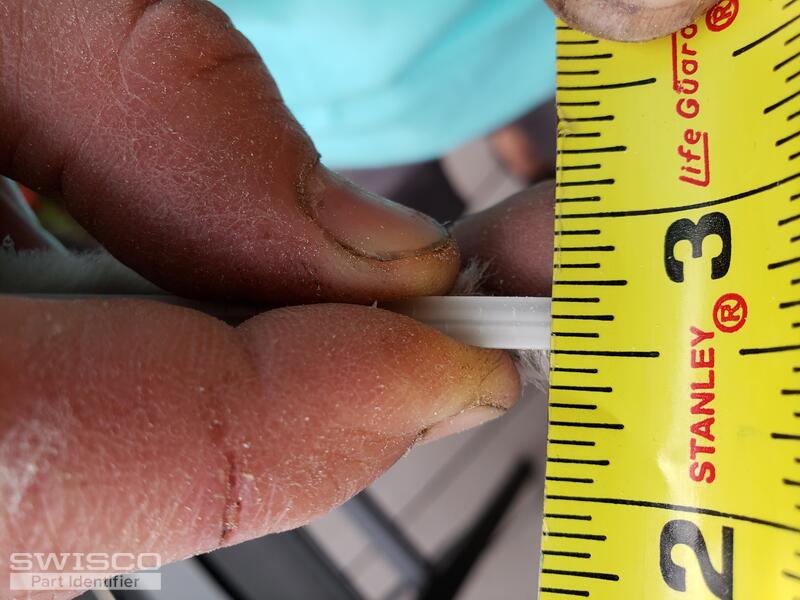

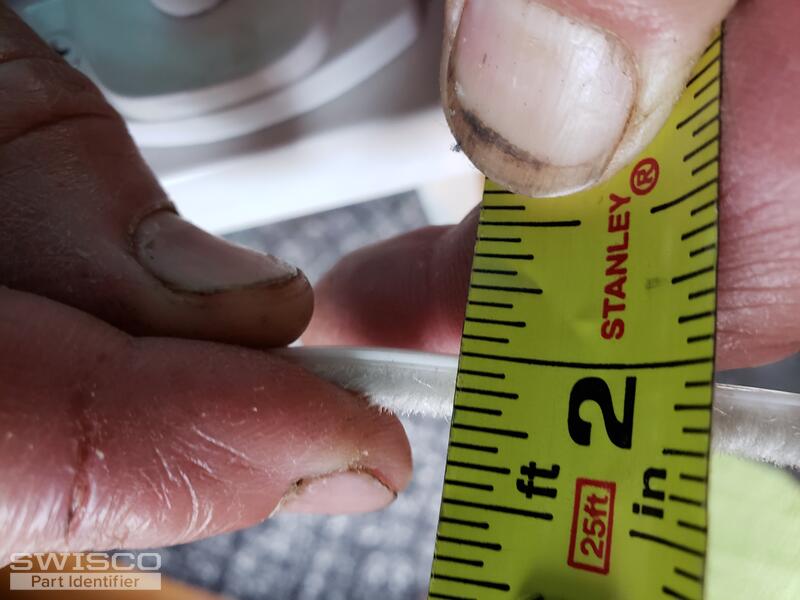

Here are the photos of the Side, Top, and Bottom Gaskets.

5 user uploaded images

Paul from SWISCO

May 31, 2018 2:53 pm

Aha, perfect. This is just what we needed to see. I was able to narrow it down to one of two choices: our 58-171 or 58-182. The measurements for these are pretty specific, so I can't tell what you need based on just a tape measurer, but I'm confident it's one of them. Look over our dimensions and let me know what you think.

Quick Learner from Boston, MA

Jun 1, 2018 3:34 pm

What about the other photo's? The top and side cotton gasket?

Paul from SWISCO

Jun 6, 2018 10:03 am

I received your photos, but I cannot tell what you have based on just a tape measurer. If you look at the store page for the two parts I mentioned, you'll see that the dimensions are very specific. You will need to measure as carefully as you possibly can and use your best judgement on what the best match is.
