Searching for 6.5 multi point lock

Quick Learner

Oct 3, 2019 11:32 am

We have a lock which appears need of replacing. For the sliding glass patio door. Multi point measures 6.5 inches from screw to screw. The locks measure 2 7/8. The lock mounts flush in the door. It is a vinyl door. The only identification is New Zealand.

1 user uploaded image

4 Replies

Tom from SWISCO

Oct 8, 2019 12:32 pm

Hello! This looks like a match for our 82-238. The only significant difference I see is that your mortise appears to lack its face plate. Look over our photos and dimensions and let me know what you think.

Quick Learner

Oct 10, 2019 11:08 am

Hey Tom: please find enclosed additional photos. The dimensions of 82-235 on your site do not appear the same. Do you still believe it will work. Thanks, Don

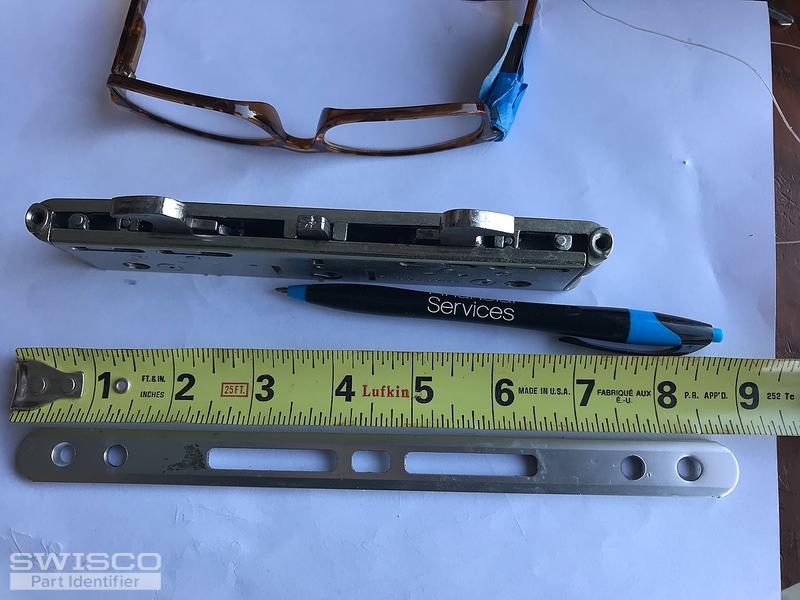

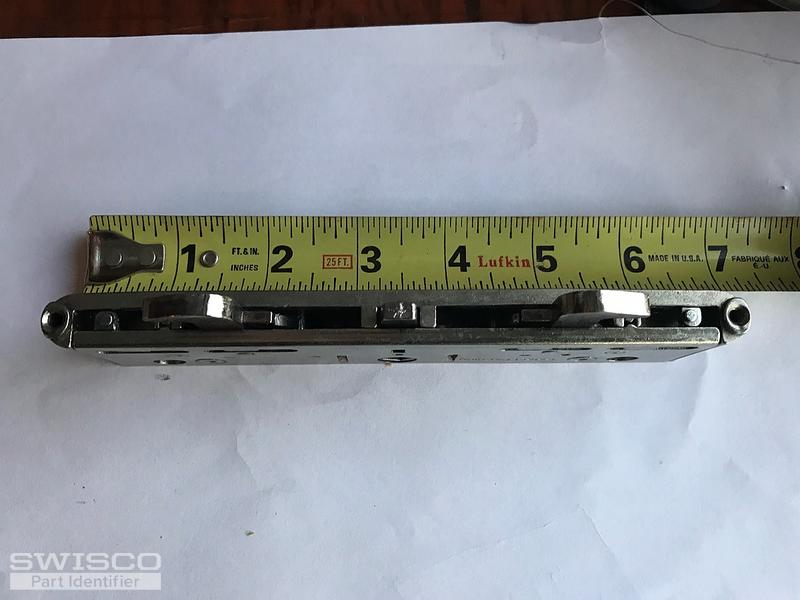

4 user uploaded images

Tom from SWISCO

Oct 10, 2019 2:07 pm

I'm afraid I can't make out your precise dimensions from this photo. Can you tell me where they differ, exactly? It really does seem to be our best option.
