Searching for 71301P

A quick learner says:
Looking for a replacement closer for my vinyl casement window. I believe the teeth are stripped out. Won?t close all the way. Seems to slip when it?s almost closed. I?ll attach pictures with numbers.
Thumbnail of the uploaded file named CC2225A9-3DC4-4D1C-B1F3-9984033B6B9C.jpeg
Thumbnail of the uploaded file named 894420D4-C943-4A83-B9E3-F7597C0CBD37.jpeg
Thumbnail of the uploaded file named 9DEB0D6F-1ABA-4FC3-B617-081000060B22.jpeg

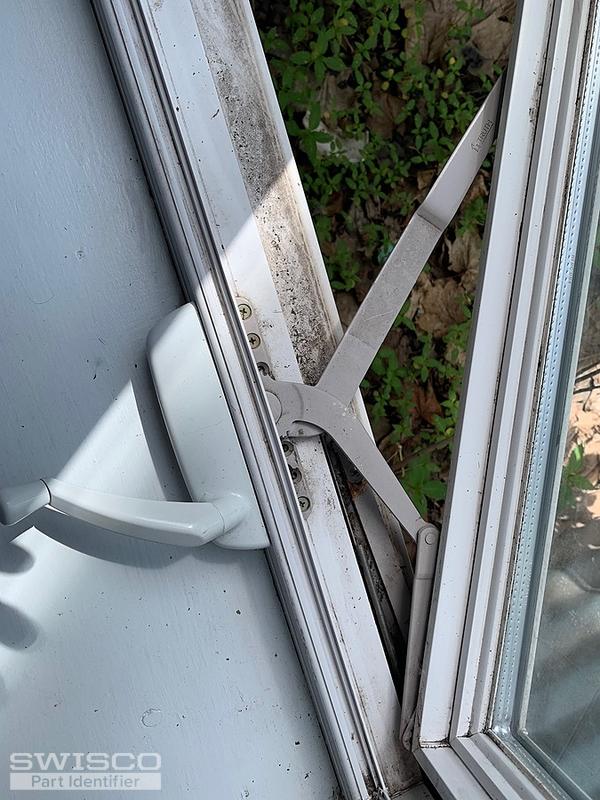

Thumbnail of the uploaded file named E8344189-3A87-4A34-A6E5-9181F58F484B.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We should be able to help, but we will need a bit more information. Before I recommend anything, can you disconnect the long straight arm from the track and show me the black slide at the end of it?

A quick learner says:
Hi Tom, here are 3 picks of the same part you requested. Please let me know if you have a replacement closing mechanism that will work. Thanks, Steve

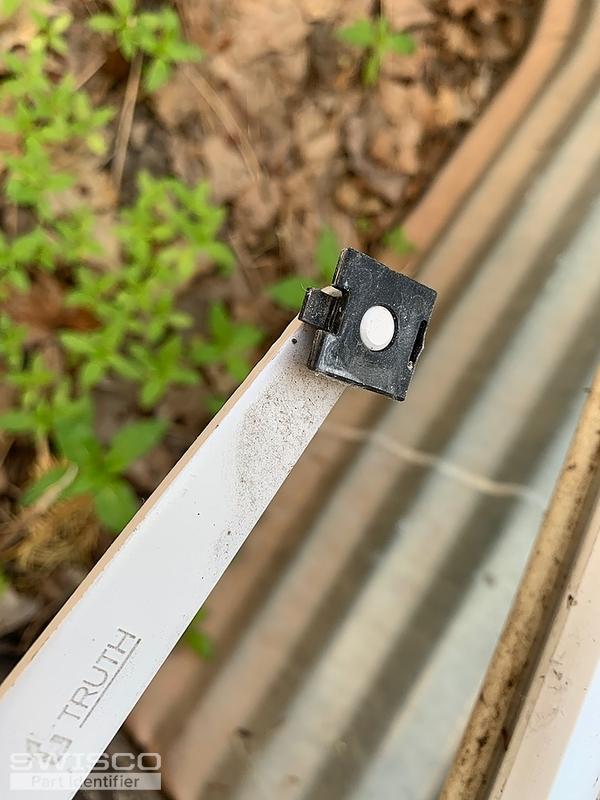

Thumbnail of the uploaded file named 295166D5-30B5-464D-9EFA-3BDCE91E3B17.jpeg

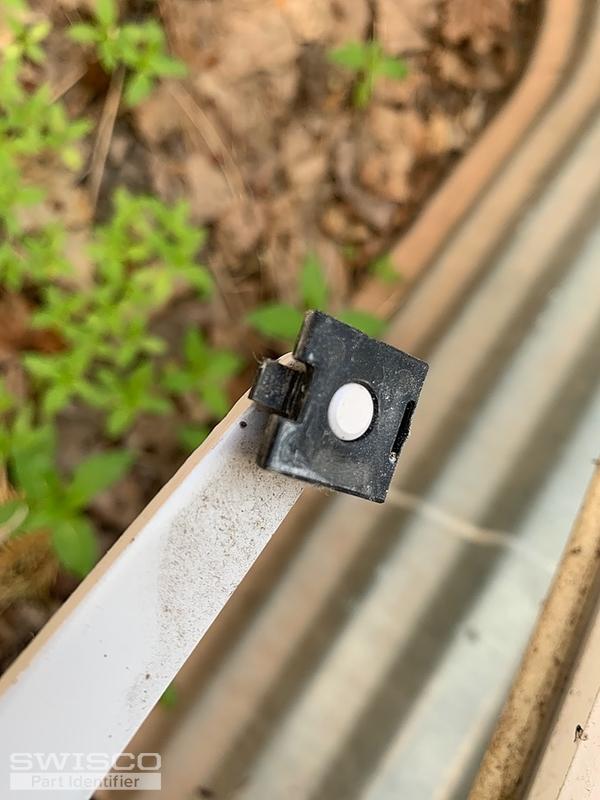

Thumbnail of the uploaded file named 11CF68F6-1EDF-46DD-8C8C-2BA432420DE7.jpeg

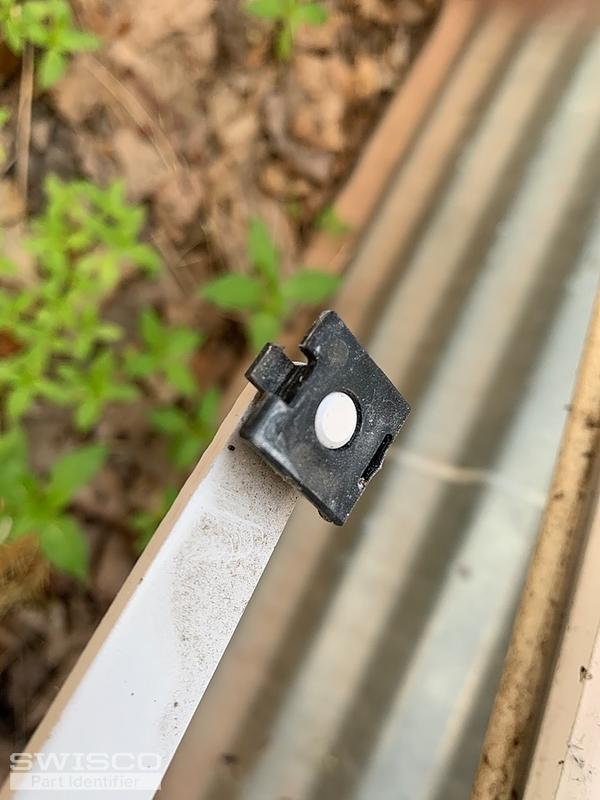

Thumbnail of the uploaded file named D3EF016A-5CFD-4AC4-A774-6A9DE81CBA9A.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks, this is exactly what I needed to see. Based on this photo, I recommend t he 39-253LB and 39-253RB. This is the new Encore style whose handle and covers are sold separately; see our 39-451 and 39-452, respectively.

You can reuse your black slide, but if that's not possible then see the 39-529.

A quick learner says:
Thanks Tom!
