Searching for 7177-18

Quick Learner

Jun 3, 2023 2:48 pm

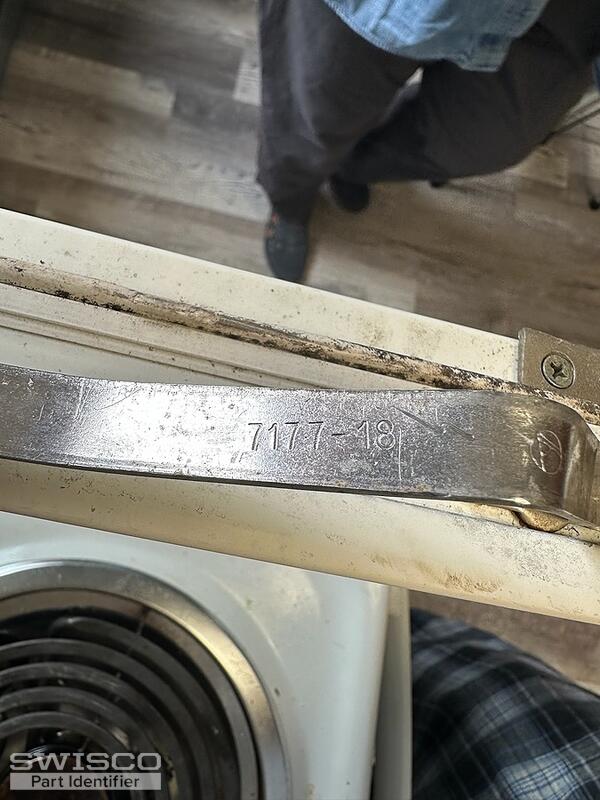

Part needed. Andersen vent window positioned piece on bottom of window. This is a vintage vent window from early 1990's. The window type has a split arm operator that opens window to the right. Thank you.

2 user uploaded images

4 Replies

Casey from SWISCO

Jun 6, 2023 10:53 am

Hello,

We'd be happy to look into this for you but the numbers shown in your photo do not cross reference to any of our replacements. Could you show us the entire assembly and go into more detail regarding its function and where it installs? The more information we can collect, the better. Thank you.

Quick Learner from Lake Placid NY

Jun 6, 2023 1:32 pm

Hi Casey,

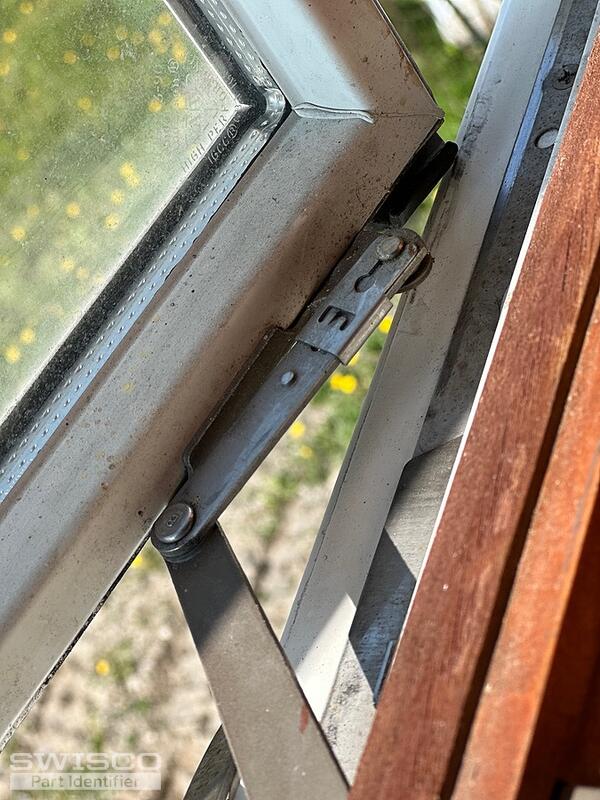

This additional photo I'm uploading is the topside of the same original upload. Please check it out.

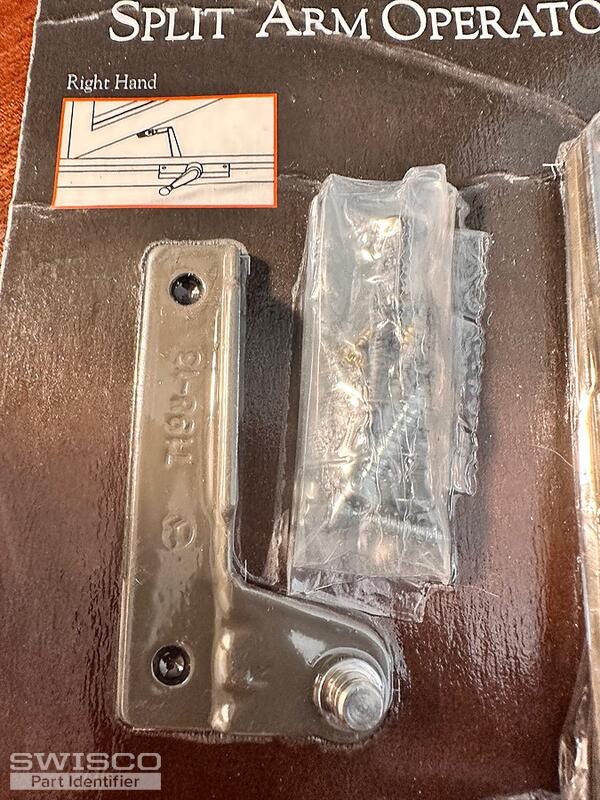

Also is a photo displaying the bronze brace/bracket w/2 screws that the damaged part is attached.
Read below.

I'm away from my rental this week.
Already I've purchased 10" hinge but that is of the damaged part.

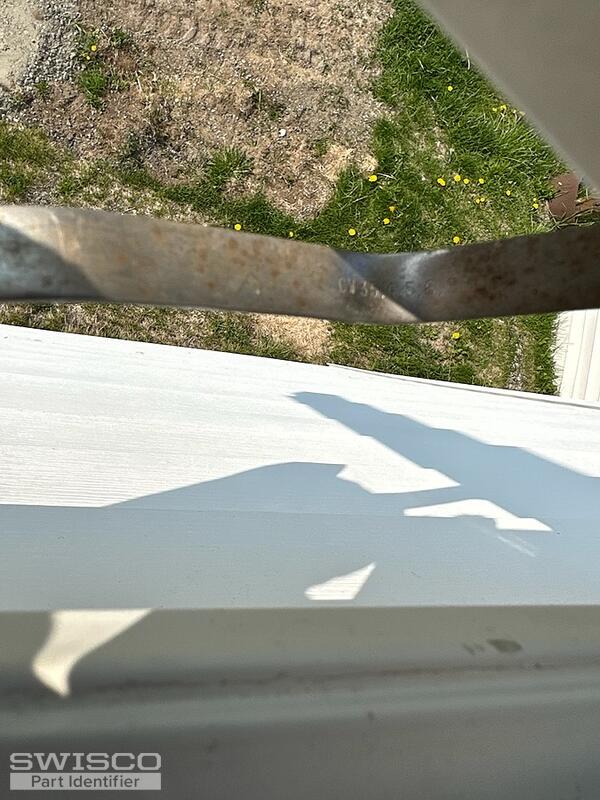

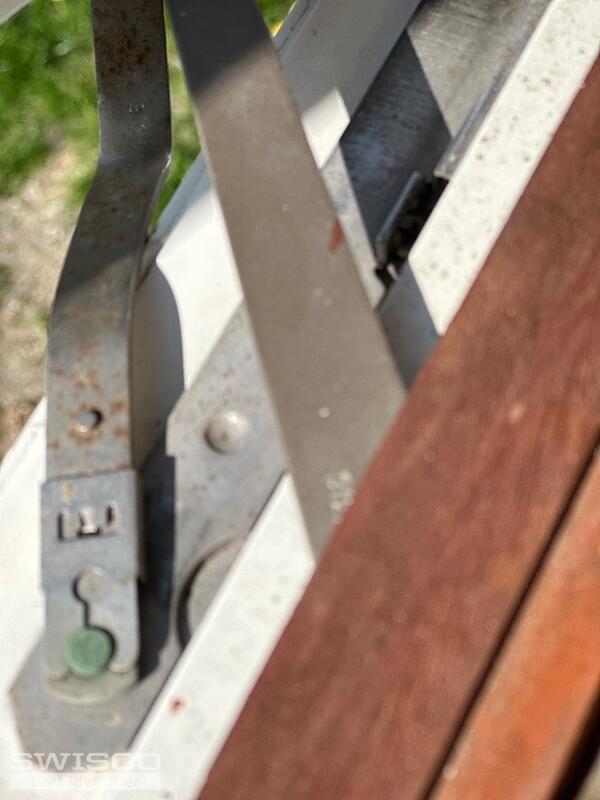

I'm looking for a 4 to 6 inch piece that would attach to the bronze brace/bracket. The bracket itself is in the split arm operator package and is located at the bottom of the window by 2 Phillip screws. The damaged part m that's bent would be normally straight and is seated onto the raised head on it. bracket/brace item number #7198-13. The part I need is the support part that will attract and sit on the raised head.

Our tenant forced the window closed and bent the part.

Thank you

5 user uploaded images

Casey from SWISCO

Jun 7, 2023 8:32 am

Thanks for getting back to us. The hardware shown in your photos reminds me of the 39-146 and 39-147 Andersen operators, which are used with the 39-160 and 39-161 rail brackets. Take a look and compare the specifications shown on your product pages to yours. You mentioned that you already purchased hinges but you could also take a look at the 36-048 hinge set if you need more down the line.
