Searching for 86 26-3 hc5 cmc45

A quick learner says:
March 19, 2023

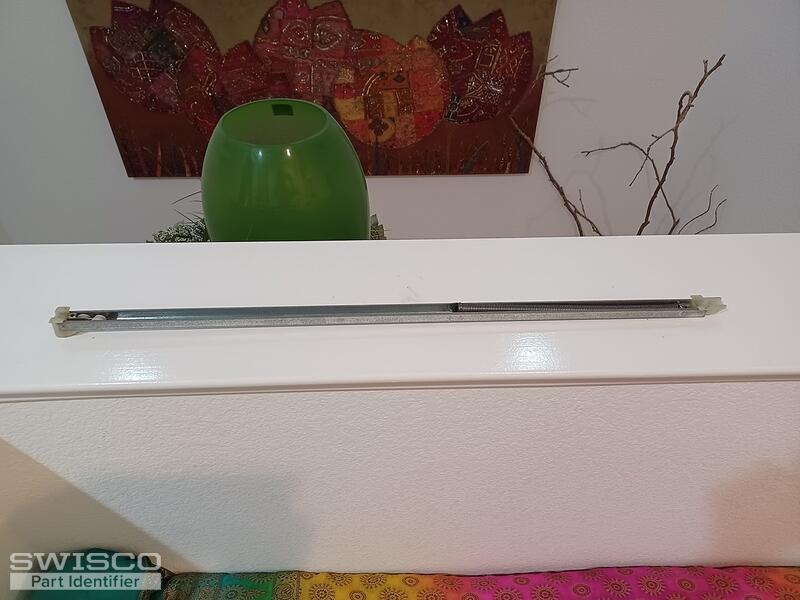

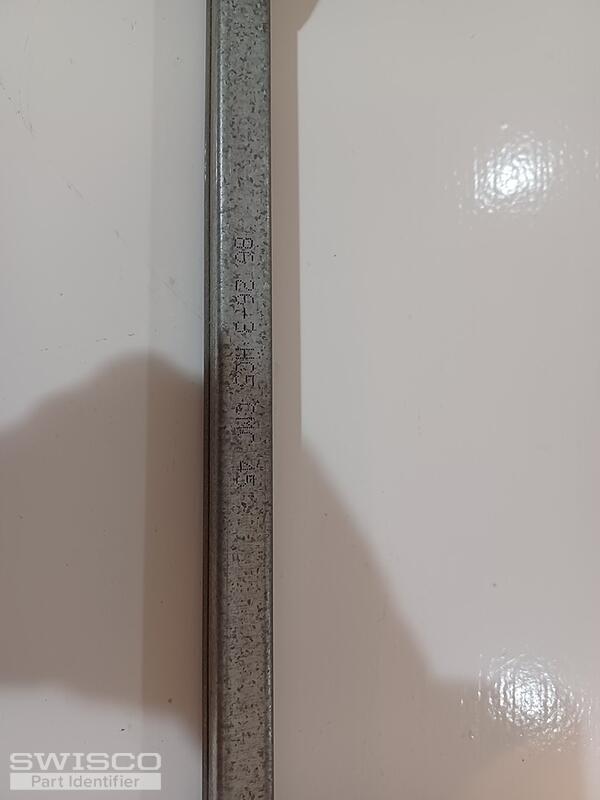

I need part window tuckle sash balance 86 26-3 hc5 cmcsa 45. This is how my window looks like home was built in 2008

Thumbnail of the uploaded file named 16792507365006148507874251549472.jpg
Thumbnail of the uploaded file named 16792529504684619682036795060785.jpg
Thumbnail of the uploaded file named 16792529785125472660746566430785.jpg
Thumbnail of the uploaded file named 16793651059088598446218835340000.jpg
Thumbnail of the uploaded file named 1679365219887745581504999050582.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 21, 2023

Hey there! Your balances appear to be either the S380-27 or the S385-27 channel balance with a 2630 stamp for a window weighing 13 to 19lbs. To determine which series you have, you'll need to confirm the depth of your bottom shoe. It should be either 1" or 1-3/32". Use the dimensions below to confirm.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
