A quick learner says:
July 17, 2022

Hi I need replacement for my window as it does not stay up when it is open.

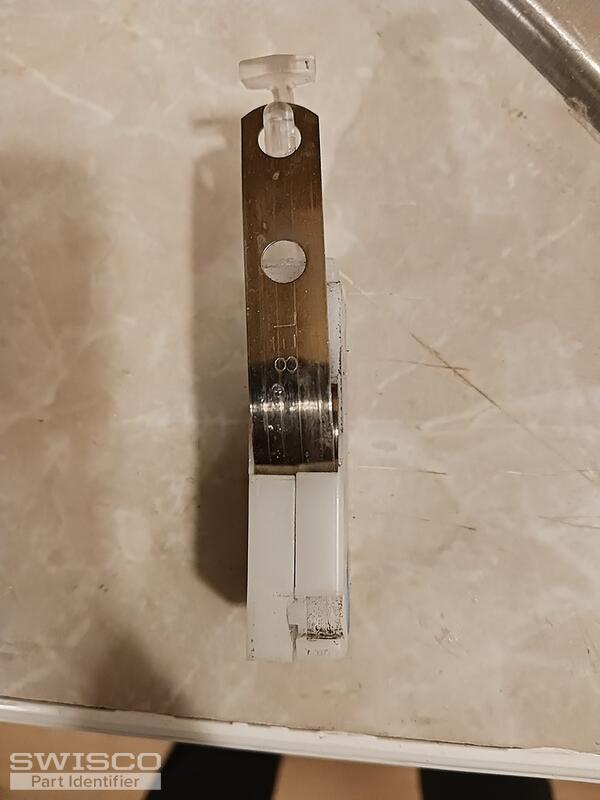

I believe it is an 8 lb show need because I see a little 8 stamped on the coil

How soon could this be view for advise on which piece to purchase for inspection, as I have an inspection coming up very soon

Thank you in advance for your help

Lori

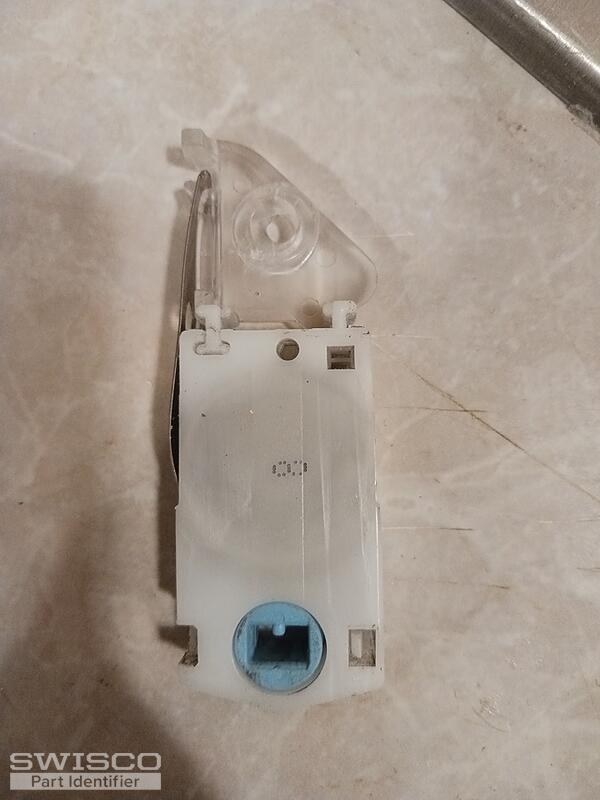

Thumbnail of the uploaded file named 20220715_202817.jpg

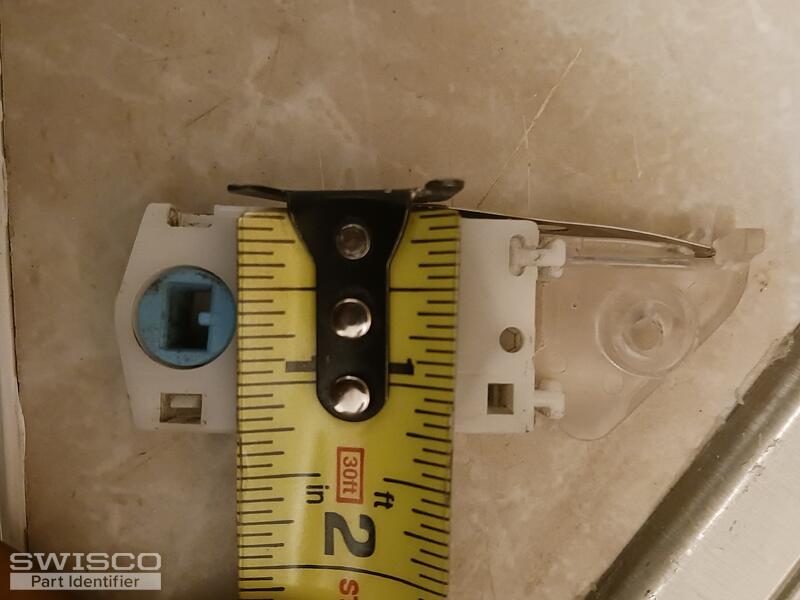

Thumbnail of the uploaded file named 20220715_202829.jpg

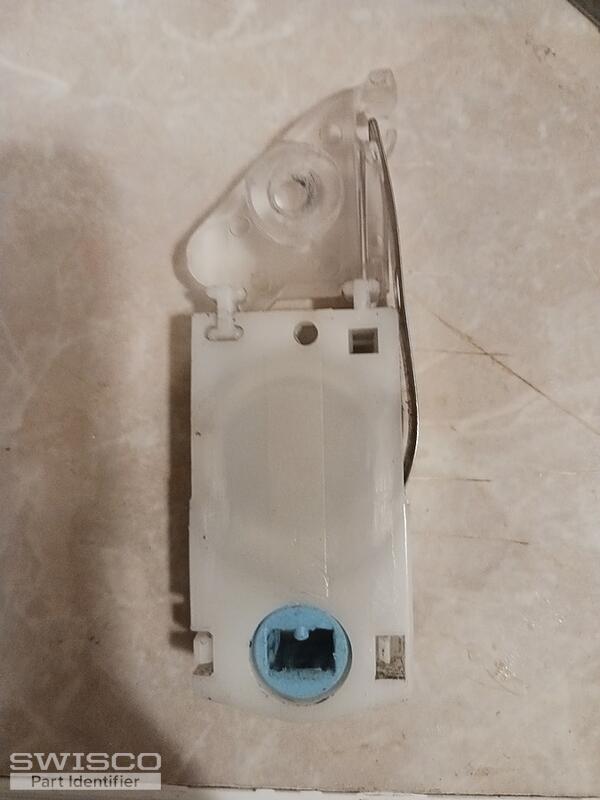

Thumbnail of the uploaded file named 20220715_202838.jpg

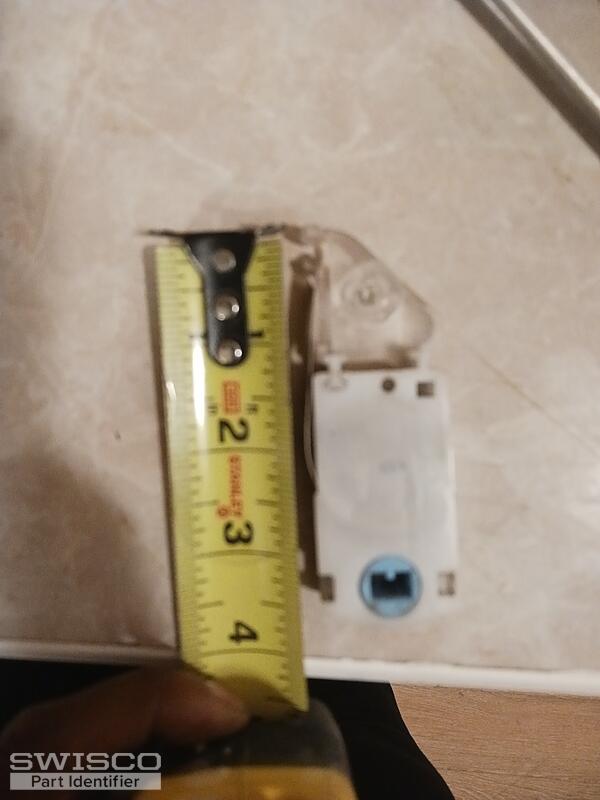

Thumbnail of the uploaded file named 20220715_202929.jpg
Thumbnail of the uploaded file named 20220715_203041.jpg
Profile picture of Emily
Emily from SWISCO responded:
July 22, 2022

Hi, Lori.

Your hardware looks like a match for our 15-087 which uses the Series 180 coil springs and 16-031 bracket. Since your spring is stamped with the number 8, see the S180-8 8 pound coil spring. Look over the specifications for these parts and see what you think.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Mounting Bracket
Mounting Bracket
16-031
$0.90
8 lbs Series 180 Coil Balance
8 lbs Series 180 Coil Balance
S180-08
$5.15
