Searching for Balance channel for 14-2 Ka cmc 11

Quick Learner

Feb 23, 2018 1:18 pm

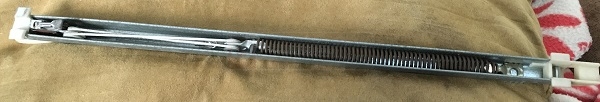

This is the part we need to replace. The numbers are 14-2 KX CMC 11. It is for a small bathroom window.

Thank you
Muhammad T

2 Replies

Paul from SWISCO

Feb 27, 2018 4:54 pm

If the metal bar measures 15" long, then you will need S380-15 or S385-15, depending on the width of your bottom shoe. Measure as shown below to be sure. S380-15 would use a 1" shoe, and S385-15 would use a 1-3/32" shoe. The option will be 1420, if your window sash weighs between 6 and 10 pounds.

Comparison of 15-004 and 15-005
