Searching for Caldwell series 300

A quick learner says:

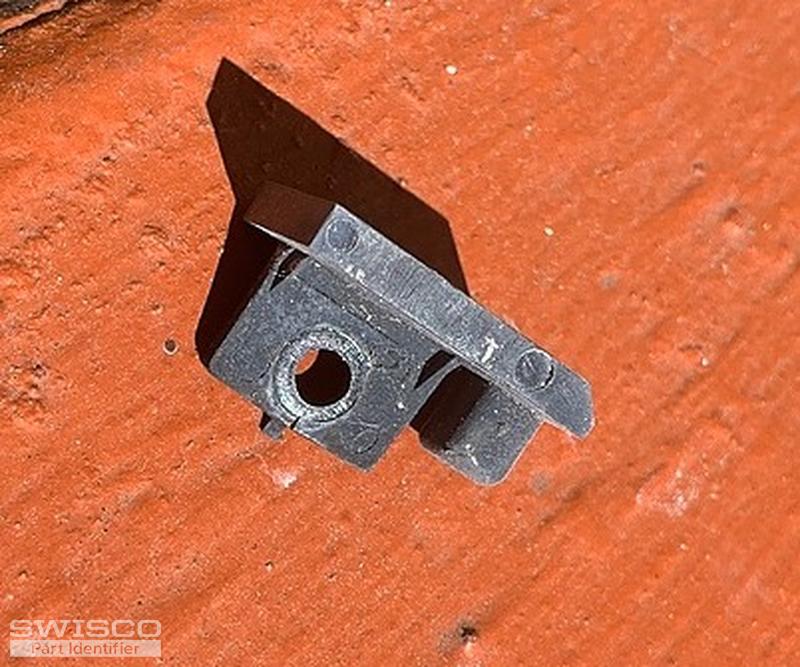

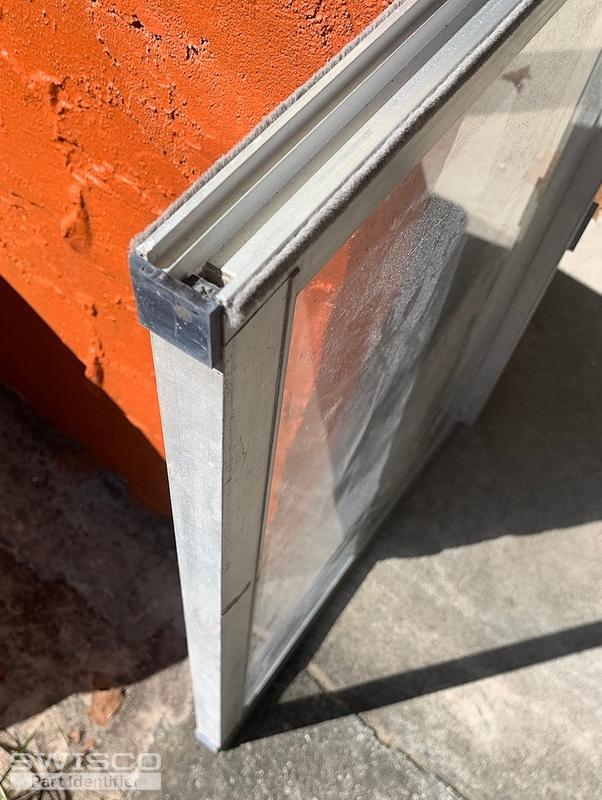

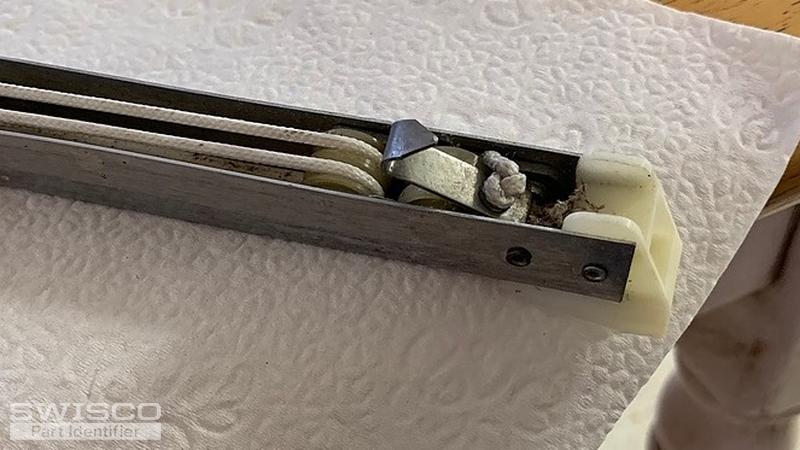

I need repair parts for sash The top guide is broke. I have sent pic to you. And will give you a call about
Thumbnail of the uploaded file named ADD01F84-3591-44B4-9B45-EC7388DCFE07.jpeg
Thumbnail of the uploaded file named 45088548-B87C-4331-830E-684198EE617E.jpeg
Thumbnail of the uploaded file named 36F579A2-7822-45DF-945A-9F6FFCC7749E.jpeg
Thumbnail of the uploaded file named 376E3037-7888-4367-9C35-51F3054EEECE.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Based on your photos, I recommend our S390-18 channel balance with a 1730 stamp. This comes with a 19-002 top and 15-001 bottom, so as long as those match up then you should be good to go.

If the 15-001 shoe doesn't match, though, let me know. There are other possible versions and I'd be happy to recommend something closer to what you have now, assuming I'm off the mark.

A quick learner from Largo fl says:

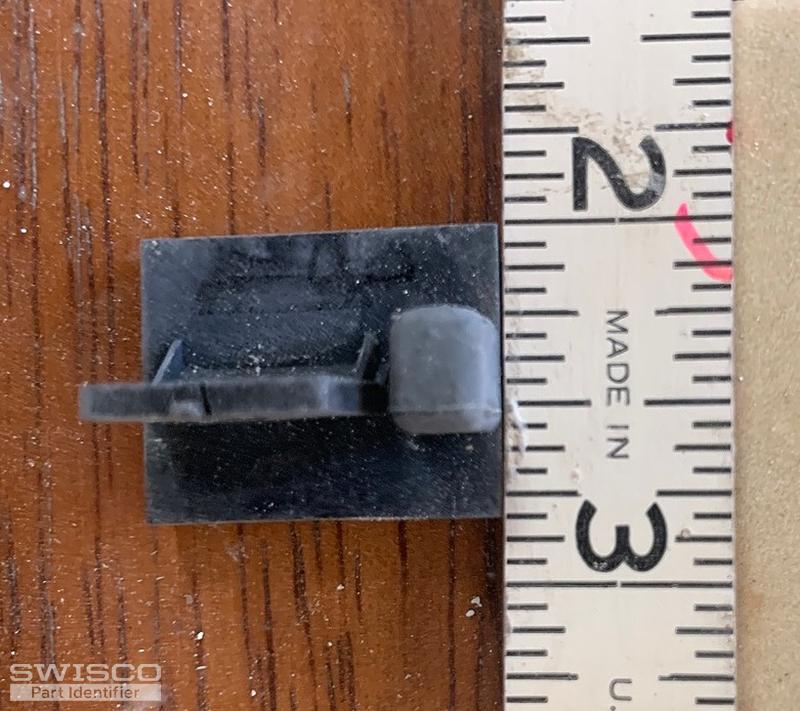

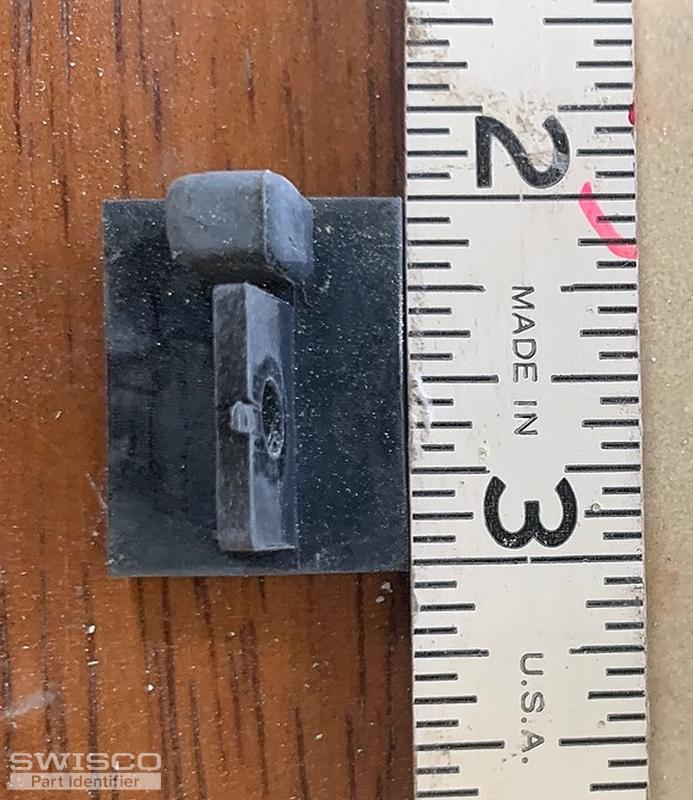

Sash cam needed thanks for your help
Thumbnail of the uploaded file named 1A641217-E4A4-444A-AA58-96A65D8FB86E.jpeg
Thumbnail of the uploaded file named 32945F54-A727-4568-B2F3-E390D3862B5F.jpeg
Thumbnail of the uploaded file named 040B61D5-FAE6-422F-97BB-2A010156CB2C.jpeg
Thumbnail of the uploaded file named A710E973-401E-48A9-BB97-BA7B5CEAB062.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! This particular part would be a match for our 18-187.  Don't forget to check the depth of your balance's bottom nylon fitting, as well. That's an important detail to confirm. If your shoe isn't 1-1/8" deep, we can find you something closer.
