Searching for Channel balance 3610 BSI

Quick Learner

Jan 7, 2019 2:54 pm

Hi,

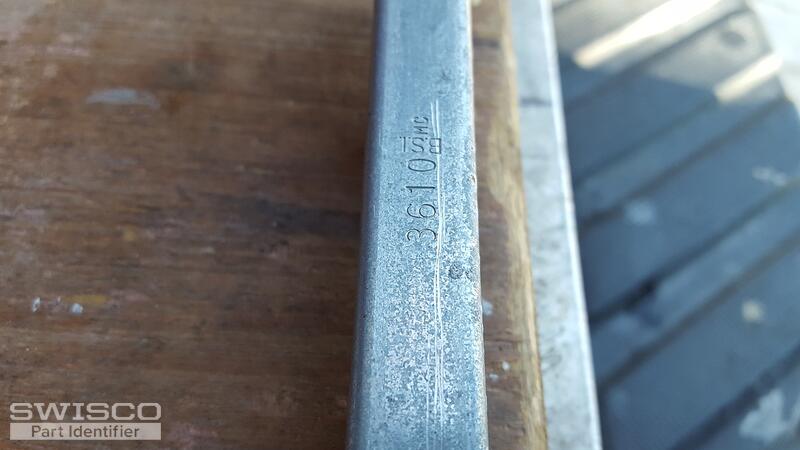

I have a 37 inch long Channel balance with the ends as shown in the pictures. Do you have a complete unit like this? it's stamped with 3610 BSI.

5 user uploaded images

6 Replies

Handy Person from Ormond Beach, FL

Jan 7, 2019 3:03 pm

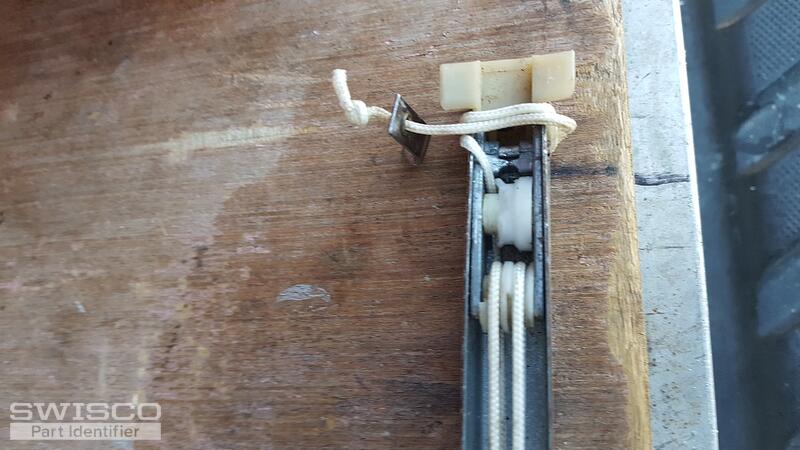

Three more pix. How about just the roller assembly?

Thank you,
Bernie

3 user uploaded images

Tom from SWISCO

Jan 10, 2019 11:20 am

Sure, this looks like it could be either our S380-37 or S385-37, depending on the depth of the bottom shoe. That's the only difference between them. Look them over and see what you think.

Handy Person from Fl

Jan 15, 2019 9:37 am

Thank you Tom,

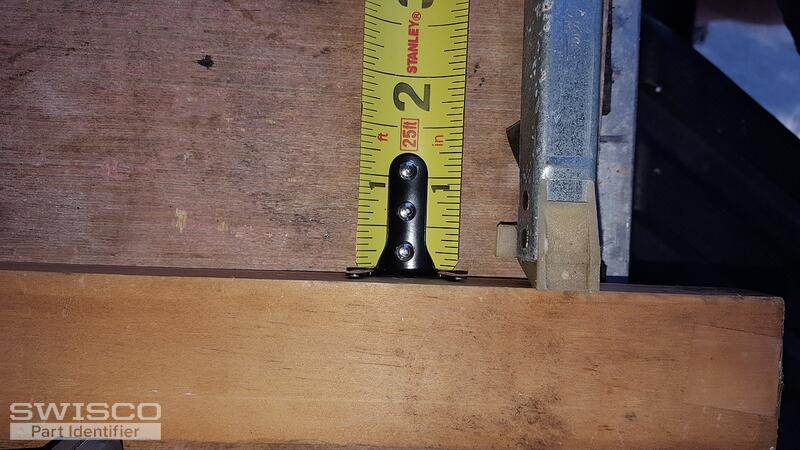

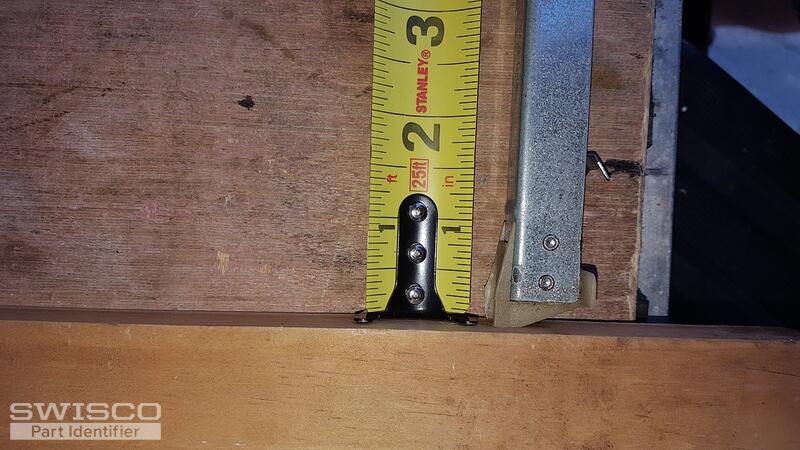

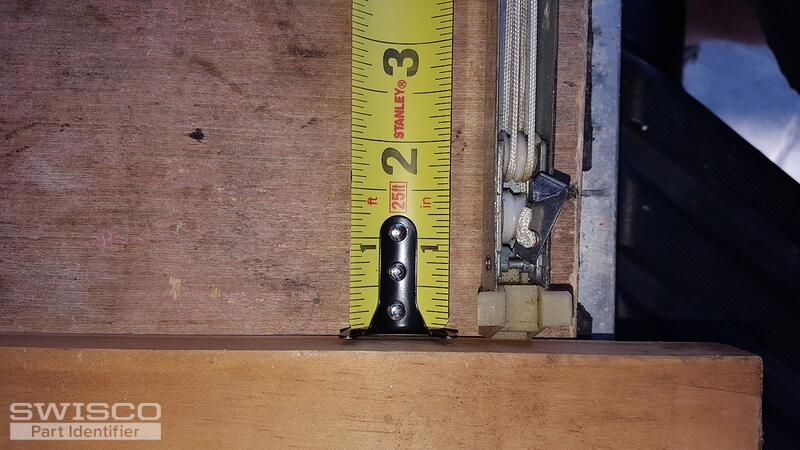

It's definitely not the S385-37 because the depth the shoe is definitely not 1 3/32".
However, the old shoe is 7/8" whereas the S380-37 measures 1". Could mine have worn out 1/8"? In any case I'm going to go ahead and get the S380-37 because even if it should only be 7/8" I can file it down to make it fit. What do you think?
Thank you

Tom from SWISCO

Jan 15, 2019 12:26 pm

Oh definitely, it's safe to say that your shoe was once 1" and wore down from use. It happens all the time. Worst comes to worst, you can file it down like you mentioned.

Handy Person from Fl

Jan 15, 2019 2:42 pm

Thank you, I really appreciate your help.
