Searching for Daystar casement window control bar

Quick Learner

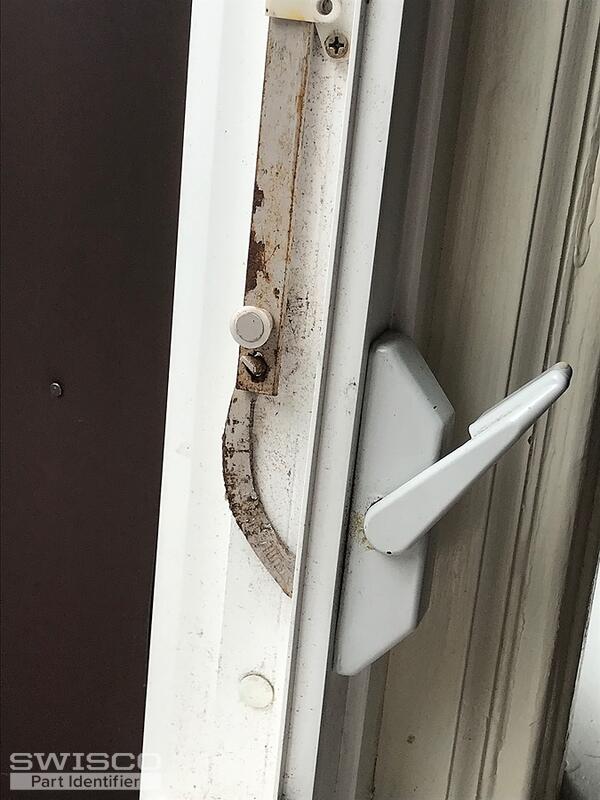

Daystar / Morningstar

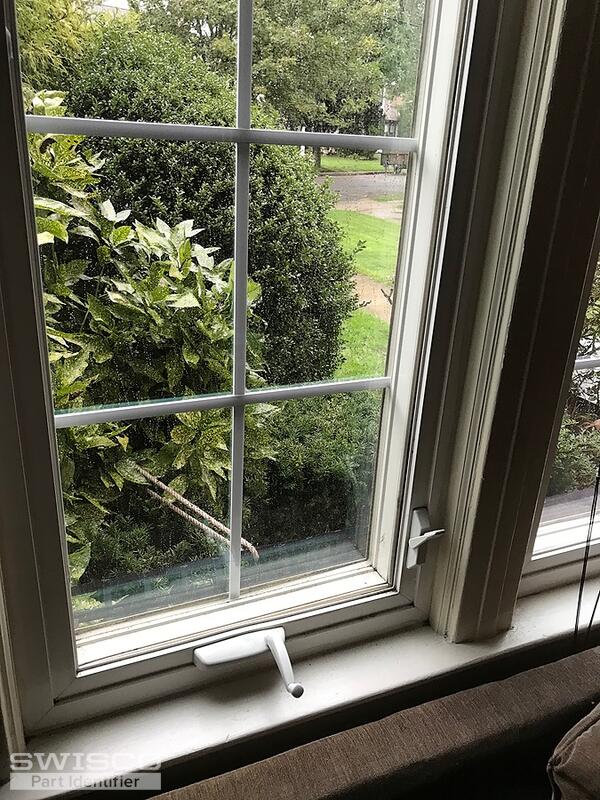

Casement window
Metal bar and attachments
With a plastic guide clip
5 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unfortunately, we do not carry a sash lock with the same bend in the arm that attaches to the tie bar. With that being said, one of the multi-point locks that we've related on this page may still work for you depending on how the specifications shown on our product pages compare to yours.

We also carry the 39-417 and 39-448 tie bar guides to replace the one in your photo.

Ee would need to know the exact length of your tie bar, as well as the number of rollers on the bar, to narrow down your replacement options. Thank you!

Quick Learner

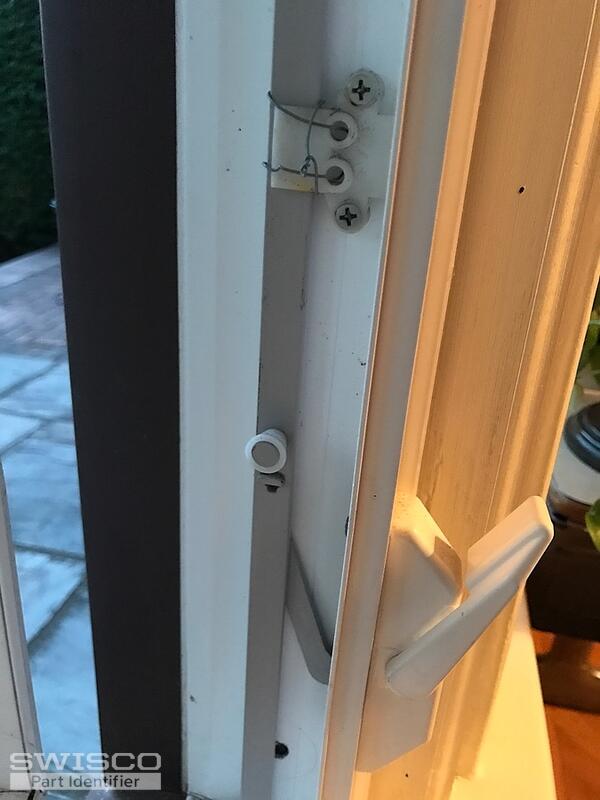

48 inch long bar
With
Three lock points
And the clip has two srcews
But four spaces for screws.

Thanks for your help!
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Unfortunately, these tie bars are only available in 46.9" and 50.9" lengths. The 38-9191 does have three cone rollers like your original tie bar. Take a look and see if this 46-29/32" long replacement may work for your repair.

Alternate image for 38-919
Alternate image for 38-919

Quick Learner
Thank you , you have been very helpful
Can I order
1 of the 38-058R
1 of the 38-919
4 of the 39 -417

And 12 of the spinner screen lock screws if you have them
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Unfortunately, we can not process orders through this thread but you can place an order directly on our website or you are welcome to give our customer service team a call at (888) 991-1929 for assistance.

As for your spring clip, take a look and compare the dimensions of the 70-050 and 70-050B to your part.

Also, your dog is absolutely adorable!
